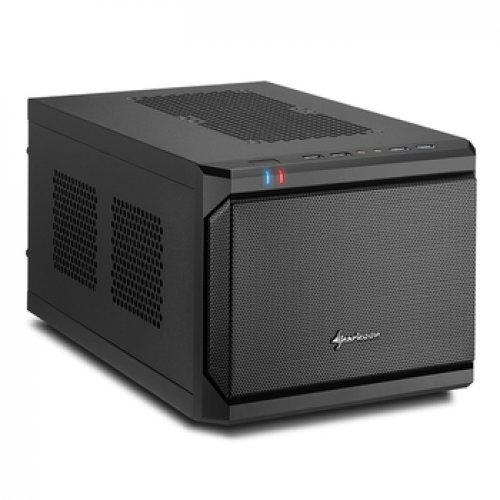

Sharkoon Mini-ITX QB One, Black

Продуктов код: 45991
Компютърна кутия Sharkoon
Компютърна кутия Sharkoon Mini-ITX QB One, Black (умалена снимка 1) Компютърна кутия Sharkoon Mini-ITX QB One, Black (умалена снимка 2) Компютърна кутия Sharkoon Mini-ITX QB One, Black (умалена снимка 3)
Компютърна кутия Sharkoon
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
Sharkoon
Модел:
Mini-ITX QB One
Партиден номер:
2601407
Гаранция:
24 месеца

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

  • Информация за Sharkoon Mini-ITX QB One

  • Ревюта
  • Въпроси и отговори

Compact, Elegant and High Quality

The all-black QB ONE Mini-ITX PC case offers maximum flexibility within the smallest of space. Thanks to its sophisticated layout, the high quality case offers more than enough room for all needed components. With its compact dimensions of only 36.8 x 22.5 x 18.0 cm (L x W x H), it is ideal for mobile and space-saving usage. The elegant design is recommended for use in the living room, for example, as a powerful gaming PC. Thanks to the clever arrangement of the controls and ports, the case can be used both horizontally and vertically. In addition, conventional ATX power supplies can be installed, in which the use of SFX power supplies provide even more space.

Ideal Ventilation Options

A quiet 120 mm fan is pre-installed at the top and, if needed, an additional 120 mm fan can also be mounted. For optional water cooling of the system, the top also has room for a 240 mm radiator. Ideal: All side panels offer generous ventilation openings and are all equipped with dust filters. A clear advantage for built-in graphics cards is the fresh air perfectly supplied via the side openings. In order to further optimize the ventilation, an 80 mm fan can be mounted in the rear.

Modern Connectivity

In the front, two USB 3.0 and two USB 2.0 ports provide easy access for connecting peripheral devices. In addition, the QB ONE has two audio ports for convenient use of a headset.

Versatile Mounting Options

The QB ONE accommodates the installation of a powerful dual-slot graphics card, with a maximum length of up to 31.5 cm. In addition, up to two 3.5" hard drives or two 2.5" HDD/SSDs can be installed. An additional 2.5" HDD/SSD can be mounted in the back of the case, instead of an 80 mm fan. CPU coolers with a maximum height of up to 15 cm can also be used. For easy mounting of a cooler, the case provides an appropriate CPU cooler cutout. Practical thumbscrews simplify the opening as well as the closing of the case.

Compatibility

Mainboard Mini-ITX
Max. Length Graphics Cards 31.5 cm
Max. Height CPU Cooler 15.0 cm
Max. Length Power Supply 14.5 cm
Max. Height Radiator incl. Fan 5.0 cm
Power Supply SFX/ATX (not compatible with modular ATX power supplies)





General:
Form Factor: Mini-ITX
Expansion Slots: 2
Interior Painting:
Side Panel: Metal
Weight: 3.0 kg
Dimensions (L x W x H): 36.8 x 22.5 x 18.0 cm
I/O:
USB 3.0 (Front): 2*
USB 2.0 (Front): 2
Audio (Front):
Drive Bays:
3.5" or 2.5": 2
2.5": 1**
Fan Configuration:
Rear Panel: 1x 80 mm fan (optional)**
Top Panel: 1x 120 mm fan (pre-installed) or 1x 240 mm radiator (optional)





Compatibility:
Mainboard: Mini-ITX
Max. Length Graphics Cards: 31.5 cm
Max. Height CPU Cooler: 15.0 cm
Max. Length Power Supply: 14.5 cm
Max. Height Radiator incl. Fan: 5.0 cm
Power Supply: SFX/ATX (not compatible with modular ATX power supplies)
Package Contents:
QB ONE
Accessory Set
Note:
* internal 19-pin mainboard connector incl. USB 2.0 plug
** Install either 2.5" drive or 80 mm fan in Rear Panel
