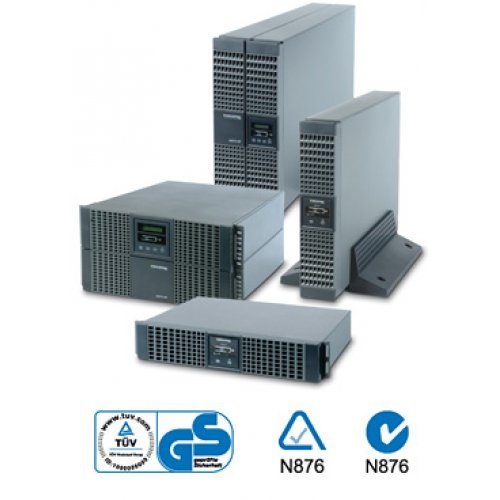

UPS Socomec Netys RT NRT-U1100, 1100VA/800W

UPS Socomec Netys RT NRT-U1100, 1100VA/800W

Name: UPS Socomec Netys RT NRT-U1100, 1100VA/800W
Brand: Socomec
SKU: -
Availability: OutOfStock

Продуктов код: 2434

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос

Производител:

Socomec

Модел:

Партиден номер:

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

UPS Socomec Netys RT NRT-U1100, 1100VA/800W

Datasheet

1,1KVA 230VAC

BATTERY INCLUDED

Connections

1. Mains input socket (IEC 320)
2. Fan
3. Output socket (full power)
4. Telephone / modem line protection
5. EPO (Emergency Power Off) input
6. RS232 interface (JBUS protocol)
7. USB port
8. Input protection
9. Output sockets (IEC 320 - 10 A)
10. Battery extension connector
11. Slot for optional communication boards
12. Battery extension connector
13. Output terminals
14. Input terminals
15. Input switch
16. RJ45 LAN ethernet connector
17. Parallel port connector

Battery extension

Netys RT 1100-3000 VA - Battery extension

Netys RT 5000-11000 VA - Battery extension

Control panel

Control Panel

1. Yellow LED lit. Operation in bypass mode
2. Green LED lit. Mains healthy
3. OFF button
4. Green LED lit. Normal operation (inverter in-line)
5. ON / TEST and buzzer override button
6. LED bar. Depending on the situation, this indicates either the charge level or the capacity of the battery
7. Navigator buttons
8. Alphanumeric LCD display
9 Green LED lit. Status of the load.

Technical data

Power	1100 VA / 800 W	1700 VA / 1200 W	2200 VA / 1600 W	3000 VA / 2100 W	5000 VA / 4500 W	7000 VA / 5400 W	9000 VA / 7200 W	11000 VA / 9000 W
Architecture	t PFC and automatic bypassonline double conversion VFI with inpu
Parallel redundant function	-	-	-	-	1+1	1+1	1+1	1+1

Input
Voltage	230 V (1ph) 160~275 Vac; up to 130 Vac @70% load	230 V (1ph) 181~280 Vac up to 100 Vac @50% load
Frequency	50/60 Hz +/-10% (Auto-Selectable)
Power factor / THDi	>0.98 / <6%	>0.99 / <5%

Output
Voltage	230 V (1ph) selectable 200 / 208 / 220 / 240V - 50 or 60 Hz + /- 2 % (+/- 0.05 Hz in battery mode)
Rendement	up to 91% online mode		up to 92% online mode
Overload capability	up to 105% continuously; 125% x 3 min; 150% x 30 sec		up to 105% continuously; 125% x 5 min; 150% x 30 sec
Output connections	6 x IEC 320-C13 (10 A)	6 x IEC 320-C13 (10 A) + 1 x IEC 320-C20 (16 A)	terminals

Battery
Standard autonomy*	8	12	8	10	8	6	8	6
Voltage	24 Vdc	48 Vdc	48 Vdc	72 Vdc	192 Vdc	192 Vdc	240 Vdc	240 Vdc
Recharge time	< 6h to recover 90% capacity				< 6h to recover 90% capacity

Communication
Mimic panel	LED				LCD 6 languages
RS232 (DB9 port) Jbus protocol	•	•	•	•	•	•	•	•
USB HID protocol	•	•	•	•	-	-	-	-
WEB/SNMP (Ethernet RJ45 port)	option	option	option	option	•	•	•	•
COMM slot	•	•	•	•	•	•	•	•
Dry contacts card	option	option	option	option	option	option	option	option
EPO input (RJ11 port)	•	•	•	•	•	•	•	•
Modem/ADSL surge protection	•	•	•	•	-	-	-	-
Parallel port	-	-	-	-	•	•	•	•

Standards
Performance & topology	EN 62040-3 (VFI-SS-111)
Safety / EMC	EN 62040-1 (TÜV-GS certified) EN 62040-2
Product certifications	CE, TÜV-GS, C-Tick
IP rating	IP20

Environment
Operating ambient temperature	from 0 °C to +40 °C (from 15 °C to 25 °C for best battery life)
Storage temperature range	from -15 °C to +50 °C (from 15 °C to 25 °C for best battery life)
Relative Humidity	0-90% non-condensing
Noise level (ISO 3746)	< 45 dB	< 55 dB

Dimensions & weight
UPS size std (W x D x H)	88.7 x332 x440 mm	88.7 x430 x440 mm	88.7x 430x 440 mm	88.7 x608 x440 mm	177.4 x670 x440 mm	177.4 x670 x440 mm	261.2 x623 x440 mm	261.2 x623 x440 mm
UPS size RACK	2U	2U	2U	2U	2U+2U	2U+2U	3U+3U	3U+3U
UPS weight std	13 kg	21 kg	22 kg	31 kg	15.5+40 kg	16+40 kg	19.5+66 kg	20+66 kg
EBM module size (W x D x H)	88.7 x332 x440 mm	88.7 x430 x440 mm	88. 7 x430 x440 mm	88.7 x608 x440 mm	88.7 x608 x440 mm	88.7 x608 x440 mm	130.6 x623 x440 mm	130.6 x623 x440 mm
EBM module RACK	2U	2U	2U	2U	2U	2U	3U	3U
EBM module weight	16 kg	29 kg	29 kg	43 kg	40 kg	40 kg	66 kg	66 kg

* @ 75% of nominal load.

Parallel redundant operation for business continuity

To achieve the highest level of availability and to power critical utilities, NETYS RT UPS modules above 3 kVA can be configured for 1:1 redundancy.
Redundant operation (1+1) means: the system incorporates one more UPS module than is needed to protect the load ; in the event of a breakdown, it guarantees sufficient power supply capacity to the load by maintaining online protection.
Parallel technology is based on the principle of load sharing, whereby both units are always kept active.
In a redundant configuration, overall system availability is much higher than a conventional UPS system using similar technology. 1+1 redundant configuration does not require additional circuits and can therefore be set up at a later date, simply by using two UPS modules and a collector / manual bypass module which simplifies cabling and maintenance of the UPS installation.
To further streamline the solution, it is also possible to select between operation with separate battery or shared battery, which is extremely useful in the case of applications requiring high levels of autonomy.
