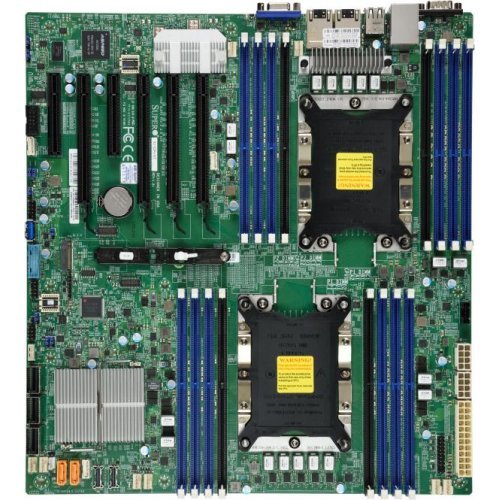

Supermicro X11DPI-N, Dual Socket P (LGA 3647) supported

Все още няма оценка за продукта. Напиши ревю | Задай въпрос
Дънна платка Supermicro
Продуктов код:
26974
Производител:
Supermicro
Модел:
X11DPI-N
Партиден номер:
-
Чипсет:
Intel C621
Socket:
Intel FCLGA3647 - Socket P
Предназначение:
Server/Workstation
Слотове за памет:
8
RAM- поколение:
DDR4 ECC RDIMM / ECC LR-DIMM
Видео изходи:
D-Sub / RGB / VGA
Form Factor:
ATX
Интерфейс:
M.2, PS/2, RJ-45, Serial port (COM port), USB 2.0, USB 3.0

Продуктът не се предлага в момента

  • Информация за Supermicro X11DPI-N

  • Ревюта
  • Въпроси и отговори
Product SKUs
MBD-X11DPi-N
  • X11DPi-N

Physical Stats
Form Factor
  • E-ATX
Dimensions
  • 12" x 13" (30.48cm x 33.02cm)

Processor/Cache
CPU
  • Intel® Xeon® Scalable Processors.
  • Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/s
  • CPU1: Skylake-F CPU supported
Cores / Cache
  • Up to 28 cores

System Memory
Memory Capacity
  • Up to 2TB 3DS ECC RDIMM and DDR4-2666MHz, Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots
Memory Type
  • 2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
DIMM Sizes
  • RDIMM: 64GB
  • LRDIMM: 128GB
  • 3DS LRDIMM: 128GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset
  • Intel® C621
SATA
  • Intel® C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2500
Network Controllers
  • Dual LAN with GbE from C621
Graphics
  • Aspeed AST2500 BMC

Input / Output
SATA
  • 14 SATA3 (6Gbps) port
LAN
  • 2 RJ45 Gigabit Ethernet LAN ports
USB
  • 4 USB 2.0 ports (2 rear + 2 headers),
  • 5 USB 3.0 ports (2 rear + 2 headers + 1 Type A)
Video Output
  • 1 VGA port
Serial Port / Header
  • 2 COM Ports (1 rear, 1 header)
TPM
  • 1 TPM Header
Expansion Slots
PCI-E
  • 4 PCI-E 3.0 x16,
  • 2 PCI-E 3.0 x8
M.2
  • M.2 Interface: PCI-E 3.0 x4
  • Form Factor: 2260, 2280, 22110

System BIOS
BIOS Type
  • AMI UEFI

Management
Software
  • Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog

PC Health Monitoring
Voltage
  • +1.8V, +12V, +3.3V, +5V, +5V standby, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control
FAN
  • 8x 4-pin fan headers (up to 8 fans), PWM fan speed control
Temperature
  • N/A
LED
  • N/A
Other Features
  • Chassis intrusion detection, CPU thermal trip support for processor protection, Node Manager Support, RoHS

Operating Environment
Operating Temperature Range
  • 0°C ~ 50°C (32°F ~ 122°F)
Non-Operating Temperature Range
  • -20°C ~ 60°C (-4°F ~ 140°F)
Operating Relative Humidity Range
  • 10% ~ 85% (non-condensing)
Non-Operating Relative Humidity Range
  • 10% ~ 95% (non-condensing)
