Synology DS1515+, Ultra-performance NAS optimized for intensive tasks and encryption, Intel Atom C2538 Quad Core 2.4 GHz, 2GB DDR3 Expandable to 6GB, max. HDD 5x 6TB (not incl.), GLAN, USB3.0

Продуктов код: 9001
NAS устройства Synology
NAS устройства > Synology DS1515+ NAS устройства > Synology DS1515+ NAS устройства > Synology DS1515+ NAS устройства > Synology DS1515+ NAS устройства > Synology DS1515+ NAS устройства > Synology DS1515+
NAS устройства Synology
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
Synology
Модел:
DS1515+
Партиден номер:
-
Гаранция:
36 месеца

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

  • Описание
  • Ревюта
  • Въпроси и отговори

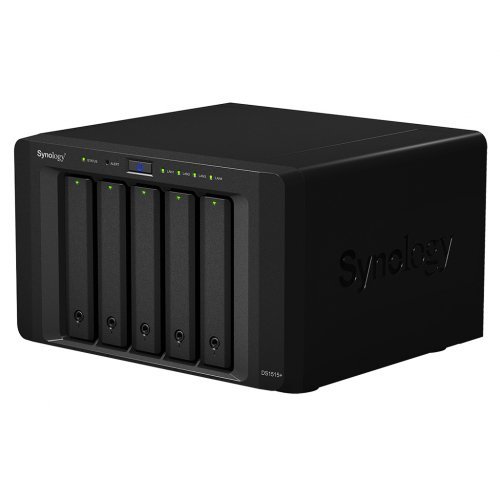

Synology DS1515+

DiskStation DS1515+

Ultra-performance NAS optimized for intensive tasks and encryption





Featuring a quad-core processor, hardware encryption engine, and flawless software integration, DS1515+ is a powerful, expandable 5-bay NAS server that delivers outstanding speed and accelerated data encryption. Easily scalable, the DS1515+ can be equipped with up to 6GB of DDR3 RAM and host up to 90TB of raw capacity with two Synology DX513 units.



Hardware Specifications
CPU
CPU Model INTEL Atom C2538
CPU Frequency Quad Core 2.4 GHz
Floating Point  Yes
Hardware Encryption Engine (AES-NI)  Yes
Memory
System Memory 2 GB DDR3
Memory Module Pre-installed 2 GB X 1
Total Memory Slots 2
Memory Expandable up to 6 GB (2 GB + 4 GB)
Storage
Drive Bay(s) 5
Maximum Drive Bays with Expansion Unit 15
Compatible Drive Type
  • 3.5" SATA(III) / SATA(II) HDD
  • 2.5" SATA(III) / SATA(II) HDD
  • 2.5" SATA(III) / SATA(II) SSD
Maximum Internal Raw Capacity 30 TB (6 TB HDD X 5) (Capacity may vary by RAID types) (See All Supported HDD)
Hot Swappable Drive  Yes
External Ports
USB 3.0 Port 4
eSATA Port 2
File System
Internal Drives EXT4
External Drives
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+
Appearance
Size (Height X Width X Depth) 157 mm X 248 mm X 233 mm
Weight 4.17 kg
Others
RJ-45 1GbE LAN Port 4 (with Link Aggregation / Failover support)
Wake on LAN/WAN  Yes
System Fan 80 mm X 80 mm X 2 pcs
Fan Speed Mode
  • Cool Mode
  • Quiet Mode
Easy Replacement System Fan  Yes
Wireless Support (dongle)  Yes
Noise Level* 22.3 dB(A)
Power Recovery  Yes
Scheduled Power On/Off  Yes
Power Supply Unit / Adapter 250W
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 HZ, Single Phase
Power Consumption* / British Thermal Unit 38.39 W / 130.99 BTU/hr (Access)
21.63 W / 73.80 BTU/hr (HDD Hibernation)
Environment Temperature
Operating Temperature 5°C to 35°C (40°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Relative Humidity 5% to 95% RH
Certification
  • FCC Class B
  • CE Class B
  • BSMI Class B
Warranty 3 Years
Notes
  • Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
  • Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in idle; Two G.R.A.S. Type 40AE microphones, each set up at 1 meter away from the Synology NAS front and rear; Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
DSM Specifications ( See more )
Storage Management
Maximum Single Volume Size 108 TB
Maximum Internal Volume Number 512
Maximum iSCSI Target Number 32
Maximum iSCSI LUN 256
iSCSI LUN Clone/Snapshot, Windows ODX  Yes
Supported RAID Type
  • Synology Hybrid RAID
  • Basic
  • JBOD
  • RAID 0
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
RAID Migration
  • Basic to RAID 1
  • Basic to RAID 5
  • RAID 1 to RAID 5
  • RAID 5 to RAID 6
Volume Expansion with Larger HDDs
  • Synology Hybrid RAID
  • RAID 1
  • RAID 5
  • RAID 6
Volume Expansion by Adding a HDD
  • Synology Hybrid RAID
  • RAID 5
  • RAID 6
  • JBOD
Global Hot Spare Supported RAID Type
  • Synology Hybrid RAID
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
SSD Support
SSD Read/Write Cache (White Paper)  Yes
SSD TRIM  Yes
File Sharing Capacity
Maximum User Accounts 2048
Maximum Groups 256
Maximum Shared Folder 512
Maximum Shared Folder Sync Tasks 8
Maximum Concurrent CIFS/AFP/FTP Connections 512
Windows Access Control List (ACL) Integration  Yes
NFS Kerberos Authentication  Yes
High Availability Manager  Yes
Log Center  Yes
Syslog Events per Second 800
Virtualization
VMware vSphere 5 with VAAI  Yes
Windows Server 2012  Yes
Windows Server 2012 R2  Yes
Citrix Ready  Yes
Notes Performance figures could vary on different environments.
Add-on Packages (See more)
Antivirus Essential  Yes
Antivirus by McAfee (Trial)  Yes
Audio Station  Yes
Central Management System  Yes
Cloud Station  Yes
Maximum Concurrent File Transfers 512
Cloud Sync  Yes
Directory Server  Yes
DNS Server  Yes
Download Station  Yes
Maximum Concurrent Download Tasks 80
Glacier Backup  Yes
HiDrive Backup  Yes
iTunes Server  Yes
Java Manager  Yes
Mail Server  Yes
Mail Station  Yes
Media Server  Yes
DLNA Certification  Yes
Note Station  Yes
Photo Station  Yes
RADIUS Server  Yes
Surveillance Station  Yes
Maximum IP cam (Licenses required) 40 (including 2 Free License) (See All Supported IP Cameras)
Total FPS (H.264)* 1200 FPS @ 720p (1280x800)
480 FPS @ 1080p (1920×1080)
250 FPS @ 3M (2048x1536)
200 FPS @ 5M (2591x1944)
Total FPS (MJPEG)* 300 FPS @ 720p (1280x800)
150 FPS @ 1080p (1920×1080)
100 FPS @ 3M (2048x1536)
60 FPS @ 5M (2591x1944)
Time Backup  Yes
Maximum Task Number 8
Video Station  Yes
Video Transcoding Group 1 (See more)
VPN Server  Yes
Maximum Connections 20
Notes Surveillance Station throughput is tested with Axis P1347 (1280X720); FPS set to 30 at every channel.
Environment & Packaging
Environment RoHS Compliant
Packaging Content
  • Main Unit X 1
  • Welcome Note X 1
  • Accessory Pack X 1
  • AC Power Cord X 1
  • RJ-45 LAN Cable X 2
Optional Accessories
  • Remote
  • Camera License Pack
  • 4GB DDR3 RAM Module
  • Expansion Unit: DX213 X 2
  • Expansion Unit: DX513 X 2
  • VS240HD
