Name: Synology DS415+, Quad-core 4-bay NAS optimized for intensive tasks and encryption, Intel Atom C2538 Quad Core 2.4GHz CPU, 2GB RAM, 2x Gbit LAN, max. HDD 4x 6TB (not incl.), RAID 0,1,5,6,10, USB 3.0
Brand: Synology
SKU: DS415+
Availability: OutOfStock

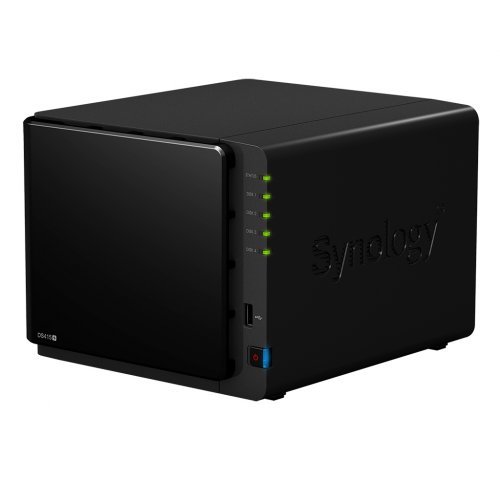

Synology DS415+

Datasheet Quick Installation Guide

DiskStation DS415+

Quad-core 4-bay NAS optimized for intensive tasks and encryption

Designed for small and medium-sized businesses, DS415+ delivers outstanding performance, accelerated hardware encryption, and ample storage capacity — satisfying the growing need for both speed and security.

High-speed data transfer and hardware encryption engine

Equipped with a quad-core processor and AES-NI hardware encryption engine, DS415+ delivers blazingly fast file transfer speeds – even when handling encrypted data. With Link Aggregation enabled, DS415+ delivers average reading and writing speeds of 228 MB/s and 233 MB/s respectively¹, while encrypted file transfers retain an astoundingly similar level of performance, exceeding 232 MB/s reading and 206 MB/s writing. That means you can safeguard data without sacrificing performance.

Dual LAN ports for failover and Link Aggregation support

Equipped with two Ethernet ports featuring failover and Link Aggregation support, DS415+ ensures continual network uptime even if LAN connection malfunction occurs on one port, reducing the chance of service disruption and costly downtime. Link Aggregation improves connection speeds beyond the limits of a single network cable or port.

Easy installation, hassle-free maintenance

Easy installation and hot-swappable hard drive support ensures easy maintenance and continuous service uptime should a hard drive need replacement. In addition, DS415+ incorporates a passive cooling design to reduce dependency on the dedicated processor cooling fan, thus mitigating any critical point of failure. When the system detects a fan failure, the built-in redundancy mechanism ensures continuous operation until the replacement fan arrives.

USB 3.0 and eSATA ensure speedy transfers to external storage

DS415+ boasts USB 3.0, USB 2.0, and eSATA ports to connect to various kinds of external storage devices, while ensuring fast and efficient file transfer speeds. Support for USB 3.0 offers transfer speeds of up to 5 Gbps (about 10 times faster than USB 2.0), meaning it takes less time to transfer data to external hard drives, while also consuming less power.

Award winning OS - DiskStation Manager

Synology DiskStation Manager (DSM) is a sleek, browser-based operating system running on every DiskStation and RackStation, which makes managing your Synology NAS a breeze. Featuring an intuitive user interface, DSM makes accessing and sharing your data smarter and simpler. Synology's Package Center lets you download and install useful add-on packages designed specifically for individual or business needs, meaning you can enjoy more entertainment in your life or better productivity at work. Learn more

Seamless storage solution for virtualization environments

DS415+ provides seamless storage solutions for virtualization environments, including VMware, Citrix, and Microsoft Hyper-V. With VMware vSphere^® 5 & VAAI integration, DS415+ helps offload specific storage operations and optimizes computation power in VMware environments. Windows ODX support speeds up data manipulation as the data transfer is offloaded. iSCSI also lets SMB users consolidate storage into data center storage arrays while providing hosts with the illusion of locally-attached disks. Learn more

Fit into business environments easily

With the support of Windows AD, LDAP, and Domain Trust, DS415+ enables seamless account integration. The User Home feature can automatically create a"home" folder for every user account to minimize the administrator's effort in repeatedly creating"home" folders for all accounts. Windows ACL support on DS415+ allows IT administrators to fine tune access controls and set up privileges to files and folders on DS415+ through the familiar Windows user interface. With compatibility for major protocols, DS415+ can eliminate server configuration overhead and enhance IT administrators’ efficiency. Learn more

Optimize storage management

With Synology's Storage Manager, DS415+ allows for flexible storage deployment and utilization. You can optimize RAID configuration with Synology Hybrid RAID (SHR) while providing redundant data protection. Other features such as multiple volumes on single RAID and Global Hot Spare also greatly enhance management efficiency and fit deployment of any kind. Learn more

The most compatible sharing

Enjoy seamless files sharing across Windows^®, Mac^®, and Linux^® platforms as DS415+ offers comprehensive network protocol support including FTP, SMB2, AFP, NFS and WebDAV. With Windows AD and LDAP integration, DS415+ can fit effortlessly into any existing network environment - there is no need for IT administrators to maintain two sets of credentials. You also won't worry about missing files with the Recycle Bin feature which is supported on AFP, CIFS, File Station, and WebDAV. All files deleted in a shared folder will be automatically moved into the Recycle Bin. Learn more

Effective backup solution

Synology DS415+ can serve as a centralized backup target. PC users can back up their data to the DS415+ using Windows Backup, while Mac OS X users enjoy native Apple^® Time Machine integration. You can also back up data and applications from your DS415+ to another DiskStation, rsync servers, external drives, or even Amazon^® S3 and Glacier cloud service."Backup & Replication" allows you to schedule backup tasks and restore the server to any particular point in time, while minimizing storage consumption and processing time by saving only the specific data block that has been changed between versions. With Cloud Station, files on your PC can be backed up to DS415+. Whenever you modify a file, the changes are backed up on DS415+ automatically. Learn more

All-in-One server

Offering rich office applications, DS415+ can serve as your multi-function server. With add-on packages Mail Server and Mail Station, DS415+ can become a dedicated mail server, and let you enjoy complete webmail service. DS415+ can become a VPN server or VPN client. The comprehensive VPN service let you access resources remotely while maintaining security protocols. As a printer server, DS415+ minimizes businesses' operating costs by sharing printing resources throughout the office. Administration and network tools, such as DNS Server, Directory Server, RADIUS Server, DHCP Server, and Log Center help you manage IT deployment and policies more efficiently. Maximize resource utilization with DS415+! Learn more

Ensuring business continuity

Uninterrupted availability is a critical goal for all businesses. DS415+ supports Synology High Availability (SHA) technology which combines an active and passive server into one cluster, the former always mirrored to the latter. The Heartbeat mechanism detects regular "heartbeats" between the two servers. If the main server encounters unexpected downtime, the passive server immediately takes over. With multiple LAN ports, DS415+ also ensures redundancy in the event of unexpected network failure. Learn more

Increase business productivity with cloud solutions

With comprehensive cloud solutions, DS415+ lets you create your own cloud easily. Cloud Station is the perfect package to sync files across multiple devices with the benefit of better privacy for important data. Files can be edited in offline mode and later synced to Cloud Station, which retains up to 32 versions to avoid file overwriting. With mobile app DS cloud, any change made to a file is automatically synced to your smartphones and tablets. For distributed enterprise, Synology's 2-way sync between different DiskStations ensures employees at different locations share the same information in real-time. IT administrators can customize synchronization rules, such as avoiding syncing large files to optimize bandwidth usage. Learn more

Secure your data

DS415+ provides share-level AES 256-bit encryption to block off unauthorized access attempts. Once you create and encrypt a shared folder, people without the encryption key will not be able to use the encrypted data even if they remove the hard drives from your DS415+ and mount it on their device. 2-Step verification gives an extra layer of protection as 6-digit one-time code sending to your mobile device is required for login. In addition, DS415+ provides other security add-ons, such as IP block & allow list, Antivirus packages, firewall, and DoS attack prevention. These enhancements ensures a secure DSM environment. Learn more

Eco-friendly NAS server

All Synology NAS is designed with energy efficiency in mind. DS415+ only consumes 14.78W in HDD Hibernation and 32.64W in access. The support of Wake on LAN/WAN and scheduled power on and off can further reduce power consumption and operation cost. Synology acknowledges the responsibility as a global citizen, so all Synology products are produced with RoHS compliant parts and packed with recyclable packing materials.

* The performance figures vary on different environments.

Hardware Specifications
CPU
CPU Model	INTEL Atom C2538
CPU Frequency	Quad Core 2.4 GHz
Floating Point
Hardware Encryption Acceleration (AES-NI)
Memory
System Memory	2 GB DDR3
Storage
Drive Bay(s)	4
Compatible Drive Type	3.5" SATA(III) / SATA(II) HDD 2.5" SATA(III) / SATA(II) HDD 2.5" SATA(III) / SATA(II) SSD
Maximum Internal Raw Capacity	24 TB (6 TB HDD X 4) (Capacity may vary by RAID types) (See All Supported HDD)
Hot Swappable Drive
External Ports
USB 2.0 Port	1
USB 3.0 Port	2
eSATA Port	1
File System
Internal Drives	EXT4
External Drives	EXT4 EXT3 FAT NTFS HFS+
Appearance
Size (Height X Width X Depth)	165 mm X 203 mm X 233.2 mm
Weight	2.05 kg
Others
RJ-45 1GbE LAN Port	2 (with Link Aggregation / Failover support)
Wake on LAN/WAN
System Fan	92 mm X 92 mm X 2 pcs
Wireless Support (dongle)
Noise Level*	20.2 dB(A)
Power Recovery
Scheduled Power On/Off
Power Supply Unit / Adapter	100W
AC Input Power Voltage	100V to 240V AC
Power Frequency	50/60 HZ, Single Phase
Power Consumption*	32.64W (Access) 14.78W (HDD Hibernation)
Temperature
Operating Temperature	5°C to 35°C (40°F to 95°F)
Storage Temperature	-20°C to 60°C (-5°F to 140°F)
Relative Humidity	5% to 95% RH
Certification	FCC Class B CE Class B BSMI Class B
Warranty	2 Years
Notes	Power consumption is measured when fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
DSM Specifications ( See more )
Storage Management
Maximum Single Volume Size	108 TB
Maximum Internal Volume Number	512
Maximum iSCSI Target Number	32
Maximum iSCSI LUN	256
iSCSI LUN Clone/Snapshot, Windows ODX
Supported RAID Type	Synology Hybrid RAID Basic JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10
RAID Migration	Basic to RAID 1 Basic to RAID 5 RAID 1 to RAID 5 RAID 5 to RAID 6
Volume Expansion with Larger HDDs	Synology Hybrid RAID RAID 1 RAID 5 RAID 6
Volume Expansion by Adding a HDD	Synology Hybrid RAID RAID 5 JBOD
Global Hot Spare Supported RAID Type	Synology Hybrid RAID RAID 1 RAID 5
SSD Support
SSD Read/Write Cache (White Paper)
SSD TRIM
File Sharing Capacity
Maximum User Accounts	2048
Maximum Groups	256
Maximum Shared Folder	512
Maximum Shared Folder Sync Tasks	8
Maximum Concurrent CIFS/AFP/FTP Connections	512
Windows Access Control List (ACL) Integration
NFS Kerberos Authentication
High Availability Manager
Log Center
Syslog Events per Second	800
Virtualization
VMware vSphere 5 with VAAI
Windows Server 2012
Windows Server 2012 R2
Citrix Ready
Add-on Packages (See more)
Antivirus Essential
Antivirus by McAfee (Trial)
Audio Station
Central Management System
Cloud Station
Maximum Concurrent File Transfers	512
Cloud Sync
Directory Server
DNS Server
Download Station
Maximum Concurrent Download Tasks	80
Glacier Backup
HiDrive Backup
iTunes Server
Java Manager
Mail Server
Mail Station
Media Server
DLNA Certification
Photo Station
RADIUS Server
Surveillance Station
Maximum IP cam (Licenses required)	40 (including 2 Free License) (See All Supported IP Cameras)
Total FPS (H.264)*	1200 FPS @ 720p (1280x800) 480 FPS @ 1080p (1920×1080) 250 FPS @ 3M (2048x1536) 200 FPS @ 5M (2591x1944)
Total FPS (MJPEG)*	300 FPS @ 720p (1280x800) 150 FPS @ 1080p (1920×1080) 100 FPS @ 3M (2048x1536) 60 FPS @ 5M (2591x1944)
Time Backup
Maximum Task Number	8
Video Station
Video Transcoding	Group 1 (See more)
VPN Server
Maximum Connections	20
Notes	Surveillance Station throughput is tested with Axis P1347 (1280X720); FPS set to 30 at every channel.
Environment & Packaging
Environment	RoHS Compliant
Packaging Content	Main Unit X 1 Welcome Note X 1 Accessory Pack X 1 AC Power Adapter X 1 AC Power Cord X 1 RJ-45 LAN Cable X 2
Optional Accessories	Remote Camera License Pack VS240HD
