180/96-bay Synology NAS server for Large Scale Business(12 bays on base, expandable to 180/96 with 7x RX1217sas/RX2417sas), Rackmount SA3400

Продуктов код: 55720
NAS устройство Synology

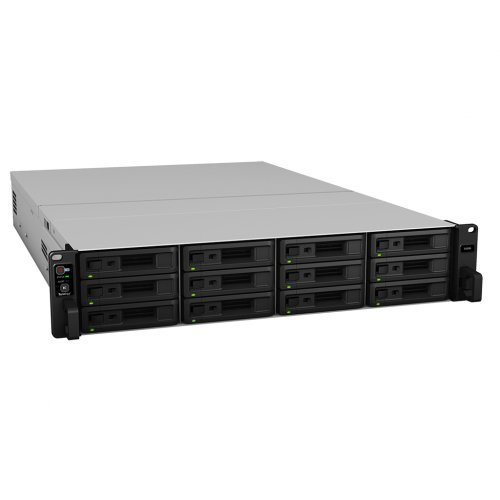

NAS устройство Synology SA3600 NAS устройство Synology SA3600 NAS устройство Synology SA3600
NAS устройство Synology
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Партиден номер:
60 месеца
Цена с включен ДДС:
15678.76 лв.
Гаранционен срок 60 месеца

Гаранционните условия са определени от производителя

Възможност за лизинг

Кандидатствай бързо и лесно онлайн

Безплатна доставка

До всяко населено място в страната в рамките на 1-3 работни дни

Внос по заявка

Стандартният срок за внос по заявка е 15-90 дни след 50% авансово плащане.

Вземете на лизинг с UniCredit Consumer Financing
Купи на лизинг
По 1 528.68 лв. за 12 мес. Лизингови схеми
Лизингови схеми
Кандидатствайте за лизинг онлайн

1 Добавете желаните продукти в количката си и преминете към страницата за изпращане на поръчката;

2 За начин на плащане изберете "На лизинг с..." и предпочитания от вас лизингодател;

3 Попълнете своите данни и изберете желания срок за лизинг във формата за кандидатстване;

4 Изпратете поръчката си, след което очаквайте одобрение от лизингодателя по телефон или имейл;

Срок UniCredit Consumer Financing TBI Pay
35490.7 лв.
ГПР: 34.52
5461.43 лв.
ГПР: 25.6
62847.26 лв.
ГПР: 34.49
2848.31 лв.
ГПР: 31.31
91967.68 лв.
ГПР: 34.54
121528.68 лв.
ГПР: 34.53
1541.74 лв.
ГПР: 34.67
151266.84 лв.
ГПР: 34.52
181092.81 лв.
ГПР: 34.51
1106.22 лв.
ГПР: 35.31
21968.95 лв.
ГПР: 34.53
24876.44 лв.
ГПР: 34.52
888.46 лв.
ГПР: 35.23
27805.89 лв.
ГПР: 34.49
30749.44 лв.
ГПР: 34.55
757.81 лв.
ГПР: 34.88
33703.98 лв.
ГПР: 34.53
36666.35 лв.
ГПР: 34.49
670.7 лв.
ГПР: 34.43
  • Информация за продукта

  • Ревюта
  • Въпроси и отговори
  • Параметри180/96-bay Synology NAS server for Large Scale Business(12 bays on base, expandable to 180/96 with 7x RX1217sas/RX2417sas), Rackmount SA3400
  • Други:  Intel Xeon D-1567 12-core CPU, 16 GB DDR4 ECC RAM(up to 128GB), 4x 1Gb + 2x 10Gb LAN, max. internal HDD 12x 16TB (not incl.),RAID 0,1,5,6,10, hotswap HDD, redundand PSU, SSD cache, Btrfs, File/Mail/FTP/Print/DHCP/Directory/VPN/Syslog server,web station


Технически данни


CPU Model

Intel Xeon D-1567

CPU Architecture


CPU Frequency

12 Core 2.1 (base) / 2.7 (turbo) GHz

Hardware Encryption Engine (AES-NI)



System Memory


Memory Module Pre-installed

16 GB (16 GB x 1)

Total Memory Slots


Memory Expandable up to

128 GB (32 GB x 4)


· Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.

· Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.


Drive Bays


Maximum Drive Bays with Expansion Unit

96 (RX1217sas) / 180 (RX2417sas)

Compatible Drive Type* (See all supported drives)

· 3.5" SAS HDD

· 2.5" SAS HDD

· 2.5" SAS SSD

· 3.5" SATA HDD

· 2.5" SATA HDD

· 2.5" SATA SSD

Maximum Internal Raw Capacity

192 TB (16 TB drive x 12) (Capacity may vary by RAID types)

Maximum Raw Capacity with Expansion Units

1,536 TB (192 TB + 16 TB drive x 84) (Capacity may vary by RAID types)

Maximum Single Volume Size*

· 200 TB (32 GB RAM required, for RAID 5 or RAID 6 groups only)

· 108 TB

Hot Swappable Drive



· "Compatible drive type" indicates the drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

· The maximum raw capacity is not limited by the maximum single volume size. Synology NAS models may utilize capacities over the maximum single volume size as long as each volume created is below the limit. (Learn more)

· Each internal volume (may consist of multiple drives) is expandble up to 108TB (with memory less than 32GB) or 200TB (with memory equal to or greater than 32GB).

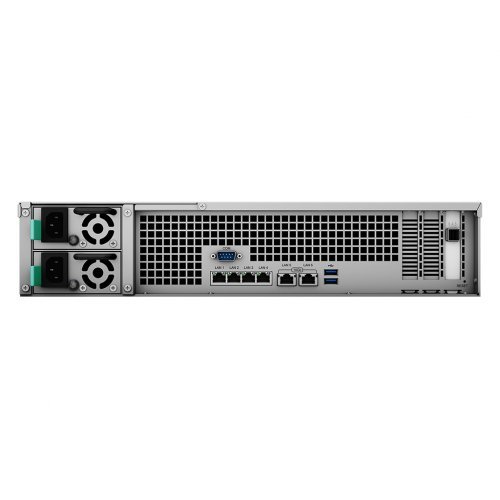

External Ports

RJ-45 1GbE LAN Port

4 (with Link Aggregation / Failover support)

RJ-45 10GbE LAN Port

2 (with Link Aggregation / Failover support)

USB 3.0 Port


Expansion Port



PCIe Expansion

2 x Gen3 x8 slots (x8 link)

Add-In-Card Support

PCIe Network Interface Card (Learn more)

File System

Internal Drives

· Btrfs

· EXT4

External Drives

· Btrfs

· EXT4

· EXT3



· HFS+

· exFAT*


exFAT Access is purchased separately in Package Center.


Form Factor (RU)


Size (Height x Width x Depth)

88 mm x 482 mm x 724 mm


14.5 kg

Rack Installation Support*

4-post 19" rack (Synology Rail Kit - RKS1317)


The rail kit is sold separately


System Fan

80 mm x 80 mm x 4 pcs

Fan Speed Mode

· Full-Speed Mode

· Cool Mode

· Quiet Mode

Easy Replacement System Fan


Power Recovery


Noise Level*

49.8 dB(A)

Scheduled Power On / Off


Wake on LAN / WAN


Power Supply Unit / Adapter

500 W

Redundant Power Supply


AC Input Power Voltage

100 V to 240 V AC

Power Frequency

50/60 Hz, Single Phase

Power Consumption*

156.23 W (Access)
72.37 W (HDD Hibernation)

British Thermal Unit

533.08 BTU/hr (Access)
246.94 BTU/hr (HDD Hibernation)


· Power consumption is measured when it's fully loaded with Western Digital 1TB WD10EFRX hard drive(s).

· Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%


Operating Temperature

0°C to 35°C (32°F to 95°F)

Storage Temperature

-20°C to 60°C (-5°F to 140°F)

Relative Humidity

5% to 95% RH






· KC


· CE



5 Years


The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)


RoHS Compliant

Packaging Content

· Main Unit X 1

· Accessory Pack X 1

· AC Power Cord X 2

· Quick Installation Guide X 1

Optional Accessories

· D4RD-2666-16G DDR4 ECC RDIMM*

· D4RD-2666-32G DDR4 ECC RDIMM

· Surveillance Device License Pack

· Expansion Unit: RX1217sas X 7

· Expansion Unit: RX2417sas X 7

· Synology Ethernet Adapter E10G17-F2

· Synology Ethernet Adapter E10G18-T1

· Synology Ethernet Adapter E10G18-T2

· Synology Rail Kit Sliding - RKS1317

· VS360HD

· VS960HD


It is required to use D4RD-2666-16G with identical memory modules of the same capacity and frequency. For more information, visit here.

DSM Specifications

Storage Management

Maximum Internal Volume Number


Maximum iSCSI Target Number


Maximum iSCSI LUN


iSCSI LUN Clone/Snapshot, Windows ODX


SSD Read / Write Cache (White Paper)




RAID Group


Supported RAID Type


· Basic


· RAID 0

· RAID 1

· RAID 5

· RAID 6

· RAID 10

RAID Migration

· Basic to RAID 1

· Basic to RAID 5

· RAID 1 to RAID 5

· RAID 5 to RAID 6

Volume Expansion with Larger HDDs


· RAID 1

· RAID 5

· RAID 6

· RAID 10

Volume Expansion by Adding a HDD



· RAID 5

· RAID 6

Global Hot Spare Supported RAID Type


· RAID 1

· RAID 5

· RAID 6

· RAID 10

File Services

File Protocol


Maximum Concurrent CIFS/AFP/FTP Connections


Maximum Concurrent CIFS/AFP/FTP Connections (with RAM expansion)


Windows Access Control List (ACL) Integration


NFS Kerberos Authentication


Account & Shared Folder

Maximum Local User Accounts


Maximum Local Groups


Maximum Shared Folder


Maximum Shared Folder Sync Tasks


High Availability

Synology High Availability


Log Center

Syslog Events per Second



VMware vSphere 6 with VAAI


Windows Server 2016


Citrix Ready




General Specifications

Networking Protocols

SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV

Supported Browsers

· Chrome

· Firefox

· Edge

· Internet Explorer 10 onwards

· Safari 10 onwards

· Safari (iOS 10 onwards)

· Chrome (Android 6.0 onwards)

Supported Language

English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文

Add-on Packages view the complete package list

Antivirus by McAfee (Trial)


Central Management System


Synology Chat

Maximum Users



· The number of concurrent HTTP connections for Synology Chat was configured to the maximum.

· CPU and RAM usage were both under 80% when the number of maximum users was reached.

· For tested models with expandable memory, the maximum amount of RAM was installed.

Document Viewer


Download Station

Maximum Concurrent Download Tasks


exFAT Access (Optional)


Synology MailPlus / MailPlus Server

Free Email Accounts

5 (Licenses required for additional accounts)

Maximum Number of Concurrent Users


Maximum Server Performance

5,040,000 emails per day, approx. 151 GB


· The CPU and RAM usage were both under 80% when testing the maximum number of concurrent users.

· For tested models with expandable memory, the maximum amount of RAM was installed.

· Read-write SSD cache was enabled in 5-bay (and above) NAS models with 2 SSDs units installed.

· The performance of the mail system will slightly decrease in high-availability mode due to data synchronization between the two servers.

· Functions that were enabled in all of the tests above: anti-spam, anti-virus, DNSBL, greylist, content scan, full-text search (English only).

Media Server

DLNA Compliance



Facial Recognition


Subject Recognition


Auto Color & Rotate


Moments Select




Snapshot Replication

Maximum Snapshots per Shared Folder


Maximum of System Snapshots


Surveillance Station

Maximum IP cam (Licenses required)

128 (including 2 Free License) (See All Supported IP Cameras)

Total FPS (H.264)*

3840 FPS @ 720p (1280x720)
2800 FPS @ 1080p (1920x1080)
1200 FPS @ 3M (2048x1536)
700 FPS @ 5M (2591x1944)
500 FPS @ 4K (3840x2160)

Total FPS (H.265)*

3840 FPS @ 720p (1280x720)
3840 FPS @ 1080p (1920x1080)
2400 FPS @ 3M (2048x1536)
1300 FPS @ 5M (2591x1944)
800 FPS @ 4K (3840x2160)

Total FPS (MJPEG)*

1000 FPS @ 720p (1280x720)
650 FPS @ 1080p (1920x1080)
490 FPS @ 3M (2048x1536)
320 FPS @ 5M (2591x1944)


Surveillance Station throughput is tested with Axis network camera, using continuous recording with live view from Surveillance Station and motion detection by camera. Live view and recording are sharing the same stream from the camera.

Synology Drive

Recommended Number of Hosted Files

5,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)

Recommended Number of Concurrent Sync Clients

2,000 (the number of connections that can be maintained when the recommended number of hosted files was reached)


· For tested models with expandable memory, the maximum amount of RAM was installed.

· Exceeding the limits above may result in longer response time in file operations.

· Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.

Synology Office

Maximum Users



· Multiple files were opened for testing and each file was edited by 30 users simultaneously.

· CPU and RAM usage were both under 80% when the number of maximum users was reached.

· For tested models with expandable memory, the maximum amount of RAM was installed.

· Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM

Video Station

Video Transcoding

Group 1 - Type 1 (See more)

Maximum Transcoding Channel Number

1 channel, 30 FPS @ 1080p(1920×1080), H.264 (AVC)/MPEG-4 Part 2 (XVID, DIVX5)/MPEG-2/VC-1

Virtual Machine Manager

Recommended Virtual Machine Instances

24 (Learn more)

Recommended Virtual DSM Number (Licenses required)

24 (including 1 Free License)


The specifications vary depending on system configuration and memory size.

VPN Server

Maximum Connections
