Synology VS960HD

VisualStation VS960HD

Working with Synology NAS, VS960HD is an ultra-compact companion system offering features of Surveillance Station including live view and management tools.

PC-less Surveillance Management Solution

VisualStation is the perfect alternative when facing limited space or budget constraints. Just plug in an Ethernet cable, connect to an LCD-monitor or TV, log in to Synology Surveillance Station — and you have a monitoring station for yourself.

Dual HDMI
4K and 1080p

Energy efficiency
7.2W

Extreme performance
96 channels/720p/10FPS

Compact design
VESA support

Robust and certified hardware for harsh environments

Free from mechanical moving parts, VisualStation is more resistant against vibration and hardware failure. Its solid outer case and optimized design allow VisualStation to run within industrial temperature ranges, from -20˚C to 50˚C. In addition, VisualStation is EN45545 and EN50155 certified.

Ideal for mobile environments.

Ideal for TV wall setup

TV wall is ideal for monitoring a massive amount of cameras at a glance, and it is easy to set up with VisualStation.

Dual screen display

By supporting dual monitor video outputs to allow users to switch between mirrored and extended desktop modes, VisualStation provides a cost-efficient, easy to setup, and scalable TV wall solution.

Minimum device size

The whole system fits in a palm-sized enclosure and can be easily attached to a wall or the back of a screen with a VESA compatible mount.

Convenient live view and playback interface

VS960HD provides a user-friendly interface and powerful features from Surveillance Station.

Intuitive interface for easy operation

For both beginner and advanced users, you can enjoy versatile features by operating VisualStation directly via an intuitive interface using a USB mouse, keyboard, or even a joystick¹.

Support most Surveillance Station features

Both beginner and advanced userscan enjoy versatile features by operating VisualStation directly via an intuitive interface using a USB mouse, keyboard, or joystick².

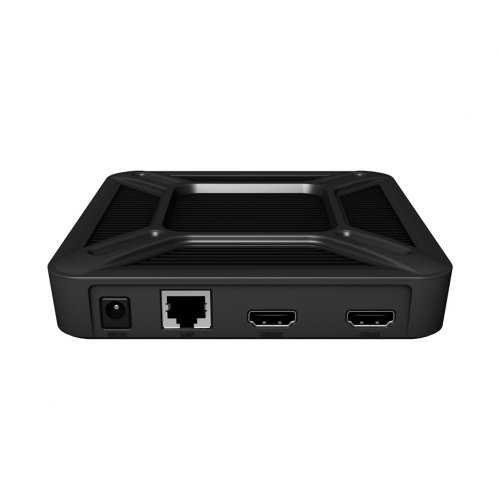

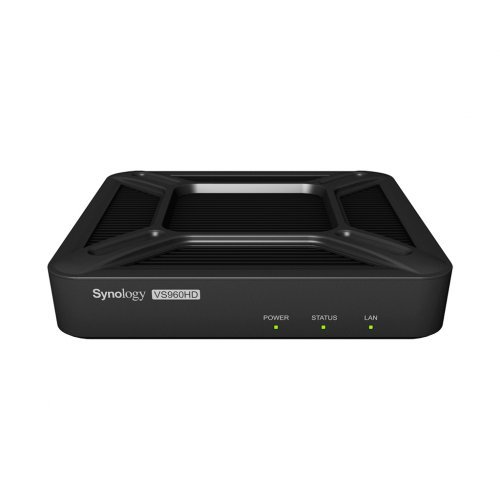

1Power indicator
2Status indicator
3LAN indicator

4Power port
51GbE RJ-45 port
6HDMI output 2 (1080p)

7HDMI output 1 (4K)
8Audio in/out
9Power button

10USB 3.0 port
11Reset button
12USB 2.0 port

Notes:
_____

To view a list of currently supported joystick models, please click here.
Some of the features of Surveillance Station are currently not available on the VS960HD. Learn more

Hardware Specifications
Video Outputs
Video Output	HDMI X 2
Supported Video Resolution	HDMI 1: 4K (3840 x 2160, 30Hz/60Hz); HDMI 2: 1080p (1920 x 1080, 60Hz)
Audio Input	3.5 mm Stereo Audio Jack x 1
Audio Output	3.5 mm Stereo Audio Jack x 1
RJ-45 1GbE LAN Port	1
USB 2.0 Port	2
USB 3.0 Port	1
Appearance
Size	32 mm x 130 mm x 130 mm
Weight	0.38 kg
Others
Power Supply Unit / Adapter	36W
AC Input Power Voltage	100V to 240V AC
Dynamic DC Input	7-24V
Power Frequency	50/60 Hz, Single Phase
Power Consumption*	7.2W (96ch full-load) 4.9W (Power on Idle)
Environment
Operating Temperature	-20°C to 50°C (-4°F to 122°F)
Adapter Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Relative Humidity	5% to 95% RH
Certification	FCC CE BSMI EN50155 EN45545 EAC RCM
Warranty	3 Year Hardware Warranty
Software Specifications
Maximum IP cam	96
Total FPS (H.264)*	960 FPS @ 720p (1280x720), 96 Channels 580 FPS @ 1080p (1920×1080), 58 Channels 440 FPS @ 3M (2048x1536), 44 Channels 250 FPS @ 5M (2591x1944), 25 Channels 140 FPS @ 4K (3840 x 2160), 14 Channels
Total FPS (H.265)*	900 FPS @ 720p (1280x720), 90 Channels 640 FPS @ 1080p (1920×1080), 64 Channels 430 FPS @ 3M (2048x1536), 43 Channels 250 FPS @ 5M (2591x1944), 25 Channels 150 FPS @ 4K (3840 x 2160), 15 Channels
Total FPS (MJPEG)*	400 FPS @ 720p (1280x720), 40 Channels 200 FPS @ 1080p (1920×1080), 20 Channels 140 FPS @ 3M (2048x1536), 14 Channels 80 FPS @ 5M (2591x1944), 8 Channel
Video Codec	MJPEG MPEG-4 H.264 H.265
Audio Codec	PCM G711 G726 AMR AAC
Live View / Recording Playback
Snapshot Support
eMap Support
PTZ Control / Patrol
Log Viewer
Notes	VisualStation throughput is tested with Axis P1347 (H.264@1280x720@10FPS). The channel numbers indicated in the Total FPS column of each resolution is the maximum number VS960HD supports for live view display. The FPS of single channel for codec H.264 or H.265 can support up to 60 FPS.
Environment & Packaging
Environment	RoHS Compliant
Packaging Content	Main Unit X 1 Quick Installation Guide X 1 AC Power Adapter X 1 RJ-45 LAN Cable X 1 VESA mounting kit
