Learn more about TP-LINK PoE technology >

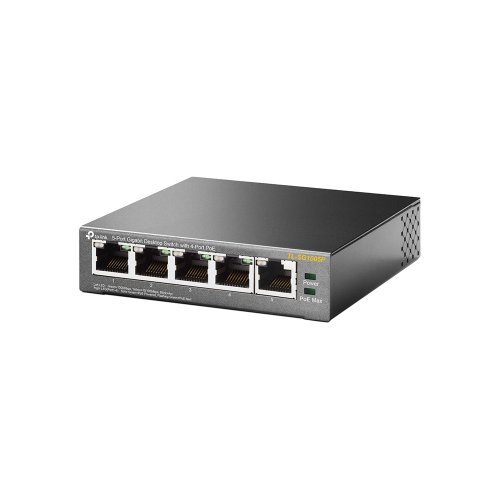

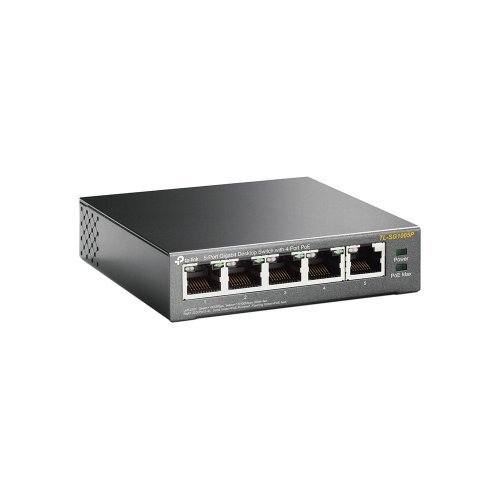

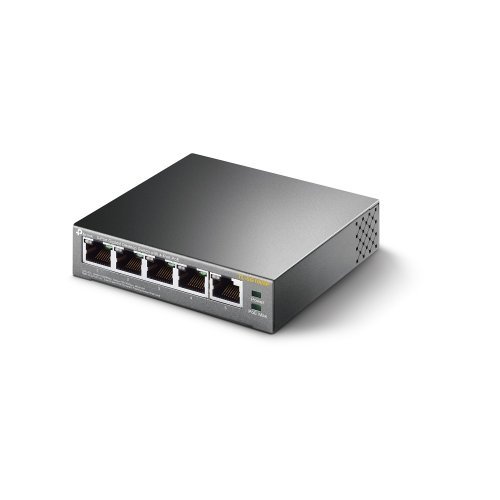

TL-SG1005P is a 5 10/100/1000Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
Overload Arrangement
TL-SG1005P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 56W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
Port Priority Function
Priority (Port 1=Port 2=Port 3>Port 4): This function will help to ensure the normal operation of the system, it means Port 4 will be cut off when all total PoE PDs power consumption exceed 56W. For an example, Port 1, 2 and 4 is using 15.4W (maximum power for per port is 15.4W); the system power is 46.2W in total. If there is an additional PD inserted to Port 3 with 10W, and then the system will cut off the power of Port 4 because of the overloaded power, this means Port 1, 2 will use 15.4W, and Port3 will use 10W, no power will be supplied to Port 4.
TL-SG1005P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TP-Link’s TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE is an ideal choice for expanding your home or office network.
ХАРДУЕРНИ ХАРАКТЕРИСТИКИ | |
Интерфейс | 5 10/100/1000Mbps RJ45 Ports |
AUTO Negotiation/AUTO MDI/MDIX | |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
EIA/TIA-568 100Ω STP (maximum 100m) | |
100BASE-TX: UTP category 5, 5e cable (maximum 100m) | |
EIA/TIA-568 100Ω STP (maximum 100m) | |
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) | |
EIA/TIA-568 100Ω STP (maximum 100m) | |
Fan Quantity | Fanless |
Консумирана енергия | 63.31W (max. with 56w PoE device connected) |
4.26W (max. no PoE device connected) | |
Външно захранване | External Power Adapter(Output: 48VDC / 1.25A) |
PoE Ports (RJ45) | Standard: 802.3 af compliant |
PoE Ports: Port1- Port4 | |
Power Supply: 56W | |
Backbound Bandwidth | 10Gbps |
Mac Address Table | 2K |
Размери (Ш x Д x В ) | 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm) |
СОФТУЕРНИ ХАРАКТЕРИСТИКИ | |
Advanced Features | Compatible With IEEE 802.3af Compliant PDs |
Priority Function | |
Mac Address Auto-Learning And Auto-Aging | |
EEE802.3x Flow Control | |
802.1p/DSCP QoS | |
IGMP Snooping | |
Transfer Method | Store-And-Forward |
ДРУГИ | |
Сертификати | FCC, CE, RoHS |
Съдържание на пакета | TL-SG1005P, Power Adapter, Installation Guide |
Consumption | 4.26 watts (max. no PD connected) |
63.31 watts (max. with 56w PD connected) | |
Околна среда | Operating Temperature: 0℃~40℃ (32℉~104℉) |
Storage Temperature: -40℃~70℃ (-40℉~158℉) | |
Operating Humidity: 10%~90%RH non-condensing | |
Storage Humidity: 5%~90%RH non-condensing |
