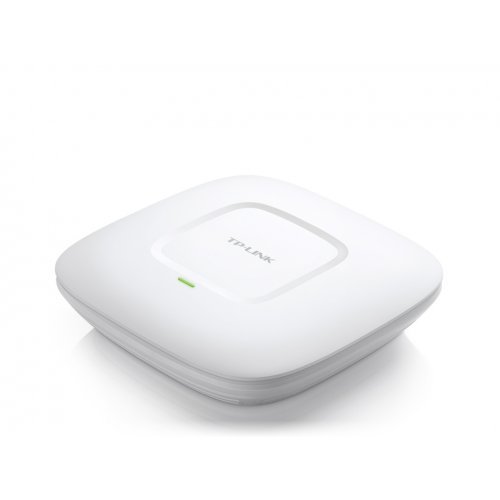

TP-Link TL-EAP120, 300Mbps Wireless N Gigabit Ceiling Mount Access Point

Name: TP-Link TL-EAP120, 300Mbps Wireless N Gigabit Ceiling Mount Access Point
Brand: TP-Link
SKU: TL-EAP120
Availability: OutOfStock

Продуктов код: 9673

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос

Производител:

TP-Link

Модел:

TL-EAP120

Партиден номер:

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

TP-Link TL-EAP120

Datasheet

EAP Controller Software enables administrators to easily manage hundreds of EAPs*
Support Power over Ethernet（802.3af）for convenient and affordable installation
Simple mounting design to easily mount to a wall or ceiling
Captive portal provides one convenient method of authentication for WiFi guests
WPA/WPA2-enterprise, 802.1X with RADIUS secure authentication and rogue access point detection ensure the security of WLAN
Gigabit Ethernet port enables bandwidth-intensive application or multimedia transferring

EAP Controller Software enables administrators to easily manage hundreds of EAPs
Support Power over Ethernet（802.3af）for convenient and affordable installation
Simple mounting design to easily mount to a wall or ceiling
300Mbps wireless data rate for uninterrupted wireless connection
Captive portal provides one convenient method of authentication for WiFi guests
WPA/WPA2-enterprise, 802.1X with RADIUS secure authentication and rogue access point detection ensure the security of WLAN
Multi-SSID divides multiple wireless network for different users
Load balance ensures large numbers of users have smooth network experiences in large business networks
Compatible with 802.11 b/g/n products
Gigabit Ethernet port enables bandwidth-intensive application or multimedia transferring
Adopts Low Smoke Zero Halogen (LSOH) materials for UL2043 compliance
Multiple operating modes satisfy different application conditions including managed AP and standalone AP modes
QoS function prioritizes data, voice, and video applications to ensure time-sensitive traffic takes priority over all other traffic
Prevents dust from dropping onto the PCB through bypass louver, which ensures long-term, unhindered operation.

HARDWARE FEATURES
Interface	Gigabit Ethernet (RJ-45) Port 1（Support IEEE802.3af PoE） Console Port 1
Button	Reset, Power On/Off
Dimensions (W X D X H)	7.1 x 7.1 x 1.9 in. (18018047.5mm)
Antenna Type	Internal 2* 4dBi Omni
Power Consumption	4.4 W
Power Supply	PoE or External 12VDC / 1A Power Supply
Mounting	Ceiling /Wall Mounting (Kits included)
Physical Security Lock	Kensington Lock Slot
Watch Dog	Yes

WIRELESS FEATURES
Wireless Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency	2.4-2.4835GHz
Signal Rate	11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic)
Reception Sensitivity	300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER
Transmit Power	CE: <20dBm FCC: <26dBm
Wireless Functions	Multiple SSIDs （Up to 8 SSIDs） Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control （Adjust Transmit Power on dBm） QoS(WMM) Load Balance Wireless Schedule Wireless Statistics based on SSID/AP/Client
Wireless Security	Captive Portal Authentication Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK

MANAGEMENT
EAP Controller Software	Yes
Cluster	Up to 24 APs in one cluster
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1,v2c
System Logging Local/Remote Syslog	Local/Remote Syslog
Telnet	Yes
Web-based Management	HTTP/HTTPS
CLI (Command Line Interface)	Yes

OTHERS
Certification	CE, FCC, RoHS
Package Contents	300Mbps Wireless N Gigabit Ceiling Mount Access Point EAP120 Power Adapter Mounting Kits Resource CD Installation Guide
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing
