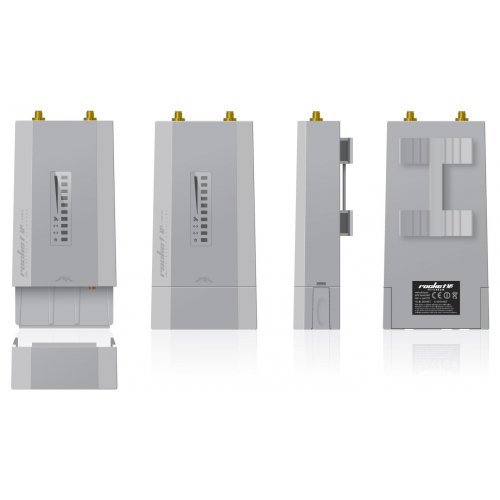

Ubiquiti UB-RM5-TI, Rocket M5 Titanium

Features

Ubiquiti Rocket M5 Titanium is a powerful outdoor unit for the 5 GHz band with AirMAX AirSync for synchronization APs. The unit allows you to easily create the backbone connections or access points with real speed up to 150MB/s.
The new metal housing of unit provides a major advantage as better shielding against radiation outside antenna. This ambient noise suppressed and provide better performance and functionality of the unit Rocket M5 Titanium. The metal housing also provides better cooling and resistance to weathering. Delight and innovative look.

With built-in GPS receiver uses the synchronization feature AirSync broadcast series with other AP using feature AirSync, which allows efficient use of bandwidth to increase speed and reduce the latency of the AP. GPS receiver is used for error-free transmission and reception timing. For this feature, simply set the main drive as master and the others as slave. The unit can be used to link Point-to-Point or Point-to-MultiPoint.

Another advantage is in addition to high speed transmission because 802.11n uses Time Division Multiple Access TDMA, which allows the unit in the AP to connect more than 300 clients and low latency.
The output of the MIMO antenna AirMAX are 2 RSMA connectors and one RSMA connector for external GPS antenna. The unit also has two LAN ports, one of which is Gigabit.

Specifications

Processor Specs: Atheros MIPS 74KC, 550 MHz
Memory Information: 128 MB SDRAM, 8 MB Flash
RF Connections: 2 RP-SMA (Waterproof), 1 SMA (GPS)
Wireless Approvals: FCC Part 15.247, IC RS210, CE
RoHS Compliance: Yes
Dimensions: 160 x 80 x 44 mm
Weight: 350 g
Enclosure Characteristics: Die-Cast Aluminum
Networking Interface: (1) 10/100/1000 Ethernet Port,(1) 10/100 Ethernet Port
Max. Power Consumption: 6.5 Watts (RM2-Ti), 8.0 Watts
Power Supply: 48V, 0.5A PoE Adapter (Included)
Power Method: 802.3af Compliant
ESD/EMP Protection: 30KV Contact / Air for Ethernet
Operating Temperature -30 to 75° C
Operating Humidity: 5 to 95% Condensing
Shock and Vibration: ETSI300-019-1.4
Modes: Station, Access Point, AP Repeater
Services: SNMP, DHCP, NAT
Utilities: Site Survey with Preferred SSID, Antenna Alignment Tool, Discovery Utility
Security: WEP/WPA/WPA2
QoS: 802.11e / WMM Support
Statistical Reporting: Ethernet Activity, Uptime, Packet Success/Errors
Antenna Align / Signal Strength LEDs: Software Adjustable to Correspond to Custom Signal Strength Levels
Operating Frequency: 5170 - 5825 MHz
Range Performance: 50+ km (Outdoor - Antenna Dependent)
Output Power: 27 dBm
