APC
UPS устройство APC Rack ATS AP4423, 230V, 16A, C20 In, 8x C13, 1x C19 Out, PDU

UPS устройство APC Rack ATS AP4423, 230V, 16A, C20 In, 8x C13, 1x C19 Out, PDU

Name: UPS устройство APC Rack ATS AP4423, 230V, 16A, C20 In, 8x C13, 1x C19 Out, PDU
Brand: APC
SKU: Rack ATS
Availability: OutOfStock

Продуктов код: 30882

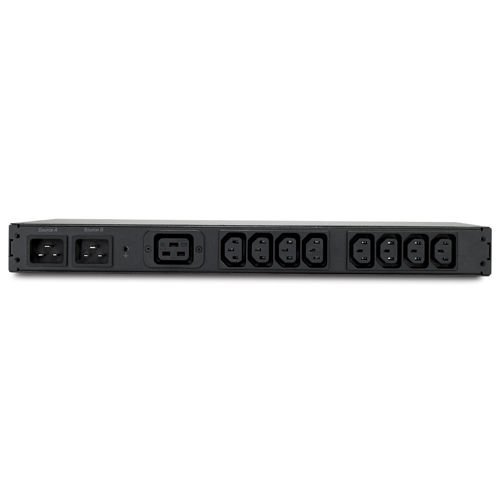

UPS устройство APC Rack ATS AP4423 (снимка 1)

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос

Производител:

APC

Модел:

Rack ATS

Партиден номер:

AP4423

Гаранция:

24 месеца

Брой гнезда:

Дължина:

0 м.

Основен цвят:

Черен

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

APC Rack ATS

AP4423 Features

RACK ATS, 230V, 16A, C20 IN, (8) C13 (1) C19 OUT

Provides redundant rack mount power to single-corded equipment.

Includes : Mounting hardware , Rack Mounting brackets , Serial configuration cable

10 kAIC Overcurrent Protection

Provides protection in the event of a significant overcurrent event.
Command line interface

Offers simultaneous remote management access through Telnet and SSH
Current Monitoring

Monitors the aggregate current draw per power distribution unit.
Cyber security

A cyber-secure connection provides improved security for your infrastructure devices, and machine data forms the basis of operational insights and analytics, aimed at reducing equipment maintenance costs.
Local Current Monitoring Display

The aggregate current draw per rack PDU is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip. (Available on designated SKUs only)
Quick Transfer Rate

Transfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance.
Remote Management Capabilities

Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
RoHS

Certifies that electronic devices don't contain hazardous metals and flame retardants
StruxureWare Data Center Expert compatible

Enables centralized management via StruxureWare Data Center Expert.

Rack-mount Transfer Switches Features & Benefits

Agility

Wide range of input and output connections

Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Manageability

Network Management Capabilities

Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage rack PDUs from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
Color LCD display

Provides more robust and intuitive local control and manageability.

Availability

Transfer time <10ms

Industry leading transfer time to ensure seamless ride through in the event of a primary power source failure.
Dual Input Power Sources

Supplies redundant AC power to connected equipment. Two AC lines power the unit and if the primary AC power fails, the unit will automatically switch to the alternative power source.

Marketing Features

Rack-Mountable

Occupys only 1U of valuable rack space. Puts the power where it is needed most - in the rack near the equipment.
Information Displays

Indicates the status of the AC sources powering the units, as well as indicates which source is set as the primary source and which source is currently supplying power to the load. This provides a visual depiction of the power flow from the input to the load. This allows the user to quickly glance at the power flow and status of the input sources without connecting to the unit.
Dual Input Power Sources

Supplies redundant AC power to connected equipment. Two AC lines power the unit and if the primary AC power fails, the unit will automatically switch to the alternative power source.

Protection

10 kAIC Overcurrent Protection

Provides protection in the event of a significant overcurrent event.

Output

Nominal Output Voltage
230V
Overload Protection
No
Maximum Total Current Draw
16
Output Connections

(1) IEC 320 C19 (Battery Backup)

(8) IEC 320 C13 (Battery Backup)
