ASROCK B450 GAMING-ITX/AC /AM4

Продуктов код: 32383
Дънна платка ASRock
Дънна платка ASRock
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
ASRock
Модел:
GAMING-ITX
Партиден номер:
B450 GAMING-ITX/AC
Гаранция:
36 месеца
Чипсет:
AMD B450
Socket:
AMD AM4
Предназначение:
Десктоп
Слотове за памет:
2
RAM- поколение:
DDR4
Видео изходи:
DisplayPort, HDMI
Form Factor:
Mini ITX
Интерфейс:
PS/2
Цена с включен ДДС:
239.45 лв.

Гаранционен срок 36 месеца

Гаранционните условия са определени от производителя

Безплатна доставка

До всяко населено място в страната в рамките на 1-3 работни дни

ДОБАВИ В КОЛИЧКАТА

Можете да поръчате и по телефона:
(+359 2) 965 89 89

  • Информация за ASRock GAMING-ITX

  • Ревюта
  • Въпроси и отговори

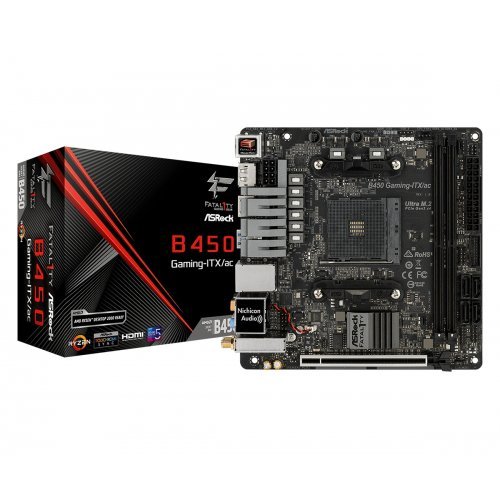

ASROCK B450 GAMING-ITX/AC /AM4
Mnfr. Part#: B450 GAMING-ITX/AC



• Socket: AM4



• Graphics: - Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*; - Integrated AMD Radeon™ R-Series Graphics in A-series APU*; - DirectX 12, Pixel Shader 5.0; - Shared memory default 2GB. Max Shared memory supports up to 16GB.**; - Dual graphics output: Support HDMI and DisplayPort 1.2 by independent display controllers; - Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz; - Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz; - Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Ports (Compliant HDMI 2.0 monitor is required); - Supports HDCP 1.4 with HDMI 2.0 and DisplayPort 1.2 Ports; - Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and DisplayPort 1.2 Ports



• CPU`s supported: - AMD AM4 Socket; - Digi Power design; - 8 Power Phase design; - Supports 105W Water Cooling (Pinnacle Ridge); Supports 95W Water Cooling (Summit Ridge); Supports 65W Water Cooling (Raven Ridge)



• Chipset: - AMD Promontory B450



• Expansion Slots: AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge); - 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*; AMD Ryzen series CPUs (Raven Ridge); - 1 x PCI Express 3.0 x16 Slot (PCIE1: x8 mode)*; AMD Athlon series CPUs; - 1 x PCI Express 3.0 x16 Slot (PCIE1: x4 mode)*; - 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O); - 15? Gold Contact in VGA PCIe Slot (PCIE1)



• Storage: - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug; - 1 x Ultra M.2 Socket, supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU)*



• Memory type: - Dual Channel DDR4 Memory Technology; - 2 x DDR4 DIMM Slots; - AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 ECC & non-ECC, un-buffered memory*; - AMD Ryzen series CPUs (Summit Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933(OC) / 2667/2400/2133 ECC & non-ECC, un-buffered memory*; - AMD Ryzen series CPUs (Raven Ridge) support DDR4 3466+(OC) / 3200(OC) / 2933/2667/2400/2133 non-ECC, un-buffered memory*; - Max. capacity of system memory: 32GB**; - 15? Gold Contact in DIMM Slots



• I/O: - 2 x Antenna Ports; - 1 x PS/2 Mouse/Keyboard Port; - 1 x HDMI Port; - 1 x DisplayPort 1.2; - 1 x Optical SPDIF Out Port; - 2 x USB 2.0 Ports (Supports ESD Protection)*; - 1 x USB 3.1 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection); - 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection); - 2 x USB 3.1 Gen1 Ports (Supports ESD Protection); - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED); - HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)



• Connectors: - 1 x LPC Header; - 1 x Addressable LED Header*; - 1 x AMD Fan LED Header**; - 1 x CPU Fan Connector (4-pin)***; - 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****; - 1 x 24 pin ATX Power Connector; - 1 x 8 pin 12V Power Connector (Hi-Density Power Connector); - 1 x Front Panel Audio Connector (15? Gold Audio Connector); - 1 x AMD LED Fan USB Header; - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection); - 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)



• Audio: - 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec); - Premium Blu-ray Audio support; - Supports Surge Protection; - Nichicon Fine Gold Series Audio Caps; - 120dB SNR DAC with Differential Amplifier; - Pure Power-In; - Direct Drive Technology; - PCB Isolate Shielding; - Impedance Sensing on Rear Out port; - Individual PCB Layers for R/L Audio Channel; - Gold Audio Jacks; - Supports Creative Sound Blaster™ Cinema 5



• LAN: - Gigabit LAN 10/100/1000 Mb/s; - GigaLAN Intel® I211AT; - Supports Wake-On-LAN; - Supports Lightning/ESD Protection; - Supports Energy Efficient Ethernet 802.3az; - Supports PXE



• BIOS: - 128Mb AMI UEFI Legal BIOS with GUI support; - Supports "Plug and Play"; - ACPI 5.1 compliance wake up events; - Supports jumperfree; - SMBIOS 2.3 support; - CPU, DRAM, PCH 1.05V, PROM 2.5V, Voltage Multi-adjustment



• Form Factor: - Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm



• OS: - Microsoft® Windows® 10 64-bit



• Other: - Intel® 802.11ac WiFi Module; - Supports IEEE 802.11a/b/g/n/ac; - Supports Dual-Band (2.4/5 GHz); - Supports high speed wireless connections up to 433Mbps; - Supports Bluetooth 4.2 / 3.0 + High speed class II



• Warranty: 36 Months
