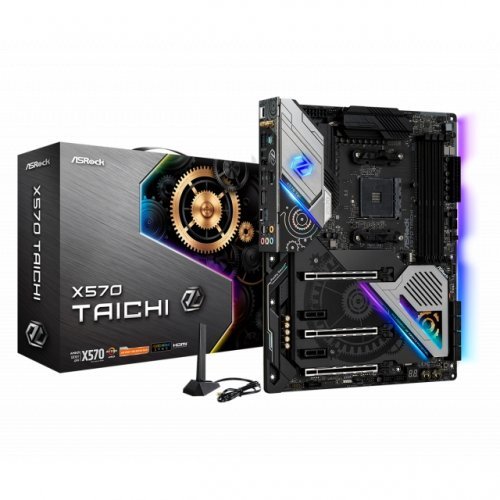

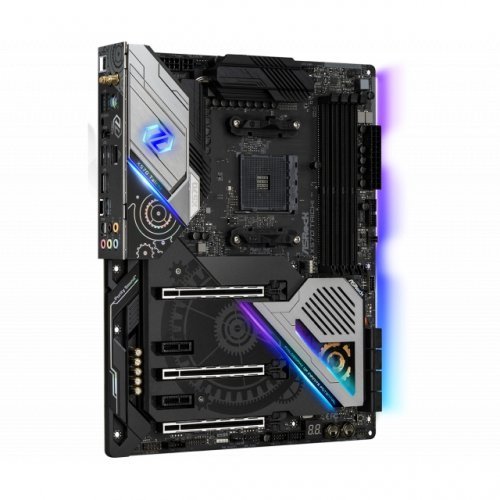

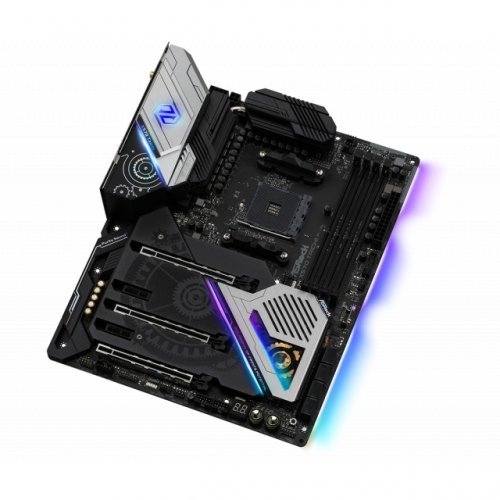

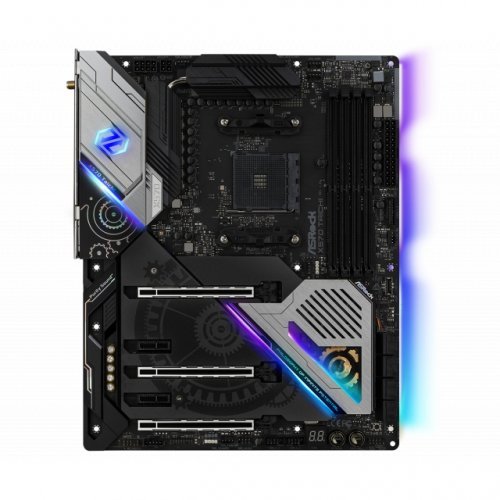

ASROCK X570 Taichi, socket AM4, Wi-Fi 6, RGB Polychrome, PCIE 4.0
- Supports AMD AM4 Socket Ryzen™ 2000 and 3000 Series processors
- Intel® Wi-Fi 6 802.11ax (2.4Gbps) + BT 5.0
- Supports DDR4 4666+ (OC)
- 3 PCIe 4.0 x16, 2 PCIe 4.0 x1
- NVIDIA® NVLink™, Quad SLI™, AMD 3-Way CrossFireX™
- 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Purity Sound™ 4 & DTS Connect
- 8 SATA3, 2 Hyper M.2 (PCIe Gen4 x4 & SATA3), 1 Hyper M.2 (PCIe Gen4 x4)
- 3 USB 3.2 Gen2 (Rear Type A+C, Front Type-C), 8 USB 3.2 Gen1 (2 Front, 6 Rear)
- Intel® Gigabit LAN
- ASRock Polychrome SYNC
ТЕХНИЧЕСКИ ДЕТАЙЛИ
| ПРОИЗВОДИТЕЛ | ASROCK |
| МОДЕЛ | X570 TAICHI |
| БАРКОД | 4717677338683 |
| ГАРАНЦИЯ | 36 месеца |
| CPU SOCKET | AM4 |
| ЧИПСЕТ | AMD X570 |
| ПОДДЪРЖАНИ ПРОЦЕСОРИ | AMD Socket AM4, support for: 3rd Generation AMD Ryzen™/ 2nd Generation AMD Ryzen™ / 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics / AMD Ryzen™ with Radeon™ Vega Graphics |
| ФОРМ ФАКТОР | ATX |
| ПОДДЪРЖАНА ПАМЕТ | DDR4 |
| МАКСИМАЛЕН КАПАЦИТЕТ RAM ПАМЕТ | 128 GB |
| СЛОТОВЕ ПАМЕТ | 4 |
| ЧЕСТОТА ПАМЕТ | 4666(OC), 4400(OC), 4300(OC), 4266(OC), 4200(OC), 4133(OC), 3466(OC), 3200, 2933, 2667, 2400, 2133 |
| ПОДДРЪЖКА НА DUALCHANNEL | Да |
| ГРАФИЧНА КАРТА | Integrated Graphics in the AMD Ryzen™ with Radeon™ Vega Graphics/ 7th Generation A-Series APU |
| ВГРАДЕНО АУДИО | Realtek ALC1220 |
| ВГРАДЕН LAN | Intel I211-AT |
| ВГРАДЕН WI-FI | Intel® Wi-Fi 802.11ax MU-MIMO |
| ВГРАДЕН BLUETOOTH | Bluetooth V5.0 |
| СЛОТOВЕ PCI-E X16 | 3 x PCIe 4.0/3.0 x16 |
| СЛОТOВЕ PCI-E X1 | 2 |
| ИНТЕРФЕЙС SERIAL ATA | 8 x SATA3 6.0 Gb/s |
| М2 СЛОТ | 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 4.0/3.0 x4/x2 SSD support), 1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4 SSD support), 1 x M.2 connector (Socket 3, M key, type2230/2242/2260/2280/22110 SATA and PCIe 4.0 x4 SSDD support) |
| ПОДДРЪЖКА НА RAID | 0,1,10 |
| КОНЕКТОР ЗАХРАНВАНЕ | 1 x 24-pin, 1 x 8-pin, 1 x 4-pin |
| ВИДЕО СЛОТ | PCI Express |
| МУЛТИ GPU ТЕХНОЛОГИЯ | NVIDIA Quad-GPU SLI Technology, NVIDIA 2-Way SLI Technology, AMD Quad-GPU CrossFireX Technology, AMD 2-Way CrossFireX Technology |

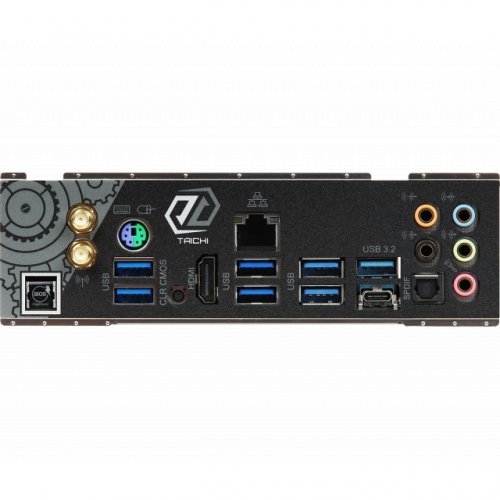

| СВЪРЗАНОСТ | 1 x PS/2, 1 x HDMI, 1 x USB Type-C, 1 x USB 3.2 Gen2, 6 x USB 3.2 Gen1, 1 x RJ-45, 1 x optical S/PDIF out, 5 x gold plated audio jack's |
| USB TYPCE-C | 1 |
| USB 3.2 | 7 |
| КОМПЛЕКТЪТ ВКЛЮЧВА | Ръководство, I/O Shield, 4 x SATA 6Gb/s кабели, 1 x SLI bridge, Диск с драйвер |
| ДРУГИ | 256Mb AMI UEFI Legal BIOS with GUI support, Supports "Plug and Play", ACPI 5.1 compliance wake up events, Supports jumperfree, SMBIOS 2.3 support, CPU, VCORE_NB, DRAM, VPPM, PCH 1.05V, +1.8V, VDDP, PROM 2.5V, Voltage Multi-adjustment |
