Дънна платка Asus Prime B360M-K ASUS-MB-PRIME-B360M-K

Дънна платка Asus Prime B360M-K ASUS-MB-PRIME-B360M-K

Name: Дънна платка Asus Prime B360M-K ASUS-MB-PRIME-B360M-K
Brand: Asus
SKU: Prime B360M-K
Availability: OutOfStock

Продуктов код: 27772

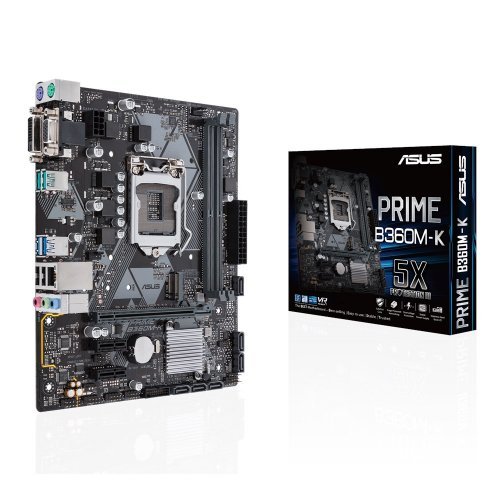

Дънна платка Asus Prime B360M-K ASUS-MB-PRIME-B360M-K (снимка 1)

Дънна платка Asus Prime B360M-K ASUS-MB-PRIME-B360M-K

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос

Производител:

Asus

Модел:

Prime B360M-K

Партиден номер:

ASUS-MB-PRIME-B360M-K

Гаранция:

36 месеца

M.2 порт:

Да

Предназначение:

Десктоп

Чипсет:

Intel B360

Брой слотове за памет:

RAM - поколение:

DDR4

Socket:

Intel LGA1151

Form Factor:

mATX

Видео изходи:

D-Sub(VGA), DVI

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

Asus Prime B360M-K

CPU
Intel® Socket 1151 for 8^th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0
* The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to www.asus.com for CPU support list
Chipset
Intel® B360
Memory
Intel® B360 Chipset
2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor
** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.
Graphic
Integrated Graphics Processor- Intel® HD Graphics support
Multi-VGA output support : DVI-D/D-Sub ports
- Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
- Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 1024 MB (for iGPU exclusively)
Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
Expansion Slots
1 x PCIe 3.0/2.0 x16 (x16 mode, gray)
2 x PCIe 3.0/2.0 x1
Storage
Intel® B360 Chipset :
1 x M.2 Socket 3, , with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)*¹
6 x SATA 6Gb/s port(s), gray,
LAN
Realtek® RTL8111H, 1 x Gigabit LAN
ASUS LAN Guard
Audio
Realtek® ALC887 8-Channel High Definition Audio CODEC *
- Supports : Jack-detection, Front Panel Jack-retasking
Audio Feature :
- LED-illuminated design - Brighten up your build with the gorgeous illuminated audio trace path.
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
USB Ports
Intel® B360 Chipset :
2 x USB 3.1 Gen 2 up to 10Gbps port(s) (2 at back panel, teal blue, Type-A)
Intel® B360 Chipset :
4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board)
Intel® B360 Chipset :
6 x USB 2.0/1.1 port(s) (2 at back panel, black, 4 at mid-board)
Special Features
ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 5 Phase digital power design
ASUS OptiMem：
- Optimem (Improved DDR4 stability)
ASUS EPU :
- EPU
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- PC Cleaner
- File Transfer
ASUS Quiet Thermal Solution :
- Stylish Fanless Design Heat-sink solution
- ASUS Fan Xpert
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
- ASUS Q-DIMM
M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)

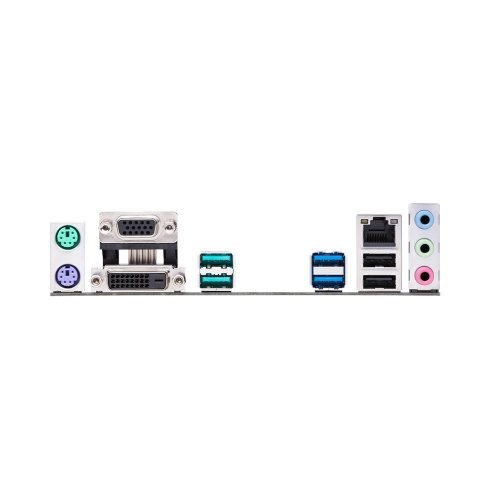

Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 2 (teal blue)Type-A, up to 10Gbps
2 x USB 3.1 Gen 1 (blue) Type-A, up to 5Gbps
2 x USB 2.0
1 x 8-channel Audio I/O
Internal I/O Ports
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)
1 x COM port(s) connector(s)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (1 x 4 -pin)
1 x Chassis Fan connector(s) (1 x 4 -pin)
1 x S/PDIF out header(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x Clear CMOS jumper(s)
1 x System panel connector
1 x Speaker connector

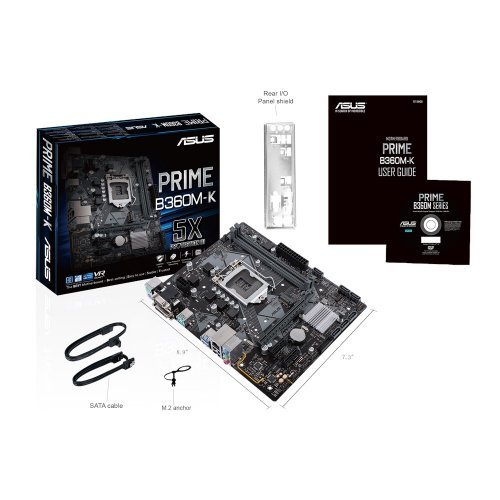

Accessories
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Anchor
1 x SCD
BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP,SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
Manageability
WOL by PME, PXE
Operating System
Windows® 10 64-bit
Form Factor
mATX Form Factor
8.9 inch x 7.3 inch ( 22.6 cm x 18.5 cm )
Note
*1 When a device in SATA mode is installed on the M.2 socket, SATA_2 port cannot be used.
