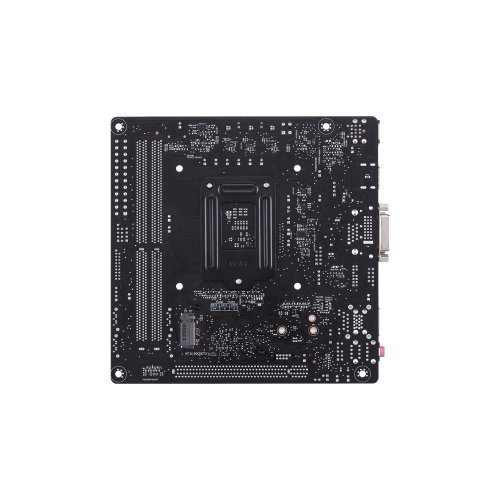

Дънна платка Asus Prime H310I-PLUS/CSM

Продуктов код: 29402
Дънна платка Asus
Дънна платка Asus Prime H310I-PLUS/CSM Дънна платка Asus Prime H310I-PLUS/CSM Дънна платка Asus Prime H310I-PLUS/CSM Дънна платка Asus Prime H310I-PLUS/CSM Дънна платка Asus Prime H310I-PLUS/CSM Дънна платка Asus Prime H310I-PLUS/CSM Дънна платка Asus Prime H310I-PLUS/CSM Дънна платка Asus Prime H310I-PLUS/CSM Дънна платка Asus Prime H310I-PLUS/CSM
Дънна платка Asus
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
Asus
Модел:
Prime H310I-PLUS/CSM
Партиден номер:
-
Гаранция:
36 месеца
M.2 порт:
Да
Предназначение:
Десктоп
Чипсет:
Intel H310
Брой слотове за памет:
2
RAM - поколение:
DDR4
Socket:
Intel LGA1151
Form Factor:
Mini ITX
Видео изходи:
D-Sub(VGA), DVI, HDMI
Wi-Fi свързаност:
Да

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

  • Описание
  • Ревюта
  • Въпроси и отговори

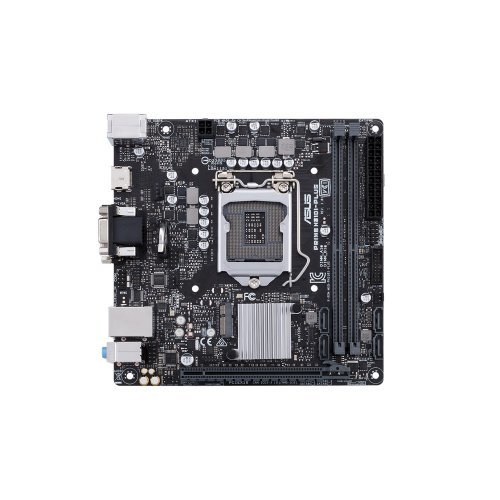

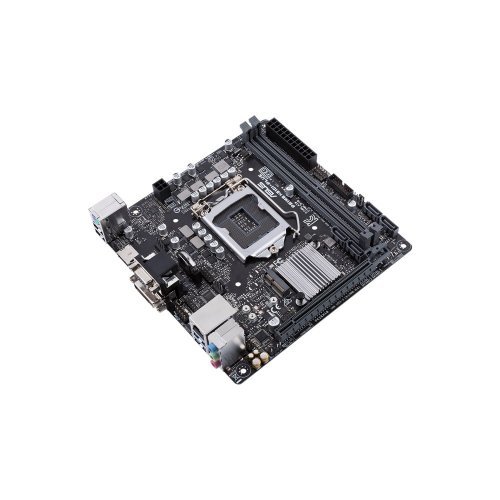

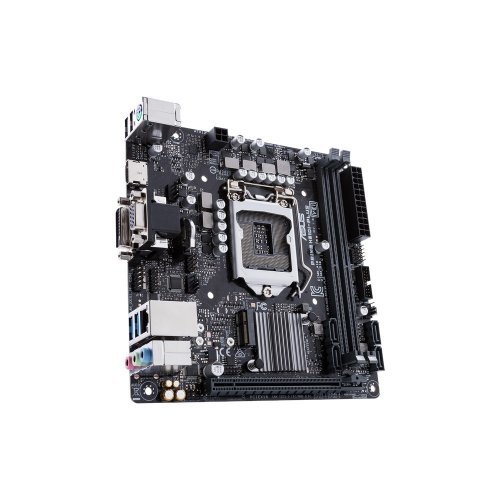

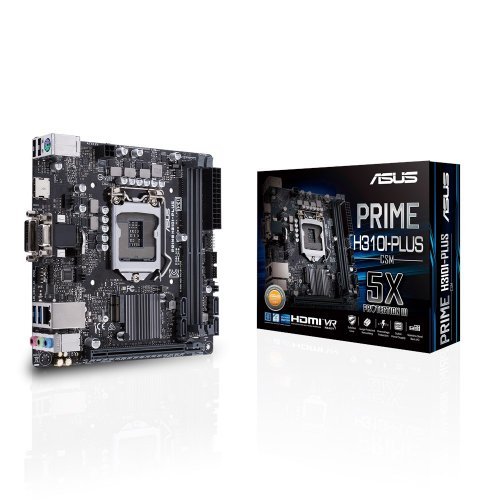

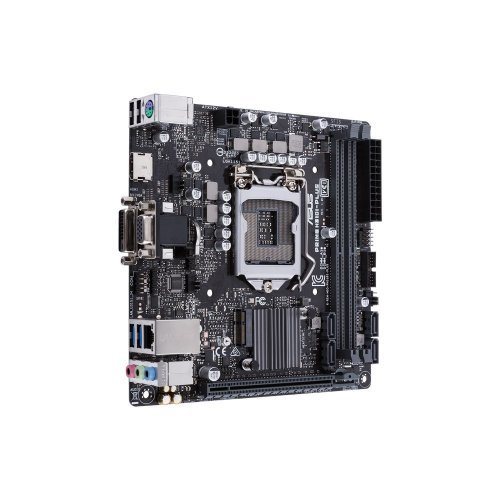

Asus Prime H310I-PLUS/CSM

Intel LGA-1151 mini-ITX motherboard with DDR4 2666MHz, M.2 M key & M.2 E key support, HDMI, SATA 6Gbps and USB 3.1 Gen1

  • Fan Xpert 2+: Flexible controls for ultimate cooling and quietness, plus GPU-temperature sensing for cooler gaming
  • 5X Protection III: Multiple hardware safeguards for all-round protection.
  • Native M.2 (M key) support delivers lightning-fast storage speeds, and native M.2 (E key) support enables faster wireless communication speeds.
  • ASUS Control Center software to make IT endpoint management easier
  • CPU
    Intel® Socket 1151 for 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
    Supports Intel® 14 nm CPU
    Supports Intel® Turbo Boost Technology 2.0
    * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.
    * Refer to www.asus.com for CPU support list
  • Chipset
    Intel® H310
  • Memory
    2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    ** Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
    * The maximum memory frequency supported varies by processor
    ** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors.
  • Graphic
    Integrated Graphics Processor- Intel® HD Graphics support
    Multi-VGA output support : HDMI/DVI-D/D-Sub ports
    - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 25600 x 1600 @ 60 Hz
    - Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz
    - Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz
    Maximum shared memory of 1024 MB (for iGPU exclusively)
    Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™
  • Expansion Slots
    1 x PCIe 3.0/2.0 x16 (x16 mode)
  • Storage
    Intel® H310 Chipset :
    1 x M.2 Socket 3, , with M Key, type 2260/2280 storage devices support (both SATA & PCIE mode)*1
    4 x SATA 6Gb/s port(s), gray,
  • LAN
    Realtek® RTL8111H, 1 x Gigabit LAN
  • Audio
    Realtek® ALC887 8-Channel High Definition Audio CODEC
    - Supports : Jack-detection, Front Panel Jack-retasking
    Audio Feature :
    - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
    - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
    - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
    * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
  • USB Ports
    Intel® H310 Chipset :
    4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board)
    Intel® H310 Chipset :
    4 x USB 2.0/1.1 port(s) (2 at back panel, , 2 at mid-board)
  • Special Features
    ASUS 5X Protection III :
    - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
    - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
    - ASUS Overvoltage Protection: World-class circuit-protecting power design
    - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
    - ASUS DIGI+ VRM: 5 Phase digital power design
    ASUS EPU :
    - EPU
    ASUS Exclusive Features :
    - AI Suite 3
    - Ai Charger
    - File Transfer
    ASUS Quiet Thermal Solution :
    - Stylish Fanless Design Heat-sink solution
    - ASUS Fan Xpert 2+
    ASUS EZ DIY :
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
    ASUS Q-Design :
    - ASUS Q-DIMM
    M.2 Onboard(The latest transfer technologies with up to 20 Gb/s data transfer speeds)

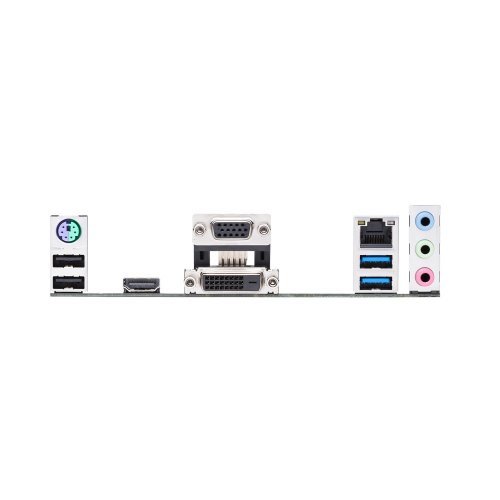

  • Back I/O Ports
    1 x PS/2 keyboard/mouse combo port(s)
    1 x DVI-D
    1 x D-Sub
    1 x HDMI
    1 x LAN (RJ45) port(s)
    2 x USB 3.1 Gen 1 (blue) Type-A, up to 5Gbps
    2 x USB 2.0
    3 x Audio jack(s)
  • Internal I/O Ports
    1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin)
    1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
    1 x M.2 Socket 1 with E Key, type 2230 WiFi/BT devices support or PCIe/USB mode
    1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (both SATA & x2 PCIE mode)
    1 x COM port(s) connector(s)
    4 x SATA 6Gb/s connector(s)
    1 x CPU Fan connector(s) (1 x 4 -pin)
    2 x Chassis Fan connector(s) (2 x 4 -pin)
    1 x S/PDIF out header(s)
    1 x 24-pin EATX Power connector(s)
    1 x 4-pin ATX 12V Power connector(s)
    1 x Front panel audio connector(s) (AAFP)
    1 x Chassis Intrusion connector(s)
    1 x Clear CMOS jumper(s)
    1 x 14-1 pin TPM connector
    1 x System panel connector
    1 x Speaker connector

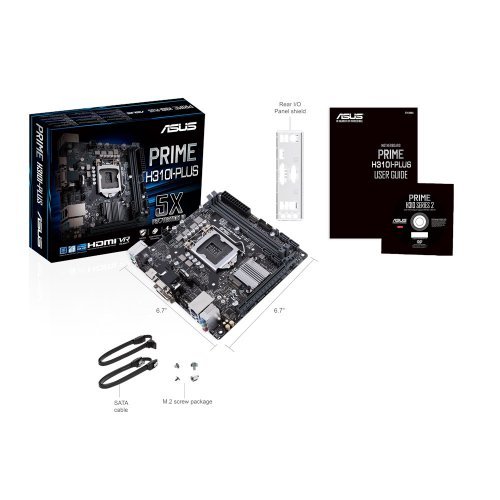

  • Accessories
    User's manual

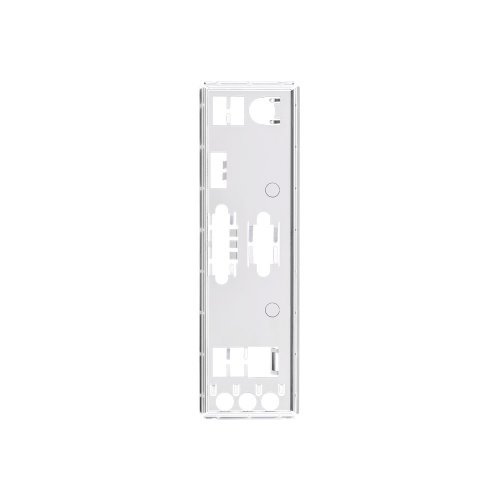

    I/O Shield
    2 x SATA 6Gb/s cable(s)
    2 x M.2 Screw Package
    1 x Supporting DVD
  • BIOS
    128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
  • Manageability
    WOL by PME, PXE
  • Operating System
    Windows® 10 64-bit
  • Form Factor
    Mini ITX Form Factor
    6.7 inch x 6.7 inch ( 17 cm x 17 cm )
  • Note
    *1 When a device in SATA mode is installed on the M.2 socket, SATA_2 port cannot be used.
    Due to the Chipset limitation, when a M.2 device is installed in PCIe mode, the socket is set
    to PCIe 2.0.
