Manufacturer : ASUS
Subcategory
PartNo1 PRO H410M-C/CSM
PartNo2 90MB1480-M0EAY0
Search String

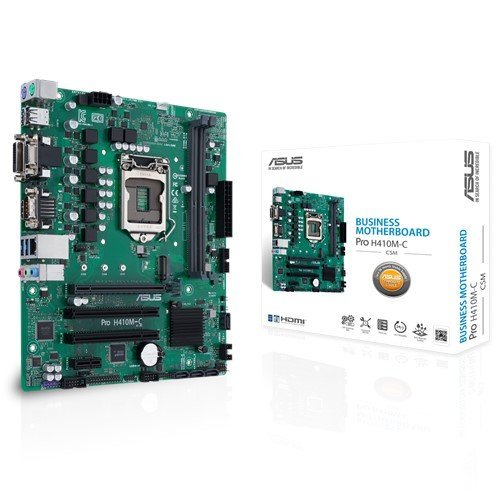

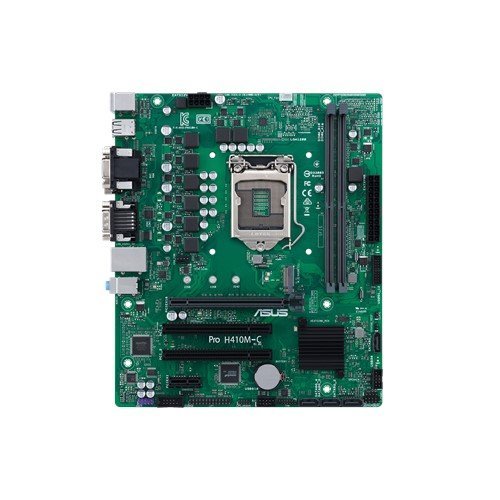

ASUS PRO H410M-C/CSM
Product ID: 63164
Mnfr. Part#: PRO H410M-C/CSM
• Graphics: Integrated Graphics Processor *1; 1 x D-Sub; 1 x DVI-D; 1 x HDMI 1.4b
• CPU`s supported: Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors *; Supports Intel® 14 nm CPU; Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
• Chipset: Intel® H410
• Expansion Slots: 16-Lane CPU-; 1 x PCIe 3.0/2.0 x16 (x16 mode); Intel® H410 Chipset; 1 x PCIe 3.0/2.0 x1; 2 x PCI
• Storage: Total supports 1 x M.2 slots and 4 x SATA 6Gb/s ports; Intel® B460 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)*2; 4 x SATA 6Gb/s port(s)
• Memory type: 2 x DIMM, Max. 64GB, DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory; Dual Channel Memory Architecture; Supports Intel® Extreme Memory Profile (XMP); OptiMem

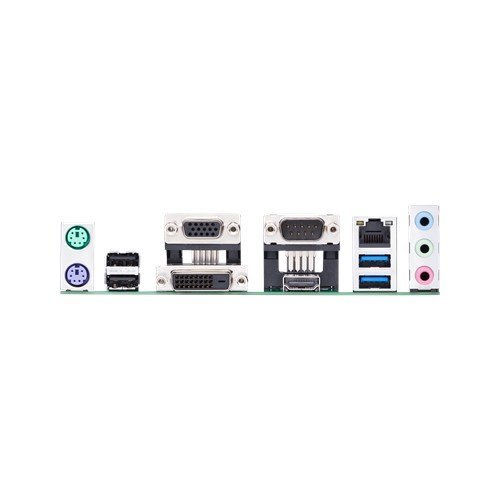

• I/O: 1 x PS/2 keyboard (purple); 1 x PS/2 mouse (green); 1 x DVI-D; 1 x D-Sub; 1 x HDMI; 1 x LAN (RJ45) port(s); 2 x USB 3.2 Gen 1 (blue) Type-A; 2 x USB 2.0; 1 x COM port(s); 3 x Audio jack(s)
• Connectors: 1 x CPU Fan connector(s) (1 x 4 -pin); 1 x Chassis Fan connector(s) (1 x 4 -pin); 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s); 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s); 1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 X2 mode); 1 x SPI TPM header; 1 x LPT header; 1 x COM port(s) connector(s); 4 x SATA 6Gb/s connector(s); 1 x 24-pin EATX Power connector(s); 1 x 8-pin ATX 12V Power connector(s); 1 x Front panel audio connector(s) (AAFP); 1 x Internal speaker connector(s); 1 x System panel(s); 1 x Chassis Intrusion connector(s); 1 x Clear CMOS jumper(s); 1 x LPC Debug header
• Audio: Realtek ALC887 7.1-Channel High Definition Audio CODEC *3; - Supports : Jack-detection, Multi-recording, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
• LAN: Intel® I219V, 1 x Gigabit LAN Controller(s); ASUS LANGuard
• BIOS: 128Mb Flash ROM, UEFI AMI BIOS
• Form Factor: mATX Form Factor; 9.6 inch x 8.2 inch ( 24.4 cm x 20.8 cm )
• OS: Windows® 10 64-bit
https://www.asus.com/Motherboards/Pro-H410M-C-CSM/specifications/
ASUS PRO H410M-C/CSM
