Asus
Дънна платка Asus X670E-A 90MB1BM0-M0EAY0

Дънна платка Asus X670E-A 90MB1BM0-M0EAY0

Name: Дънна платка Asus X670E-A 90MB1BM0-M0EAY0
Brand: Asus
SKU: X670E-A
Availability: OutOfStock

Продуктов код: 75438

Дънна платка Asus X670E-A 90MB1BM0-M0EAY0 (снимка 1)

Дънна платка Asus X670E-A 90MB1BM0-M0EAY0

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос

Производител:

Asus

Модел:

X670E-A

Партиден номер:

90MB1BM0-M0EAY0

Гаранция:

36 месеца

Чипсет:

AMD X670

Socket:

AMD AM5

Предназначение:

Gaming - за игри

Слотове за памет:

RAM- поколение:

DDR5

Видео изходи:

1x DisplayPort, 1x HDMI

Form Factor:

ATX

Интерфейс:

1x RJ-45 LAN 2.5G Eth., 1x Thunderbolt, 1x USB 3.1 Gen 1, 1x USB 3.2 Gen 2 Type-C, 1x USB 3.2 Gen 2x2 Type-C, 2x USB 2.0, 2x USB 3.2 Gen 1, 4x USB 2.0, 7x USB 3.2 Gen 2

Екстри:

2.5G + Gigabit LAN contrlers, Bluetooth v5, Intel 802.11ax WiFi Module

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

Asus X670E-A

Производител :	ASUS
Продуктов номер на производителя :	90MB1BM0-M0EAY0

Име на продукта:	ASUS ROG STRIX X670E-A GAMING WIFI AM5 ATX MB 4xDIMM DDR5 4xM.2 4xSATA
Описание :	ASUS ROG Strix X670E-A Gaming WiFi - Motherboard - ATX - Socket AM5 - AMD X670 Chipset - USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 2x2, USB-C 3.2 Gen2 - 2.5 Gigabit LAN, Wi-Fi 6, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel)
EAN:	4711081897323

Product Type:	Motherboard - ATX
Chipset Type:	AMD X670
Processor Socket:	Socket AM5
Max Processors Qty:	1
Compatible Processors:	Ryzen (supports Ryzen 7000 Series)
Supported RAM
Max Size:	128 GB
Technology:	DDR5
Bus Clock:	5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 5200 MHz, 5000 MHz
Supported RAM Integrity Check:	Non-ECC, ECC, ECC (operate in non-ECC mode), on-die ECC
Registered or Buffered:	Unbuffered
Features:	Dual channel memory architecture, supported ECC modules operate in non-ECC mode, AMD EXPO technology
Audio
Type:	HD Audio (8-channel)
Audio Codec:	Realtek ALC4080
Compliant Standards:	High Definition Audio
LAN
Network Controller:	Intel I225-V
Network Interfaces:	2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Expansion / Connectivity
Expansion Slots:	1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 3.0 x1 3 x M.2 socket (2242/2260/2280 M.2 Key M slot) 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot)
Storage Interfaces:	SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 PCIe 5.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10

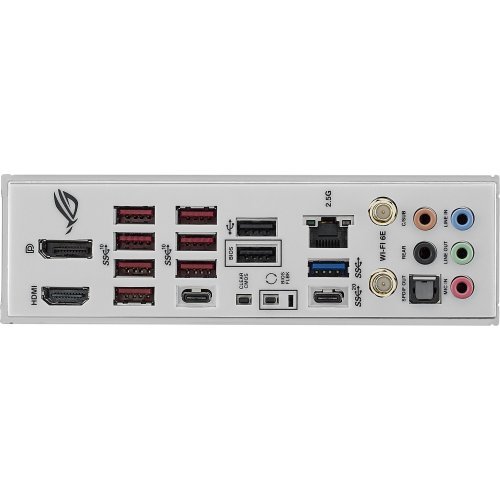

Interfaces:	1 x HDMI 1 x DisplayPort 1 x USB-C 3.2 Gen2x2 7 x USB 3.2 Gen 2 1 x USB-C 3.2 Gen 2 1 x USB 3.2 Gen 1 2 x USB 2.0 1 x audio line-in - mini-jack 1 x microphone - mini-jack 1 x audio line-out - mini-jack 1 x audio line-out (center/subwoofer) - mini-jack 1 x audio line-out (rear) - mini-jack 2 x aerial 1 x SPDIF out 1 x LAN (2.5Gigabit Ethernet)
Internal Interfaces:	4 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x USB-C 3.2 Gen 2x2 - header 1 x audio - header 1 x Thunderbolt - header
Power Connectors:	24-pin main power connector, 2 x 8-pin ATX12V connectors
Features
BIOS Type:	AMI
BIOS Features:	UEFI BIOS, ASUS EZ Flash 3
Sleep / Wake Up:	Wake on LAN (WOL), wake on PME
Hardware Features:	Jack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, ASUS Extreme Engine Digi+, CrashFree BIOS 3, audio jack detect technology, 16+2 Phase Power Design, ASUS TPU (TurboV Processing Unit), ASUS DIGI+ VRM, SupremeFX Shielding technology, Preboot eXecution Environment (PXE), 8 Layer PCB, Clear CMOS Button, LANGuard, ASUS SafeSlot, ASUS SafeDIMM, M.2 heatsink, Water Pump Header, pre-mounted I/O shield, ASUS Aura Sync, ASUS OptiMem II, DIY Friendly Design, FlexKey button, ASUS ProCool II, 70A Power Stage, Savitech SV3H712 amplifier, M.2 Q-Latch, 5K Black Metallic Capacitors, PCIe Slot Q-Release, VRM heatsink design, BIOS FlashBack button, BIOS FlashBack LED, ASUS Enhanced Memory Profile (AEMP)
Miscellaneous
Included Accessories:	Cable ties, STRIX stickers, ROG thank you card, thermal pad for M.2 SSD, ROG key chain, ASUS Wi-Fi moving aerial, M.2 Q-Latch, 2 x M.2 rubber package, M.2 backplate rubber package, M.2 backplate Q-Latch
Cables Included:	2 x Serial ATA cable
Software Included:	ROG CPU-Z, ASUS AI Suite III, ASUS Turbo App, PC Cleaner, WinRAR, Sonic Studio Virtual Mixer, ROG GameFirst VI, AIDA64 Extreme (60 days trial), ASUS AURA Creator, Sonic Suite Companion, MyAsus, Armoury Crate, Sonic Studio III, Sonic Radar III, ASUS Fan Xpert 4
Compliant Standards:	VCCI Class B ITE, JATE, WEEE, FCC Part 15 Class B, DisplayPort 1.4, EU RoHS, UKCA, EU REACH
Width:	30.5 cm
Depth:	24.4 cm
