Захранващ блок Be Quiet! Pure Power 11 500W CM BN297, 80 Plus Gold
Продуктов код: 30737
Все още няма оценка за продукта.Напиши ревю | Задай въпрос
Производител:
Be Quiet!
Модел:
Pure Power 11 500W CM
Партиден номер:
BN297
Гаранция:
60 месеца
Продуктът не се предлага в момента
Попитайте за дата на доставка:
(+359 2) 965 89 89
Цени за доставка:
- Безплатна доставка при поръчки над 99.99 лв.
- 8.40 лв. за доставка при поръчки до 99.99 лв.
- Всички поръчки могат да бъдат взети от офиса на JMT в гр. София, ж.к. Дианабад.
Условия и срокове за доставка:
- Поръчките се обработват и изпращат само в официални работни дни.
- Изпращането на пратка с куриер става по възможност в деня на получаването на поръчката или в най-близкия работен ден.
- Стандартният срок за доставка е до 3 работни дни в зависимост от графика на обслужване на съответната куриерска компания.
Be Quiet! Pure Power 11 500W CM
PURE POWER 11
500W CM
EXCEPTIONALLY QUIET, SUPERIOR RELIABILITY, GREAT VALUE
Pure Power 11 500W CM offers peerless dependability and best-in-class features. Whether you’re assembling a very quiet system, upgrading an existing PC, or building a multi-GPU gaming system, your build will benefit from this PSU that simply has the best combination of features at a very popular price.
- 80 PLUS® Gold efficiency (up to 92%)
- Two strong 12V-rails
- Stable operation thanks to Active Clamp and Synchronous Rectifier (SR) technology
- DC-to-DC conversion for even tighter voltage regulation under heavy cross-loading conditions
- Silence-optimized 120mm be quiet! fan
- Full suite of top safety features
- 5-year manufacturer’s warranty
| Model | Pure Power 11 | 500W CM |
| Continuous power (W) | 500 |
| Peak power (W) | 550 |
| Form factor ATX 12V | Version 2.4 |
| Form factor EPS 12V | - |
| Modular cable management | ✓ |
| Topology | Active Clamp + SR + DC/DC |
| Wire-free design (DC-side) | - |
| Voltage (Vac) | 100 - 240 |
| Frequency (Hz) | 50 - 60 |
| Input current (A) | 8 / 5 |
| PFC | active |
| Power factor at 100% load | >0.99 |
| Compliant to Intel C6/C7 | ✓ |
| Power consumption in standby (W) | 0.19 |
| Average life time (h / 25°C) | 100000 |
| Operating temperature up to (°C) | 40 |
Output
| 12V rails (multi-rail operation) | 2 |
| 12V single rail operation | - |
| Overclocking key | - |
| +3.3V (A) | 24 |
| +5V (A) | 15 |
| +12V1 (A) | 28 |
| +12V2 (A) | 20 |
| +12V3 (A) | - |
| +12V4 (A) | - |
| +12V5 (A) | - |
| +12V6 (A) | - |
| -12V (A) | 0.3 |
| +5Vsb (A) | 3 |
| Max. combined power 12V (W) | 480 |
| Max. combined power 3.3V + 5V (W) | 120 |
| Hold-up time (ms @ 100%) | 23 |
Fan / Cooling technology
| Fan type | Silence-optimized be quiet! fan |
| +SilentWings | - |
| Motor technology | 4-pole fan motor |
| Bearing technology | Rifle |
| Fan size (mm) | 120 |
| Max. fan speed (rpm), temperature-dependent | 980 |
| Temperature control for case fans | - |

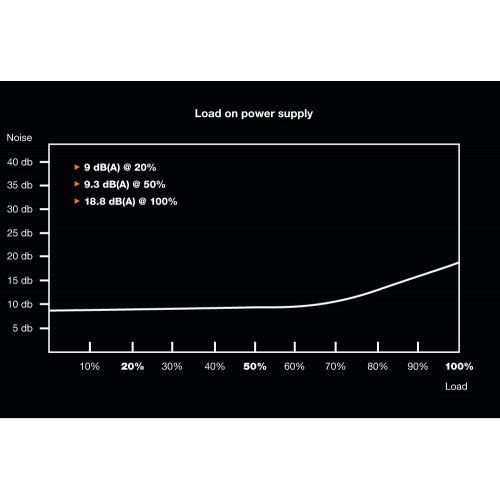

| dB(A) at 20% load | 9 |
| dB(A) at 50% load | 9.3 |
| dB(A) at 100% load | 18.8 |
Protection
| OCP (over current protection) | ✓ |
| OVP (over voltage protection) | ✓ |
| UVP (under voltage protection) | ✓ |
| SCP (short circuit protection) | ✓ |
| OTP (over temperature protection) | ✓ |
| OPP (over power protection) | ✓ |
Safety certification
| CE | ✓ |
| CB | ✓ |
| TÜV | ✓ |
| Nemko (N) | - |
| Semko (S) | - |
| Fimko (FI) | - |
| Demko (D) | - |
| FCC | ✓ |
| cRUus | - |
| cTUVus | ✓ |
| RCM (Australia) | ✓ |
| BSMI | ✓ |
| CU (Russia) | ✓ |
| CCC | ✓ |
Eco / Efficiency
| 80PLUS certification | Gold |
| Efficiency (%) at 230V, 20% load | 90.6 |
| Efficiency (%) at 230V, 50% load | 92.1 |
| Efficiency (%) at 230V, 100% load | 90.1 |
Environmental directives
| ENERGY STAR | 6.1 |
| ErP | ✓ |
| WEEE | ✓ |
| RoHS | ✓ |

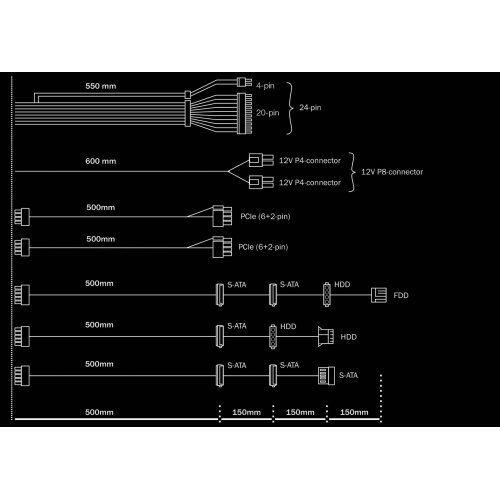

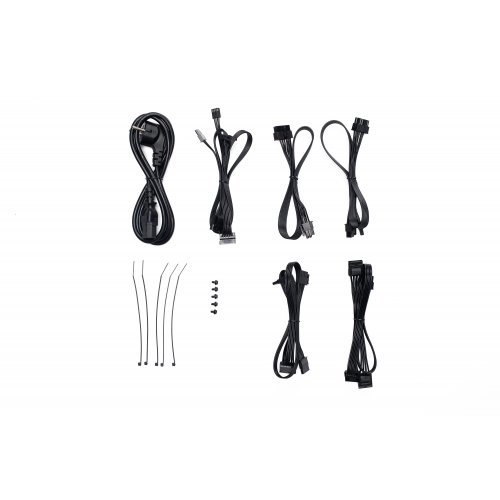

Cable management / Connectors
| Multi-GPU ready | ✓ |
| Modular cable management | ✓ |
| Fully modular | - |
| Sleeved cables | ✓ |
| Flat cables | PCIe, drives |
| Cable length to mainboard (cm) | 55 |
| Cable length to first connector (cm) | 50 |
| Maximum cable length (cm) | 95 |
| All-in-one cable (SATA/PATA/FDD) | ✓ |
| No. of cables | 7 |
| ATX-Motherboard (20+4-pin) | 1 |
| P8 (CPU) | - |
| P4+4 (CPU) | 1 |
| P4 (CPU) | - |
| PCI-E 6-pin (GPU) | - |
| PCI-E 6+2-pin (GPU) | 2 |
| PATA 4-pin | 3 |
| SATA 15-pin (HDD, Drives) | 6 |
| FDD (Floppy) | 1 |
| External fan connectors | - |
Casing
| Dimensions without cable (L x W x D), (mm) | 160 x 150 x 86 |
| Weight (kg) | 2.05 |
| Color | Black |
