Захранващ блок Be Quiet! System Power 9 600W BN247, 80 Plus Bronze
Все още няма оценка за продукта.Напиши ревю | Задай въпрос
Продуктът не се предлага в момента
Попитайте за дата на доставка:
(+359 2) 965 89 89
Цени за доставка:
- Безплатна доставка при поръчки над 99.99 лв.
- 8.40 лв. за доставка при поръчки до 99.99 лв.
- Всички поръчки могат да бъдат взети от офиса на JMT в гр. София, ж.к. Дианабад.
Условия и срокове за доставка:
- Поръчките се обработват и изпращат само в официални работни дни.
- Изпращането на пратка с куриер става по възможност в деня на получаването на поръчката или в най-близкия работен ден.
- Стандартният срок за доставка е до 3 работни дни в зависимост от графика на обслужване на съответната куриерска компания.

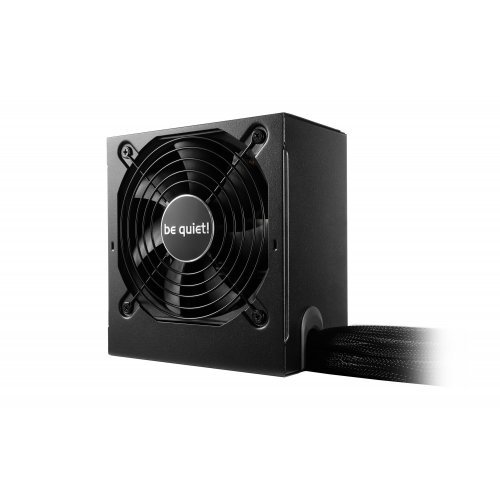

Be Quiet! System Power 9
SYSTEM POWER 9
600W
PROVEN RELIABILITY AND GOOD EFFICIENCY
be quiet! System Power 9 600W offers renowned be quiet! reliability and quietness for price-conscious PC builders.
- Rock-solid stability with two strong 12V-rails
- DC-to-DC technology for tight voltage regulation
- Multi-GPU support with four PCIe connectors
- Temperature-controlled 120mm fan reduces system noise
- Stand-by drain of less than 0.15 watts
- 80PLUS® Bronze efficiency (up to 89%)
- Attractive black sleeved cables
- Complete suite of top safety features
- Meets latest Intel® C6/C7, ErP and Energy Star 6.1 guidelines
- 3-year manufacturer’s warranty
- Product conception, design and quality control in Germany
VERY QUIET OPERATION
Attained by using a high-quality fan
System Power 9 600W is equipped with a temperature-controlled 120mm fan. It provides you with the low noise operation that be quiet! is famous for, built into an entry-level system.
80PLUS® BRONZE CERTIFICATION
High operating efficiency
The 80PLUS® Bronze certification is convincing evidence of this PSU’s efficient and power saving operation. It is a remarkable achievement for this class of PSU, realizing an efficiency rating of up to 89%.
HIGH PERFORMANCE FOR YOUR SYSTEM
Proven reliability for CPU and GPU
System Power 9 600W provides stable and dependable power for CPU and GPU. It is equipped with two independent 12V-rails and supports several graphics cards with four PCI express connectors for multi-GPU systems.
INNOVATIVE DC-TO-DC CONVERSION
Equipped with a wealth of advanced technology
The PSU is equipped with DC-to-DC conversion for tight voltage regulation, even under heavy cross-loading conditions. This ensures reliable operation and makes it ready for the next generation of processors and graphics cards.
HIGH-QUALITY CABLE DESIGN
Attractive design for high performance, cost-effective systems

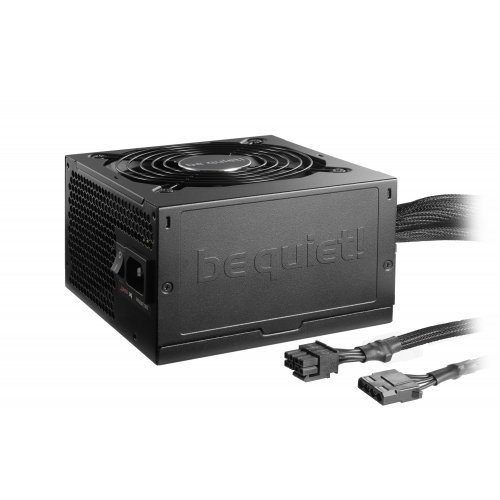

System Power 9 600W comes with full high-quality black sleeved cables that add a touch of class to any PC system.
COMPREHENSIVE PROTECTION
A complete range of safety features
Top component protection with a full suite of safety functions, including OCP, OVP, OPP, OTP UVP and SCP, which provide the ultimate in secure operation.
|
Model |
System Power 9 | 600W |
|
Continuous power (W) |
600 |
|
Peak power (W) |
- |
|
Form factor ATX 12V |
Version 2.4 |
|
Form factor EPS 12V |
Version 2.92 |
|
Modular cable management |
- |
|
Topology |
DC-DC |
|
Wire-free design (DC-side) |
- |
|
Voltage (Vac) |
200-240 |
|
Frequency (Hz) |
50 |
|
Input current (A) |
6 |
|
PFC |
active |
|
Power factor at 100% load |
>0.95 |
|
Compliant to Intel C6/C7 |
✓ |
|
Power consumption in standby (W) |
<0.15 |
|
Average life time (h / 25°C) |
100.000 |
|
Operating temperature up to (°C) |
40 |
Output
|
12V rails (multi-rail operation) |
2 |
|
12V single rail operation |
- |
|
Overclocking key |
- |
|
+3.3V (A) |
24 |
|
+5V (A) |
15 |
|
+12V1 (A) |
28 |
|
+12V2 (A) |
22 |
|
+12V3 (A) |
- |
|
+12V4 (A) |
- |
|
+12V5 (A) |
- |
|
+12V6 (A) |
- |
|
-12V (A) |
0.3 |
|
+5Vsb (A) |
3 |
|
Max. combined power 12V (W) |
576 |
|
Max. combined power 3.3V + 5V (W) |
120 |
|
Hold-up time (ms @ 100%) |
17 @ 75% load |
Fan / Cooling technology
|
Fan type |
high-quality fan |
|
+SilentWings |
- |
|
Motor technology |
4-pole fan motor |
|
Bearing technology |
Sleeve |
|
Fan size (mm) |
120 |
|
Max. fan speed (rpm), temperature-dependent |
2,100 |
|
Temperature control for case fans |
- |
|

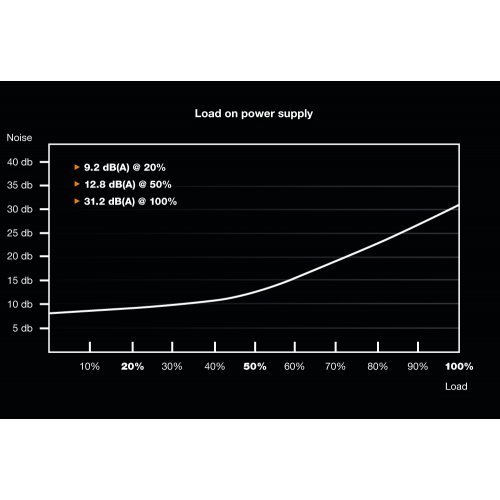

dB(A) at 20% load |
9.2 |
|
dB(A) at 50% load |
12.8 |
|
dB(A) at 100% load |
31.2 |
Protection
|
OCP (over current protection) |
✓ |
|
OVP (over voltage protection) |
✓ |
|
UVP (under voltage protection) |
✓ |
|
SCP (short circuit protection) |
✓ |
|
OTP (over temperature protection) |
✓ |
|
OPP (over power protection) |
✓ |
Safety certification
|
CE |
✓ |
|
CB |
✓ |
|
TÜV |
✓ |
|
Nemko (N) |
- |
|
Semko (S) |
- |
|
Fimko (FI) |
- |
|
Demko (D) |
- |
|
FCC |
- |
|
cRUus |
- |
|
cTUVus |
- |
|
RCM (Australia) |
✓ |
|
BSMI |
- |
|
CU (Russia) |
✓ |
Eco / Efficiency
|
80PLUS certification |
Bronze (230V EU internal) |
|
Efficiency (%) at 230V, 20% load |
87 |
|
Efficiency (%) at 230V, 50% load |
89 |
|
Efficiency (%) at 230V, 100% load |
86 |
Environmental directives
|
ENERGY STAR |
6.1 |
|
ErP |
✓ |
|
WEEE |
✓ |
|
RoHS |
✓ |
Cable management / Connectors
|
Multi-GPU ready |
✓ |
|
Modular cable management |
- |
|
Fully modular |
- |
|
Sleeved cables |
✓ |
|
Flat cables |
- |
|
Cable length to mainboard (cm) |
55 |
|
Cable length to first connector (cm) |
35 |
|
Maximum cable length (cm) |
91 |
|
All-in-one cable (SATA/PATA/FDD) |
- |
|
No. of cables |
6 |
|
ATX-Motherboard (20+4-pin) |
1 |
|
P8 (CPU) |
- |
|
P4+4 (CPU) |
1 |
|
P4 (CPU) |
- |
|
PCI-E 6-pin (GPU) |
- |
|
PCI-E 6+2-pin (GPU) |
4 |
|
PATA 4 pin |
2 |
|
SATA 15-pin (HDD, Drives) |
6 |
|
FDD (Floppy) |
- |
|
Mainboard connector (PATA 4-pin) |
2 |
|
External fan connectors |
- |
Casing
|
Dimensions without cable (L x W x D), (mm) |
140 x 150 x 86 |
|
Weight (kg) |
2.03 |
|
Color |
black |
Accessories
|
Thumb screws |
- |
|
Screws |
✓ |
|
Cable ties |
- |
|
Velcro cable ties |
- |
|
AC power cord (mm) |
1.500 |
|
Box/Bag for PSU/Cables |
- |
|
User manual languages |
EN, DE, FR, PL, ES, RU |
|
OCK slot bracket with switch / OCK jumper |
- |
|
SFX-to-ATX adapter bracket |
- |
Service
|
Warranty (Years) |
3 |
|
Express replacement service in first year |
- |
|
International hotline / free of charge |
✓ / DE, FR |
Logistics data, RRP
|
Range |
System Power |
|
Article number |
BN247 |
|
EAN code |
4260052186060 |
|
Dimensions, package (L x W x H), (mm) |
268 x 97 x 195 |
|
Gross weight, package (kg) |
2.35 |
|
Pieces per packaging unit |
6 |
|
Dimensions, shipping box (L x W x H), (mm) |
215 x 311 x 556 |
|
Gross weight, shipping box (kg) |
14.4 |
|
RRP (€) |
71.90 |
