Захранващ блок Be Quiet! System Power B9 350W BN207, 80 Plus

Продуктов код: 27155
Захранващ блок Be Quiet!
Захранващ блок Be Quiet! System Power B9 BN207 Захранващ блок Be Quiet! System Power B9 BN207 Захранващ блок Be Quiet! System Power B9 BN207 Захранващ блок Be Quiet! System Power B9 BN207
Захранващ блок Be Quiet!
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
Be Quiet!
Модел:
System Power B9
Партиден номер:
BN207
Гаранция:
36 месеца

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

  • Описание
  • Ревюта
  • Въпроси и отговори

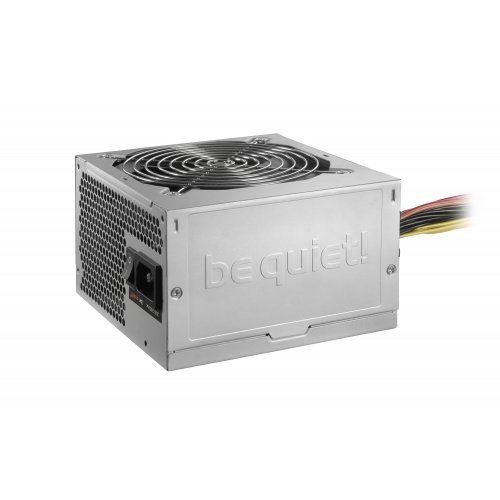

Be Quiet! System Power B9

SYSTEM POWER B9

350W (BULK)

PROVEN RELIABILITY AND GOOD EFFICIENCY

be quiet! System Power B9 350W (bulk) is specially designed to suit the needs of price-conscious PC builders.

  • Production-optimized bulk packaging
  • Rock-solid stability with two strong 12V-rails
  • One PCI express connector for GPU card support
  • Temperature-controlled 120mm fan reduces system noise
  • Stand-by drain of less than 0.13 watts
  • Certified 80PLUS® efficiency (up to 87%)
  • Complete suite of top safety features
  • Meets latest Intel® C6/C7, ErP and Energy Star 6.1 guidelines
  • 3-year manufacturer’s warranty
  • Product conception, design and quality control in Germany

OPTIMIZED FOR PROFESSIONAL SYSTEM INTEGRATORS

Cost effective and efficient handling

System Power B9 was designed to meet the needs of system integrators. The PSU is very cost-efficient and comes in production-optimized bulk packaging. This ensures quick and easy handling to streamline the production of pre-configured PCs.



Error! Filename not specified.



VERY QUIET OPERATION

Achieved by high-quality fan

System Power B9 350W is equipped with a temperature-controlled 120mm fan. This ensures its operation produces the low noise that be quiet! is famous for.

Error! Filename not specified.



HIGH PERFORMANCE FOR YOUR SYSTEM

Proven reliability for CPU and GPU

System Power B9 350W provides stable power for the CPU and GPU. It is equipped with two independent 12V-rails and one PCI express connector.

Error! Filename not specified.

COMPREHENSIVE PROTECTION

A complete range of safety features

Top component protection with a full suite of safety functions, including OCP, OVP, OPP, OTP UVP and SCP, which provide the ultimate in secure operation.



Model

System Power 9 | 350W bulk

Continuous power (W)

350

Peak power (W)

-

Form factor ATX 12V

Version 2.4

Form factor EPS 12V

-

Modular cable management

-

Topology

Double forward

Wire-free design (DC-side)

-

Voltage (Vac)

200-240

Frequency (Hz)

50

Input current (A)

3

PFC

active

Power factor at 100% load

>0.95

Compliant to Intel C6/C7

✓

Power consumption in standby (W)

<0.13

Average life time (h / 25°C)

100.000

Operating temperature up to (°C)

40



Output

12V rails (multi-rail operation)

2

12V single rail operation

-

Overclocking key

-

+3.3V (A)

19

+5V (A)

15

+12V1 (A)

20

+12V2 (A)

16

+12V3 (A)

-

+12V4 (A)

-

+12V5 (A)

-

+12V6 (A)

-

-12V (A)

0,3

+5Vsb (A)

2,5

Max. combined power 12V (W)

324

Max. combined power 3.3V + 5V (W)

103

Hold-up time (ms @ 100%)

17 @ 75% load

Fan / Cooling technology

Fan type

high-quality fan

+SilentWings

-

Motor technology

4-pole fan motor

Bearing technology

Sleeve

Fan size (mm)

120

Max. fan speed (rpm), temperature-dependent

1650

Temperature control for case fans

-

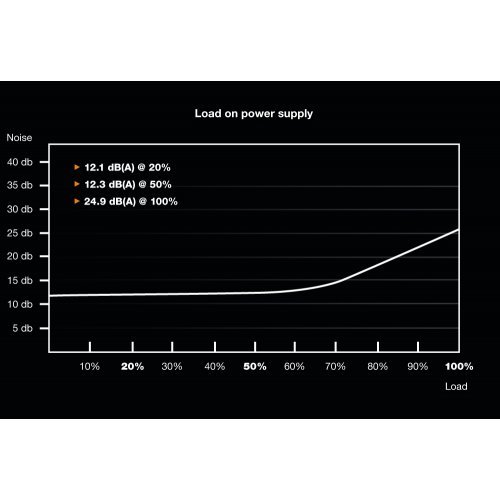

dB(A) at 20% load

12.1

dB(A) at 50% load

12.3

dB(A) at 100% load

24.9

Protection

OCP (over current protection)

✓

OVP (over voltage protection)

✓

UVP (under voltage protection)

✓

SCP (short circuit protection)

✓

OTP (over temperature protection)

✓

OPP (over power protection)

✓

Safety certification

CE

✓

CB

✓

TÜV

✓

Nemko (N)

-

Semko (S)

-

Fimko (FI)

-

Demko (D)

-

FCC

-

cRUus

-

cTUVus

-

RCM (Australia)

✓

BSMI

-

CU (Russia)

✓

Eco / Efficiency

80PLUS certification

Standard (230V EU internal)

Efficiency (%) at 230V, 20% load

84

Efficiency (%) at 230V, 50% load

87

Efficiency (%) at 230V, 100% load

84

Environmental directives

ENERGY STAR

6.1

ErP

✓

WEEE

✓

RoHS

✓

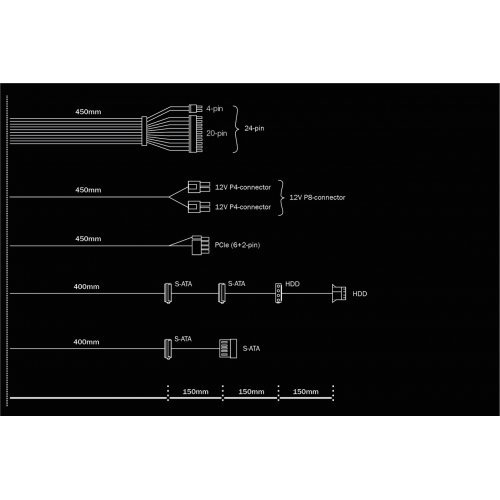

Cable management / Connectors

Multi-GPU ready

✓

Modular cable management

-

Fully modular

-

Sleeved cables

-

Flat cables

-

Cable length to mainboard (cm)

45

Cable length to first connector (cm)

40

Maximum cable length (cm)

85

All-in-one cable (SATA/PATA/FDD)

-

No. of cables

5

ATX-Motherboard (20+4-pin)

1

P8 (CPU)

-

P4+4 (CPU)

1

P4 (CPU)

-

PCI-E 6-pin (GPU)

-

PCI-E 6+2-pin (GPU)

1

PATA 4 pin

2

SATA 15-pin (HDD, Drives)

4

FDD (Floppy)

-

Mainboard connector (PATA 4-pin)

2

External fan connectors

-

Casing

Dimensions without cable (L x W x D), (mm)

86 x 150 x 140

Weight (kg)

1.6

Color

-

Accessories

Thumb screws

-

Screws

-

Cable ties

-

Velcro cable ties

-

AC power cord (mm)

1.500

Box/Bag for PSU/Cables

-

User manual languages

-

OCK slot bracket with switch / OCK jumper

-

SFX-to-ATX adapter bracket

-

Service

Warranty (Years)

3

Express replacement service in first year

-

International hotline / free of charge

✓ / DE, FR

Logistics data, RRP

Range

System Power

Article number

BN207

EAN code

4260052185995

Dimensions, package (L x W x H), (mm)

-

Gross weight, package (kg)

-

Pieces per packaging unit

10

Dimensions, shipping box (L x W x H), (mm)

195 x 525 x 545

Gross weight, shipping box (kg)

18.3

RRP (€)

-
