CISCO Embedded Wireless Controller on C9120AX Access Point

Name: CISCO Embedded Wireless Controller on C9120AX Access Point
Brand: Cisco
SKU: -
Availability: OutOfStock

Продуктов код: 72025

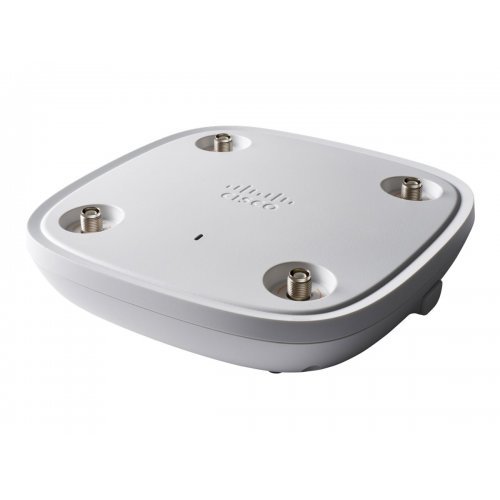

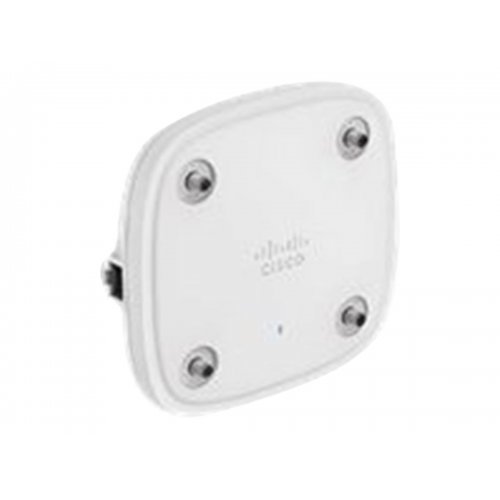

Access Point Cisco C9120AXE-EWC-E (снимка 1)

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос

Производител:

Cisco

Модел:

Партиден номер:

C9120AXE-EWC-E

Гаранция:

60 месеца

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

Cisco C9120AXE-EWC-E

Производител :	CISCO
Продуктов номер на производителя :	C9120AXE-EWC-E

Описание
The Cisco Catalyst 9120 Series Access Points are resilient, secure, and intelligent. The Catalyst 9120 provides integrated security, resiliency and operational flexibility as well as increased network intelligence. The Catalyst 9120 scales to the growing demands of IoT while fully supporting the latest innovations and modern technologies. Not only that, but the Catalyst 9120 is the leaders in performance, security and analytics. These access points are the first step in updating your network and are able to take better advantage of all of the features and benefits that Wi-Fi 6 provides.
ключови търговски точки/предимства
MU-MIMO technology Supporting four spatial streams, MU-MIMO enables access points to split spatial streams between client devices, to maximize throughput. Target wake time The power savings mode called Target Wake Time (TWT) allows the client to stay asleep and to wake up only at prescheduled (target) times to exchange data with the access point. This offers significant energy savings for battery-operated devices. Intelligent Capture Intelligent Capture probes the network and provides Cisco DNA Center with deep analysis. The software can track over 240 anomalies and instantaneously review all packets on demand, emulating the onsite network administrator. Intelligent Capture allows for more informed decisions on your wireless networks.
продукт:
Име на продукта:	CISCO Embedded Wireless Controller on C9120AX Access Point
Описание :	Cisco Catalyst 9120AXE - Radio access point - Bluetooth 5.0 - 802.15.4, Bluetooth, Wi-Fi 6 - 2.4 GHz, 5 GHz
EAN:	0889728267540

General
Device Type:	Radio access point
Ruggedized Design:	Indoor
Width:	21.6 cm
Depth:	21.6 cm
Height:	5.1 cm
Weight:	1.36 kg
Processor / Memory / Storage
RAM:	2 GB
Flash Memory:	1 GB
Networking
Form Factor:	External
Connectivity Technology:	Wireless
Line Coding Format:	OFDMA
Data Link Protocol:	IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac Wave 2, Bluetooth 5.0, IEEE 802.11ax (Wi-Fi 6)
Network / Transport Protocol:	IPSec, IPv6
Remote Management Protocol:	NETCONF, RESTCONF
Frequency Band:	2.4 GHz, 5 GHz
Status Indicators:	Status
Features:	DFS support, Access Control List (ACL) support, Quality of Service (QoS), Maximum Ratio Combining (MRC), Wireless Intrusion Prevention System (WIPS), Cisco VideoStream technology, radio resource management (RRM), cyclic shift diversity (CSD), beamforming technology, packet aggregation A-MPDU, packet aggregation A-MSDU, Pre-Shared Key (PSK), Dynamic Frequency Selection (DFS), Dynamic QoS, guest access, secure boot, 4x4:4 MU-MIMO technology, Target Wait Time (TWT), image signing, Cisco Trust Anchor module
Encryption Algorithm:	AES, TLS, PEAP, TTLS, WPA, WPA2, FIPS, EAP-SIM, EAP-FAST
Authentication Method:	MS-CHAP v.2, Extensible Authentication Protocol (EAP), EAP-FAST, EAP-SIM
Compliant Standards:	IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.11d, IEEE 802.1x, IEEE 802.11i, IEEE 802.11h, IEEE 802.11n, IEEE 802.3at, IEEE 802.11ac Wave 2, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.11ax, Wi-Fi CERTIFIED 6
Aerial
Antenna:	External detachable
Internet of Things (IoT)
Internet of Things (IoT) Compatible:	Yes
Communications Technology:	Bluetooth Low Energy (LE)
Expansion / Connectivity
Interfaces:	1 x 1/2.5GBase-T - RJ-45 1 x management - RJ-45 1 x USB 2.0 4 x aerial
Miscellaneous
Compliant Standards:	CISPR 24, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, AS/NZS 60950-1, RSS-102, UL 2043, UL 60950-1, IEC 60950-1, EN 60950-1, AS/NZS 4268, FCC CFR47 Part 15 C, FCC CFR47 Part 15 B, VCCI V-3, EN 62209-1, SRRC, EN 300 328, CNS 13438, EN 50385, EN 62209-2, EN 60601-1-1, EN 301 489-1, LP0002, RSS-247, KN32, AS/NZS CISPR 32 Class B, USGv6, TCVN 7189, EN 301 893, CISPR 32, EN 55032, CAN/CSA-C22.2 No. 60950-1, EN 55035, EMI Class B, EN 301 489-17, AS/NZS 2772, ARPANSA, KN 61000-3-2, KN 61000-3-3, KN 489-1, QCVN, KN 489-17, RSP-100, RSS-GEN
Power
Power Over Ethernet (PoE) Supported:	UPOE
Software / System Requirements
Software Included:	Cisco Embedded Wireless Controller software image

Environmental Parameters
Min Operating Temperature:	-20 °C
Max Operating Temperature:	50 °C
Humidity Range Operating:	10 - 90% (non-condensing)
