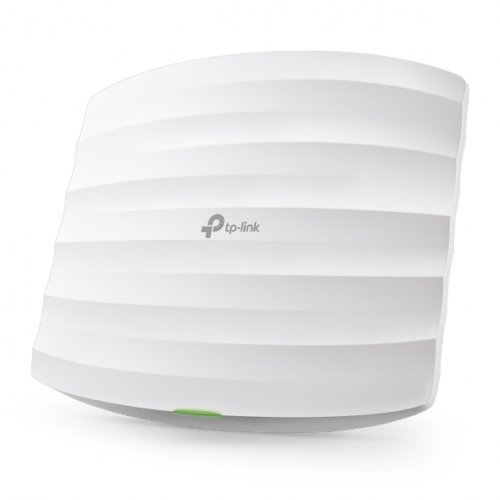

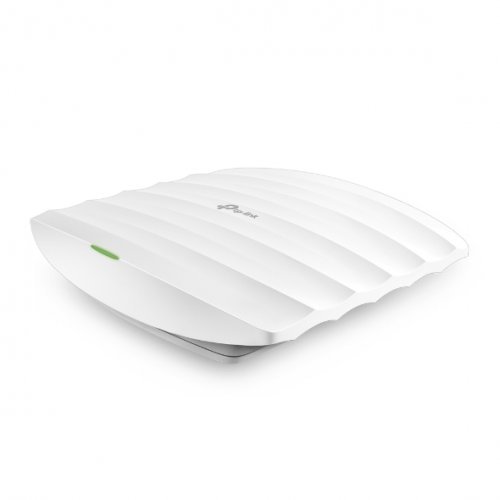

TP-Link TL-EAP110, 300Mbps Wireless N Ceiling Mount Access Point

Name: TP-Link TL-EAP110, 300Mbps Wireless N Ceiling Mount Access Point
Brand: TP-Link
SKU: TL-EAP110
Price: 68.87 BGN
Availability: OnlineOnly

Продуктов код: 12050

Точки за достъп (access point) > TP-Link TL-EAP110 (снимка 1)

Точки за достъп (access point) > TP-Link TL-EAP110

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос

Производител:

TP-Link

Модел:

TL-EAP110

Партиден номер:

Гаранция:

60 месеца

Цена с включен ДДС:

68.87 лв.

Гаранционен срок 60 месеца

Гаранционните условия са определени от производителя

Безплатна доставка за поръчки над 99.99лв. с ДДС

До всяко населено място в страната в рамките на 1-3 работни дни

ДОБАВИ В КОЛИЧКАТА

TP-Link TL-EAP110

EAP110 V1 Datasheet

300Mbps Wireless N Ceiling Mount Access Point
EAP110
EAP Controller Software enables administrators to easily manage hundreds of EAPs
Supports passive PoE for convenient installation up to 100meters
Ceiling mounting design with chassis make it easy to deploy on a wall or ceiling
Captive portal provides one convenient method of authentication for Wi-Fi guests
Multi-SSID divides multiple wireless networks for different users
Enterprise class Wi-Fi security help to decrease network security threats

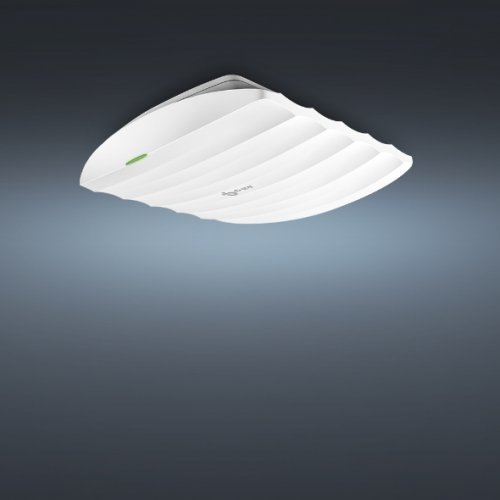

Flexible Placement
Easy mounting design & PoE
The EAP’s “ceiling lamp” appearance and easy mounting design with chassis make it easy to be integrated seamlessly into any wall or ceiling surface to blend in with most interior decorations. EAP110 support Passive PoE to make deployment effortless and flexible.

Business Class Wireless
Powerful Hardware
EAP110 features 802.11n Wi-Fi and 2*2 MIMO technology, wireless speeds of up to 300Mbps
With Qualcomm Atheros 560MHz chipsets, EAP ensures incredible wireless coverage and reliability

Free Centralized Management Platform
EAP Controller Software

EAP Controller Software enables users to manage hundreds of TP-LINK’s EAPs simultaneously and easily from PCs in the network, making centralized business Wi-Fi management efficient, visible and more cost-effective like never before.

Efficient Guest Authentication Captive Portal
Captive portal provides one convenient method of authentication for Wi-Fi guests. A captive portal requires users to perform certain actions before network access is allowed. The required action must be verified by an external portal server or customized database by the administrator, which can be simply viewing and agreeing to an acceptable use policy, or entering a user ID and password.

Applicable to Multi-user Environment
Designed for Business Performance

With easy mounting design, PoE power supply, Cluster feature, Centralized management software, Captive portal, Auto RF management, and business hardware, EAP series are specially designed for the high-density, most demanding business environments, including schools, hotels, and enterprises.

EAP Series	EAP110	EAP120	EAP220
Product	300Mbps Wireless N Access Point	300Mbps Wireless N Gigabit Access Point	N600 Wireless Dual Band Gigabit Access Point
Wireless Standards	IEEE 802.11 n/b/g	IEEE 802.11 n/b/g	IEEE 802.11 n/b/g/a
Speed	2.4GHz : 300Mbps	2.4GHz : 300Mbps	2.4GHz : 300Mbps 5GHz : 300Mbps
Ethernet Port	*10/100Mbps Port1**	*Gigabit Port1**	*Gigabit Port1**
PoE	Passive PoE	802.3af	802.3af
Internal Antennas	*2 3dBi**	*2 4dBi**	*4 4dBi**
EAP Controller	√	√	√
Multiple SSIDs	8	8	16
Captive Portal	√	√	√
MAC Filtering	√	√	√
Wireless Schedule	√	√	√
Rogue AP Detection	√	√	√
Automatic RF Management	√	√	√

Note:
For EAP120 that’s currently supporting cluster function, please upgrade the device’s firmware to the latest to be compatible with the EAP controller software.

HARDWARE FEATURES

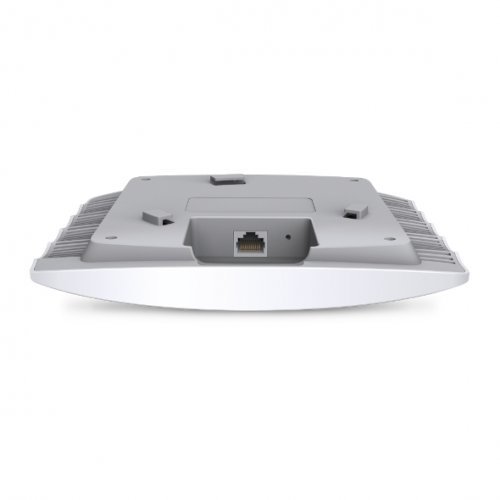

Interfaces	Fast Ethernet (RJ-45) Port *1（Support Passive PoE）
Button	Reset
Power Supply	24VDC / 1A Passive PoE Supply
Power Consumption	7.7W
Wireless Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Dimensions ( W x D x H )	7.1 x 7.1 x 1.9 in. (18018047.5mm)
Antenna Type	Internal 2* 3dBi Omni
Mounting	Ceiling /Wall Mounting (Kits included)
Physical Security Lock	Kensington Lock Slot
Watch Dog	Yes

WIRELESS FEATURES
Wireless Standards	IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency	2.4-2.4835GHz
Signal Rate	11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic)
Reception Sensitivity	300M: -71dBm@10% PER 150M: -75dBm@10% PER 54M: -78dBm@10% PER 11M: -93dBm@8% PER 6M: -92dBm@10% PER 1M: -96dBm@8% PER
Wireless Functions	Multiple SSIDs （Up to 8 SSIDs） Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control （Adjust Transmit Power on dBm） QoS(WMM) Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client
Wireless Security	Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support 64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
Transmission Power	CE: <20dBm FCC: <26dBm

MANAGEMENT
EAP Controller Software	Yes
Email Alerts	Yes
LED ON/OFF Control	Yes
Management MAC Access Control	Yes
SNMP	v1,v2c
System Logging Local/Remote Syslog	Local/Remote Syslog
Telnet	Yes
Web-based Management	HTTP/HTTPS

OTHERS
Certification	CE, FCC, RoHS
Package Contents	300Mbps Wireless N Ceiling Mount Access Point EAP110 Passive PoE Adapter, Power Cord, Mounting Kits, Resource CD Installation Guide
System Requirements	Microsoft Windows 8/7/Vista/XP
Environment	Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
