Cougar VTE 600W, 80 Plus Bronze

Все още няма оценка за продукта. Напиши ревю | Задай въпрос
Захранващ блок Cougar
Продуктов код:
24917
Производител:
Cougar
Модел:
VTE 600
Партиден номер:
CG31VE0600003P
Гаранция:
24 месеца

Продуктът не се предлага в момента

  • Информация за Cougar VTE 600

  • Ревюта
  • Въпроси и отговори

Extremely High Efficiency

Up to 87% of efficiency.

COUGAR VTE - POWER SUPPLY

Ultra Stable Voltage Outputs

DC to DC technology in VTE series, in which the 3.3V are built out of the 12V Rail, provides highest efficiency, most stable performance, and perfect regulation within ±3% at regular DC outputs.

COUGAR LX - POWER SUPPLYAccording to Design Guide for Power Supply from Intel, the DC output voltages are required to remain within the ±5% regulation ranges in 3.3V, 5V and 12V rails.
COUGAR STE - POWER SUPPLY

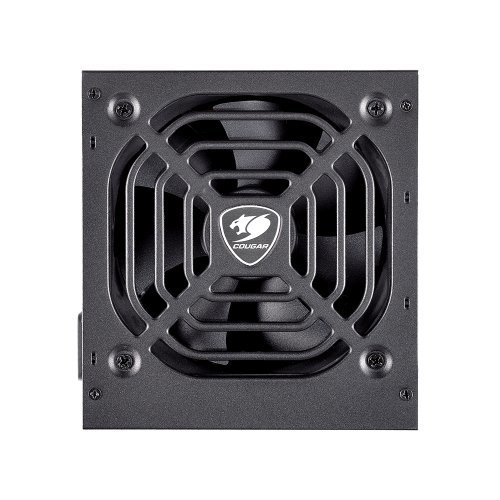

120mm Ultra-Silent Fan

Ultra-quiet & Temperature-controlled 120mm fan. Better power output with thermal control. Extremely low noise level, fan speed automatically regulated according to the temperature.

Massive Single +12V DC Output

Extreme performance for powerful graphic systems

COUGAR STE - POWER SUPPLY
Comparison based on VTE600’s performance data.

Features

    • Extremely High Efficiency

      Up to 87% of efficiency

    • Ultra-Stable Voltage Output

      3.3V DC-DC technology for enhanced voltage ability


    • 105°C Japanese Standby Capacitor

      Increase the PSU life-span

    • Compatible With the Latest PC-Technology

      Support the newest specifications of ATX12V Created for usage with current and next-generation multi-core CPU platforms


    • Ultra-Quiet & Temperature-Controlled 120mm Fan

      Extremely low noise level, equipped with a large and ultra-quiet 120mm fan

    • Integrated Air Inlet Design

      Optimal air-dynamical design, lead to more silent operation


    • Massive Single 12V DC Output

      Extreme stability for powerful graphic systems

    • Support Multi-GPU Technology

      Supports PCI express 3.0 next-generation graphics cards with 8(6+2) pin PCI-e connector.


  • Active Power Factor Correction (Active PFC)

    PF value up to 99%, provides clean and reliable power

  • Full Protections With OCP, SCP, OVP, UVP, OPP

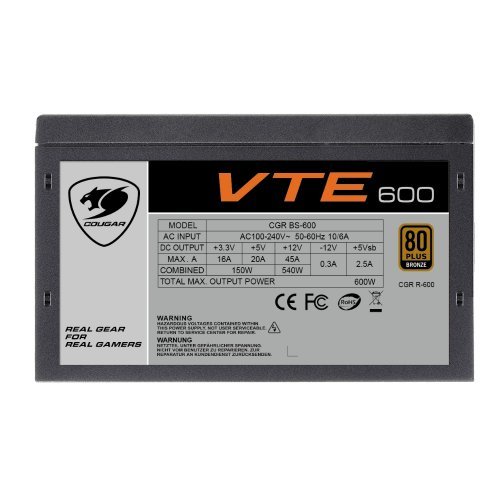

Specifications

Model Name AC Input DC output
+3.3V +5V +12V -12V +5Vsb Total
VTE400
CGR BS-400
100-240V
50-60Hz 6.5-4A
16A 18A 30A 0.3A 2.5A 400W
120W 360W
VTE500
CGR BS-500
100-240V
50-60Hz 10-6A
16A 18A 37.5A 0.3A 2.5A 500W
135W 450W
VTE600
CGR BS-600
16A 20A 45A 0.3A 2.5A 600W
150W 540W
Connector Main CPU Peripherals S-ATA PCI-E
Pin 24(20+4) Pins 8(4+4) Pins
8 Pins
4 Pins 5 Pins 8(6+2) Pins
VTE400 1 1 2 4 1
VTE500 1 1 2 5 2
VTE600 1 1 2 6 2

Protection

  • OCP (Overcurrent protection)

    If the current on a single line is higher than indicated, the PSU automatically switches off.

  • UVP (Under voltage protection)

    If the voltages fall below a certain tolerance value on the single lines, the PSU automatically switches off.

  • OVP (Over voltage protection)

    If the voltages increase above a certain tolerance value on the single lines, the PSU automatically switches off.

  • SCP (Short-circuit protection)

    In the case of a short-circuit this feature prevents damage to the core components of the PSU and its system components.

  • OPP (Over power protection)

    If the system is oversized and requires more power from the PSU than it can perform, this protection function is activated.
