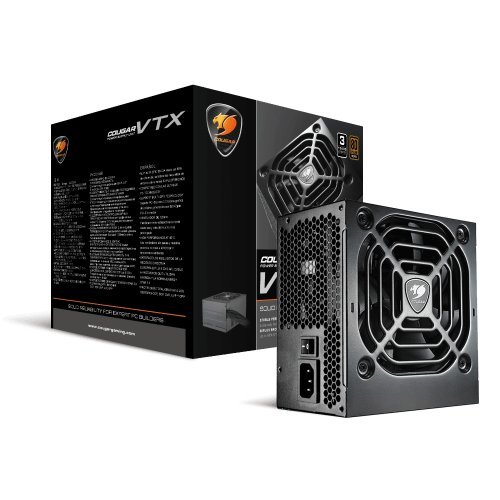

Захранващ блок Cougar VTX 500W, 80 Plus Bronze

Продуктов код: 27601
Захранващ блок Cougar
Захранващ блок Cougar VTX CG31TC0500132 Захранващ блок Cougar VTX CG31TC0500132 Захранващ блок Cougar VTX CG31TC0500132 Захранващ блок Cougar VTX CG31TC0500132 Захранващ блок Cougar VTX CG31TC0500132 Захранващ блок Cougar VTX CG31TC0500132 Захранващ блок Cougar VTX CG31TC0500132
Захранващ блок Cougar
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
Cougar
Модел:
VTX
Партиден номер:
CG31TC0500132
Гаранция:
24 месеца
Цена с включен ДДС:
85.61 лв.
/
43.77
Гаранционен срок 24 месеца

Гаранционните условия са определени от производителя

Безплатна доставка за поръчки над 99.99лв. с ДДС

До всяко населено място в страната в рамките на 1-3 работни дни

ДОБАВИ В КОЛИЧКАТА
  • Описание
  • Ревюта
  • Въпроси и отговори

Cougar VTX

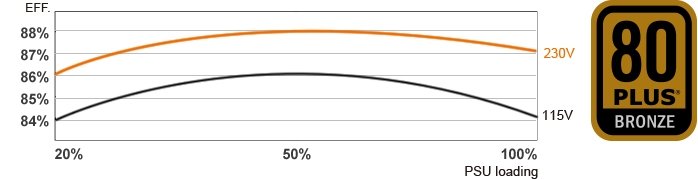

80-PLUS® Bronze Certified

Extremely High Efficiency - up to 88% of efficiency. Reduce your electricity bill.

COUGAR VTX - POWER SUPPLY

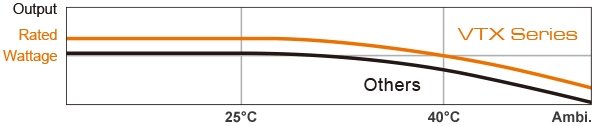

Extremely Reliable at 40°C/104°F

The high quality MOSFETs and capacitors and the advanced engineering used in VTX allow it to achieve high levels of performance in realistic environments.

COUGAR VTX - POWER SUPPLY
COUGAR STE - POWER SUPPLY

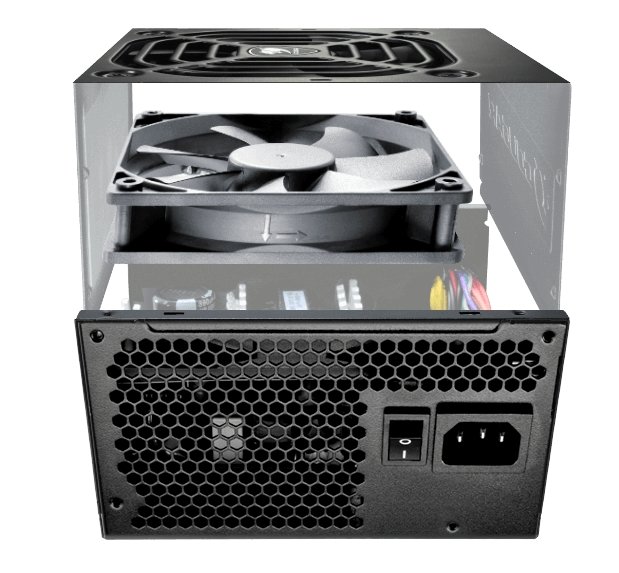

120mm Ultra-Silent Fan

Ultra-quiet & Temperature-controlled 120mm fan. Better power output with thermal control. Extremely low noise level, fan speed automatically regulated according to the temperature.

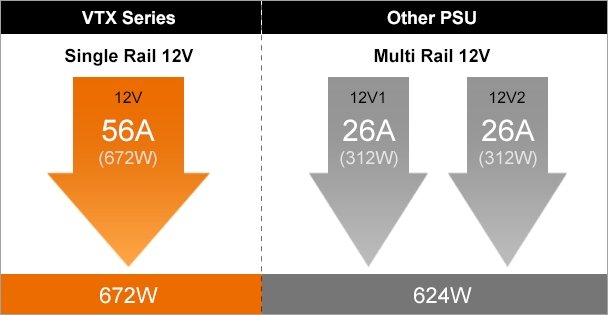

Massive Single +12V DC Output

Extreme stability for powerful graphic systems.

COUGAR STE - POWER SUPPLY
Comparison based on VTX700’s performance data.

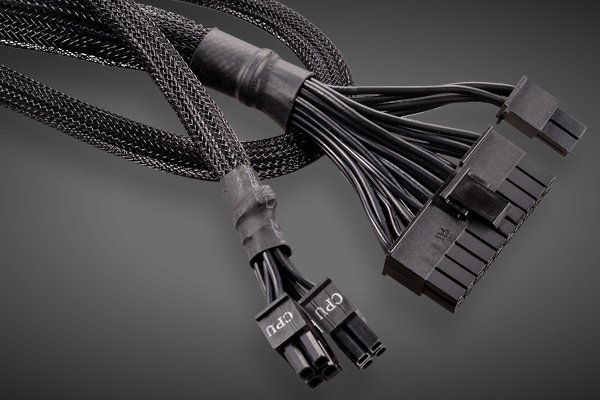

Full Black Sleeved Cables

Aesthetics and quality meet in VTX’s completely black cables, which will allow you to fuel your computer without affecting its looks.

COUGAR VTX - POWER SUPPLY

Features

    • Extremely High Efficiency

      80-PLUS Bronze certified, up to 88% of efficiency

    • Compatible With the Latest PC-Technology

      Support the newest specifications of ATX12V Created for usage with current and next-generation multi-core CPU platforms


    • Support Multi-GPU Technology

      Support PCI Express 3.0 next-generation graphic card with 8(6 2)pin PCI-E connector

    • Ultra-Quiet & Temperature-Controlled 120mm Fan

      Extremely low noise level, equipped with a large and ultra-quiet 120mm fan


    • Integrated Air Inlet Design

      Optimal air-dynamical design, lead to more silent operation

    • High Performance at 40°C/104°F

      Non-stop high performance and full rated wattage at 40°C/104°F ambient temperature


    • Compliant With Latest ErP Lot 6 2013

      Energy consumption in Standby is <0.5W, compliant with economy-friendly electrical equipment

    • Supports The Energy Star 5.0

      Compatible with Energy Star 5.0 computer system


  • Full Protections With OCP, SCP, OVP, UVP, OPP
  • Active Power Factor Correction (Active PFC)

    PF value up to 99%, provides clean and reliable power



Model Name AC Input DC output
+3.3V +5V +12V -12V +5Vsb Total
VTX400
CGR BS-400
100-240Vac
50-60Hz 8-4A
24A 15A 32.5A 0.3A 3A 400W
120W 388W
VTX450
CGR BS-450
24A 15A 35A 0.3A 3A 450W
120W 420W
VTX500
CGR BS-500
100-240Vac
50-60Hz 10-5A
24A 20A 38.5A 0.3A 3A 500W
120W 460W
VTX600
CGR BS-600
24A 20A 49A 0.3A 3A 600W
130W 588W
VTX700
CGR BS-700
100-240Vac
50-60Hz 10-6A
24A 20A 56A 0.3A 3A 700W
150W 672W
Connector Main CPU Peripherals S-ATA PCI-E
Pin 24(20+4) Pins 8(4+4) Pins
8 Pins
4 Pins 5 Pins 8(6+2) Pins
VTX400 1 1 3 4 1
VTX450 1 1 3 4 2
VTX500 1 1 3 5 2
VTX600 1 1 3 5 2
VTX700 1 1 3 8 4
COUGAR GX-S - POWER SUPPLY

Protection

  • OCP (Overcurrent protection)

    If the current on a single line is higher than indicated, the PSU automatically switches off.

  • UVP (Under voltage protection)

    If the voltages fall below a certain tolerance value on the single lines, the PSU automatically switches off.

  • OVP (Over voltage protection)

    If the voltages increase above a certain tolerance value on the single lines, the PSU automatically switches off.

  • SCP (Short-circuit protection)

    In the case of a short-circuit this feature prevents damage to the core components of the PSU and its system components.

  • OPP (Over power protection)

    If the system is oversized and requires more power from the PSU than it can perform, this protection function is activated.


Safety Requirement
COUGAR VTX - Safety & EMI Certification
