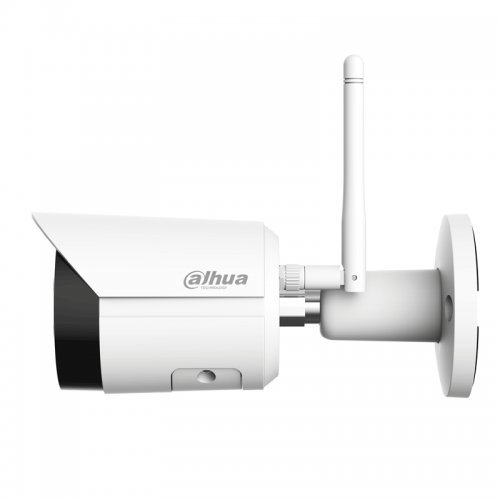

IP камера Dahua IPC-HFW1230DS-SAW-0280B Wi-Fi 2MP 2.8mm DC12V

#

• IPC-HFW1230DS-SAW

  2MP IR Fixed-focal Wi-Fi Bullet Network Camera

  > 2-MP 1/3" CMOS image sensor, low luminance, and high definition image.
  > Outputs max. 2 MP (1920 × 1080) @25/30 fps.
  > H.265 codec, high compression rate, ultra-low bit rate.
  > Built-in IR LED.
  > SMART H.264 +/H.265+, flexible coding, applicable to various bandwidth and storage environments.
  > DWDR, 3D NR, BLC, digital watermarking, applicable to various monitoring scenes.
  > Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, SMD (human).
  > Supports antenna 2.4G Wi-Fi, up to 80m range in open area.
  > Supports max. 256 G Micro SD card.Built-in MIC .
  > 12 VDC power supply.
  > IP67 protection.

Accessories optional: PFA134 , PFA152

https://www.jmt.bg/dahua-pfa134-pid29614

https://www.jmt.bg/dahua-pfa152-e-pid29580

• General
• Case Type:

  Bullet

• Серия:

  Wireless

• Image Sensor:

  1/3” 2 Megapixel progressive CMOS

• RAM/ROM:

  64 MB/16 MB

• Resolution:

  1080p (1920 × 1080)

• Резолюция_видеонаблюдение:

  2 Mp

• Scanning System:

  Progressive

• Electronic Shutter Speed:

  Auto/Manual 1/3 s–1/100000 s

• Minimum Illumination:

  0.025 lux@F2.0 (Color,30 IRE) 0.0025 lux@F2.0 (B/W,30 IRE) 0 lux (Illuminator on)

• Day/Night:

  Auto (ICR)/Color/B/W

• IR backlight to:

  30 meters

• IR On/Off Control:

  Auto / Manual

• IR LEDs:

  1

• Camera
• IRE:

  30, 0Lux IR on

• S/N Ratio:

  > 56dB

• Pan/Tilt/Rotation:

  0°–360° (pan); 0°–90° (tilt); 0°–360° (rotation)

• Lens
• Lens type:

  Fixed

• Focal Length:

  2.8 mm

• Mount Type:

  M12

• Max Aperture:

  F2.0

• Angle of View:

  100° (H)

• Iris Type:

  Fixed aperture

• Close Focus Distance:

  0.6 m

• Video
• Frame Rate:

  Main stream: 1920 × 1080@ (1–25/30 fps) Sub stream: 704 × 576@ (1–25 fps) 704 × 480@ (1–30 fps)

• Video Compression:

  H.265; H.264; H.264H; H.264B

• Smart Codec:

  Smart H.265+/ Smart H.264+

• Streaming Capability:

  2 streams

• Bandwidth:

  36 Mbps incoming bandwidth

• Bit Rate:

  H264: 24 kbps–4096 kbps; H265: 9 kbps–4096 kbps

• Bit Rate Control:

  CBR/VBR

• BLC:

  Yes

• WDR:

  DWDR

• White Balance:

  Auto/natural/street lamp/outdoor/manual/regional custom

• Gain Control:

  Auto

• Noise Reduction:

  3D NR

• Smart light (IR/white):

  Yes

• Flip:

  0° / 180°

• Mirror:

  Yes

• Region of Interest:

  Yes

• Artificial Intelligence
• Alarm Prompt:

  No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; SMD (human)

• Certification
• Certifications:

  CE-LVD: EN62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU; CE-RED: Radio Equipment Directive 2014/53/EU; FCC: 47 CFR FCC Part 15, Subpart B; FCC ID: FCC PART 15C

• Port
• Built-in Microphone:

  Yes

• SD card:

  Micro SD up to 256 GB

• Network
• Wi-Fi:

  IEEE802.11b/g/n 2.4–2.4835 GHz

• Ethernet:

  RJ-45 (10/100 Base-T)

• Mobile App:

  Android, iOS

• Network Function:

  IPv4; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; DHCP; DNS; NTP; Multicast; RTMP

• Interoperability:

  ONVIF (Profile S/Profile G); CGI; P2P

• Max. User Access:

  6

• Web Viewer:

  Chrome; IE9 or later; Firefox

• Management Software:

  Smart PSS, DSS, DMSS

• Съвместими аксесоари:

  PFA134, PFA152-E

• Power
• Power Supply:

  12V DC

• Power Consumption:

  < 4.1W

• Environment
• Operating Temperature:

  - 40°C to + 60°C

• Operating RH:

  < 95% RH

• Storage Temperature:

  - 30°C to + 60°C

• Protection:

  IP67

• Construction
• Casing:

  Metal

• Dimensions:

  166.2 mm × 70.0 mm × 128.6 mm

• Net Weight:

  0.4779 kg

• Gross Weight:

  0.6965 kg

• Shipping package
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  7 x 7 x 16.62; Weight: 0.6965 kg.;
