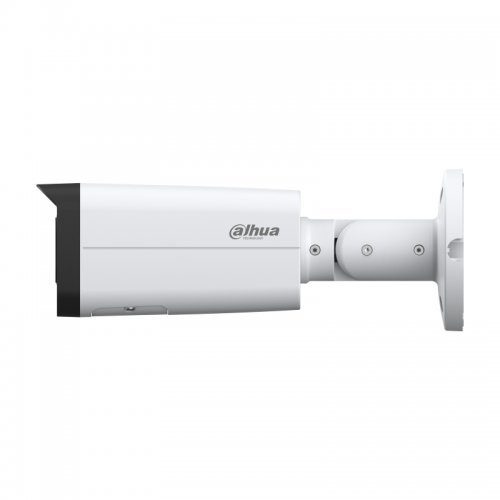

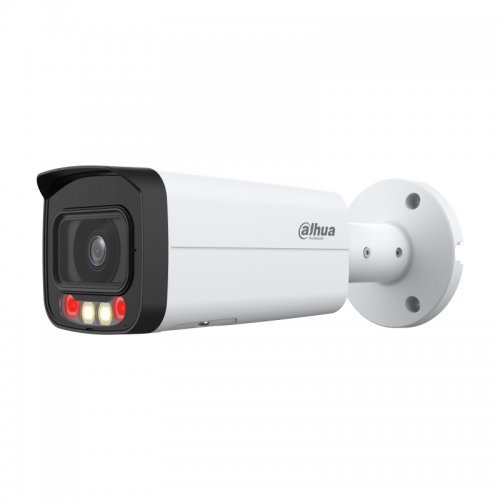

IP камера Dahua IPC-HFW2849T-AS-IL-0360B

Technical information

• General
• Case Type:

  Bullet

• Series:

  WizSense

• Image Sensor:

  1/2.7” 8 Megapixel Progressive CMOS

• RAM/ROM:

  256 MB/128 MB

• Resolution:

  8M (3840 × 2160)

• Resolution_surveillance:

  8 Mp

• Scanning System:

  Progressive

• Electronic Shutter Speed:

  Auto/Manual 1/3 s–1/100000 s

• Minimum Illumination:

  0.008 Lux@F1.6 (Color, 30 IRE) 0.0008 Lux@F1.6 (B/W, 30 IRE) 0 lux (Illuminator on)

• Day/Night:

  Auto (ICR)/Color/B/W

• IR backlight to:

  60 meters

• IR On/Off Control:

  Auto / Manual

• IR LEDs:

  2

• Fill Light (White Light) Distance:

  50 m

• Fill Light On/Off Control:

  Auto / Manual

• Fill Light Number:

  2

• Storage:

  FTP; SFTP; Micro SD card (256 G)

• Camera
• IRE:

  30, 0Lux IR on

• S/N Ratio:

  > 56dB

• Pan/Tilt/Rotation:

  0°–360° (pan); 0°–90° (tilt); 0°–360° (rotation)

• Lens
• Lens type:

  Fixed

• Focal Length:

  3.6 mm

• Mount Type:

  M12

• Max Aperture:

  F1.6

• Angle of View:

  87° (H)

• Focus Control:

  Fixed

• Close Focus Distance:

  1.9 m

• Video
• Frame Rate:

  Main stream: 3840 × 2160@(1–20 fps )/2688×1520@(1–25/30 fps) Sub stream: 704 × 576@(1–25 fps)/704 × 480@(1–30 fps)

• Video Compression:

  H.265; H.264; H.264H; H.264B; MJPEG (only supported by sub stream)

• Smart Codec:

  Smart H.265+/ Smart H.264+

• Streaming Capability:

  2 streams

• Bandwidth:

  48 Mbps incoming bandwidth

• Bit Rate:

  H.264: 32 kbps–8192 kbps H.265: 12 kbps–8192 kbps

• Bit Rate Control:

  CBR/VBR

• BLC:

  BLC / HLC / WDR

• WDR:

  120dB

• White Balance:

  Auto/natural/street lamp/outdoor/manual/regional custom

• Gain Control:

  Auto / Manual

• Noise Reduction:

  3D NR

• Smart light (IR/white):

  Yes

• Flip:

  0°/90°/180°/270° (Supports 90°/270° with 2688 ×1520 resolution and lower.)

• Mirror:

  Yes

• Privacy Masking:

  4 areas

• Region of Interest:

  Yes

• Lowlight performance technology:

  Full-Color

• Full-Color:

  Yes

• Perimeter Protection
• Performance:

  Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)

• AI Search:

  Intelligent Search (Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos.)

• AI Functions:

  Intrusion , Perimeter protection , Privacy masking , ROI (Region of interest) , Smart Dual Illuminators , Tripwire

• Artificial Intelligence
• Motion Detection:

  Yes

• Full Color технология:

  Yes

• IVS / Intelligent Video Surveillance :

  Tripwire, Intrusion

• Alarm Prompt:

  No SD card; SD card full; SD card error; network disconnected; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; SMD; voltage detecton; security excepton

• Certification
• Certifications:

  CE-LVD: EN62368-1, CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU, FCC: 47 CFR FCC Part 15, Subpart B, UL/CUL:UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

• Port
• Audio Input:

  1-channel (RCA port)

• Audio Output:

  1-channel (RCA port)

• Alarm Input:

  1 channel in: 5mA 3V–5V DC

• Alarm Output:

  1 channel out: 300mA 12V DC

• Audio Compression:

  G.711a; G.711Mu; G.726; PCM

• Built-in Microphone:

  Yes

• SD card:

  Micro SD up to 256 GB

• Network
• Ethernet:

  RJ-45 (10/100 Base-T)

• Mobile App:

  Android, iOS

• Network Function:

  IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Boujour; P2P

• Interoperability:

  ONVIF (Profile S/Profile T/Profile G); CGI

• Max. User Access:

  20

• Web Viewer:

  Chrome; IE9 or later; Firefox

• Management Software:

  Smart PSS Lite; DSS; DMSS

• Compatible accessories:

  PFA130-E, PFA152-E

• Power
• Power Supply:

  12V DC/PoE (802.3af)

• Power Consumption:

  Max 7 W (12 VDC); 8.3 W (PoE)

• Environment
• Operating Temperature:

  - 40°C to + 60°C

• Operating RH:

  < 95% RH

• Storage Temperature:

  - 40°C to + 60°C

• Protection:

  IP67

• Construction
• Casing:

  Metal

• Dimensions:

  238.5 mm × 90.7 mm × 90.7 mm

• Net Weight:

  0.72 kg

• Gross Weight:

  0.97 kg

• Shipping package - DAHUA IPC-HFW2831T-AS-0360B-S2
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  9.07 x 9.07 x 23.85; Weight: 0.97 kg.;
