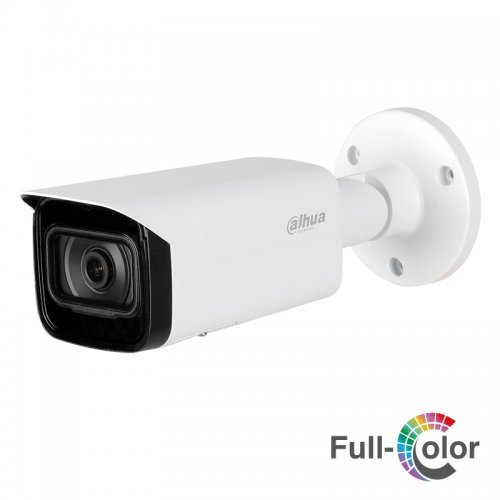

IP камера Dahua IPC-HFW5449T-ASE-NI-0360

Technical information

• General
• Case Type:

  Bullet

• Image Sensor:

  1/1.8” 4 Megapixel Progressive CMOS

• Effective Pixels:

  4MP

• RAM/ROM:

  1 GB/128 MB

• Resolution:

  2688 × 1520/2560 × 1440/2304 × 1296/1080P (1920 × 1080)/1.3M (1280 × 960)/720P (1280 × 720)/D1 (704 × 576/704 × 480)/VGA (640 × 480)/CIF (352 × 288/352 × 240)

• Scanning System:

  Progressive

• Electronic Shutter Speed:

  Auto/Manual 1/3 s–1/100000 s

• Minimum Illumination:

  0.001 Lux @F1.0

• Day/Night:

  Color/B/W

• Storage:

  FTP; SFTP; Micro SD card (256 G); NAS

• Camera
• Pan/Tilt/Rotation:

  0°-360°(pan.); 0°-90°(tilt); 0°-360° (rotation)

• Lens
• Lens type:

  Fixed

• Focal Length:

  3.6 mm

• Mount Type:

  Board-in

• Max Aperture:

  F1.0

• Angle of View:

  H: 93°, V: 50°

• Iris Type:

  Fixed aperture

• Close Focus Distance:

  2 m

• Video
• Frame Rate:

  Main Stream: 2688 × 1520 (1 fps–25/30 fps) 2560 × 1440 (1 fps–25/30 fps) 1920 × 1080 (1 fps–50/60 fps) Sub Stream: D1 (1 fps–25/30 fps) D1 (1 fps–50/60 fps) Third Stream: 1080P (1 fps–16 fps)

• Video Compression:

  H.265; H.264; H.264H; H.264B; MJPEG (only supported by sub stream)

• Smart Codec:

  Yes

• Streaming Capability:

  3 streams

• Bit Rate:

  H.264: 32 Kbps–8192 Kbps; H.265: 19 Kbps–8192 Kbps

• Bit Rate Control:

  CBR/VBR

• BLC:

  BLC / HLC / WDR / SSA

• WDR:

  140dB

• White Balance:

  Auto/Natural/Street Lamp/Outdoor/Manual

• Gain Control:

  Auto / Manual

• Noise Reduction:

  3D DNR

• Flip:

  0°/90°/180°/270°

• Mirror:

  Off/On

• Privacy Masking:

  Off/On (4 area, rectangle)

• Region of Interest:

  Yes

• Electronic Defog:

  Yes

• Perimeter Protection
• Performance:

  Tripwire, intrusion (Recognition of vehicle and people), fast moving, loitering detection, parking detection and people gathering

• Artificial Intelligence
• Motion Detection:

  Yes

• Advanced Intelligent Functions:

  Abandoned object; missing object; heat map, Support face image capture

• People counting:

  Support Line crossing/Region/Queueing people counting; Support 4 accesses independent detection, 4 areas independent detection

• Trigger Events:

  Motion detection, Video tampering, Scene changing, Network disconnection, Ip address conflict, Illegal access, Storage anomaly

• Certification
• Certifications:

  CE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

• Port
• Alarm Input:

  1 channel in: 5mA 3V–5V DC

• Alarm Output:

  1 channel out: 300mA 12V DC

• Audio Port:

  1 Channel Input, 1 Channel Output

• Audio Compression:

  G.711a, G.711Mu, G.726, AAC, G.723

• SD card:

  Micro SD up to 256 GB

• Network
• Ethernet:

  RJ-45 (10/100 Base-T)

• Mobile App:

  Android, iOS

• Network Function:

  IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP

• Interoperability:

  ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P

• Max. User Access:

  20

• Streaming Method:

  Unicast / Multicast

• Web Viewer:

  IE, Chrome, Firefox, Safari

• Management Software:

  Smart PSS, DSS, DMSS

• Power
• Power Supply:

  DC 12V (±30%), PoE (802.3af) (Class 0)

• Power Consumption:

  < 4.4W

• Environment
• Operating Temperature:

  - 30°C to + 60°C

• Operating RH:

  < 95% RH

• Storage Temperature:

  - 30°C to + 60°C

• Protection Grade:

  IP67

• Construction
• Casing:

  Metal

• Dimensions:

  244.1 mm × 79.0 mm × 75.9 mm

• Net Weight:

  0.805 kg

• Gross Weight:

  1.16 kg
