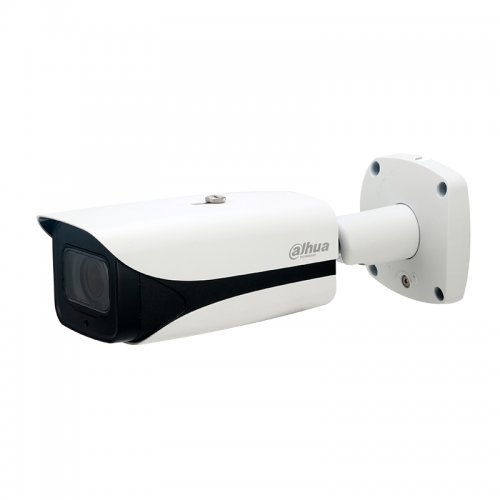

IP камера Dahua IPC-HFW5541E-Z5E-0735

Technical information

• General
• Case Type:

  Bullet

• Image Sensor:

  1/2.7” 5 Megapixel Progressive CMOS

• Effective Pixels:

  5MP

• RAM/ROM:

  1 GB/128 MB

• Resolution:

  2592×1944(2592×1944); 2688×1520(2688×1520); 3M(2048×1536); 2304×1296(2304×1296); 1080p(1920×1080); 1.3M (1280 × 960); 720p(1280×720); D1(704× 576/704×480); VGA(640×480); CIF(352×288/352×240)

• Scanning System:

  Progressive

• Electronic Shutter Speed:

  Auto/Manual 1/3 s–1/100000 s

• Minimum Illumination:

  0.003 Lux@F1.3

• Day/Night:

  Auto (ICR)/Color/B/W

• IR Distance:

  120 m

• IR On/Off Control:

  Auto / Manual

• IR LEDs:

  4

• Camera
• Pan/Tilt/Rotation:

  0°-360°(pan.); 0°-90°(tilt); 0°-360° (rotation)

• Lens
• Lens type:

  Motorized vari-focal

• Focal Length:

  7 mm to 35 mm

• Mount Type:

  Board-in

• Max Aperture:

  F1.3

• Angle of View:

  H: 31°–9°, V: 23°–7° (2592 × 1944); H: 32°–9°, V: 18°–5° (2688 × 1520)

• Close Focus Distance:

  0.4 m – 2.0 m

• Video
• Frame Rate:

  20 fps@2592 × 1944, 50/60 fps@1080P (1920 × 1080)

• Record Rate:

  Main Stream: 2592 × 1944 (1 fps–20 fps), 2560 × 1440 (1 fps–25/30 fps), 1920 × 1080 (1 fps–50/60 fps); Sub Stream: D1 (1 fps–20/30 fps), D1 (1 fps–50 fps); Third Stream: 1080P (1 fps–17 fps)

• Video Compression:

  H.265; H.264; H.264H; H.264B; MJPEG (only supported by sub stream)

• Smart Codec:

  Smart H.265+/ Smart H.264+

• Streaming Capability:

  3 streams

• Bit Rate:

  H.264: 32 Kbps–8192 Kbps; H.265: 19 Kbps–8192 Kbps

• Bit Rate Control:

  CBR/VBR

• BLC:

  BLC / HLC / WDR (120dB)

• WDR:

  120dB

• White Balance:

  Auto/Natural/Street Lamp/Outdoor/Manual

• Gain Control:

  Auto / Manual

• Noise Reduction:

  3D DNR

• Smart light (IR/white):

  Yes

• Flip:

  0°/90°/180°/270°

• Mirror:

  Off/On

• Privacy Masking:

  Off/On (4 area, rectangle)

• Region of Interest:

  Yes

• Electronic Image Stabilization (EIS):

  Yes

• Optical Defog:

  Yes

• Lowlight performance technology:

  Starlight

• Perimeter Protection
• Performance:

  Tripwire, intrusion (Recognition of vehicle and people), fast moving, loitering detection, parking detection and people gathering

• Metadata
• Face:

  Support 6 kinds of face attributes extraction: Age, Gender, Expression (Jolly, Surprise, Normal, Rage, Sad, Disgusted, Confused, Frightened), Glasses, Mouth Mask, Moustache & Beard

• Artificial Intelligence
• Motion Detection:

  Yes

• IVS / Intelligent Video Surveillance :

  Tripwire; Intrusion; Abandoned/Missing objects

• Advanced Intelligent Functions:

  Face Detection (Support face image capture), Heat Map

• People counting:

  Support Line crossing/Region/Queueing people counting; Support 4 accesses independent detection, 4 areas independent detection

• Trigger Events:

  Motion detection, Video tampering, Scene changing, Network disconnection, Ip address conflict, Illegal access, Storage anomaly

• Certification
• Certifications:

  CE-LVD: EN62368-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

• Port
• Audio Compression:

  G.711a, G.711Mu, G.726, AAC, G.723

• Network
• Mobile App:

  Android, iOS

• Power
• Power Supply:

  DC 12V (±30%), PoE (802.3af) (Class 0), ePoE

• Power Consumption:

  < 10.9W

• Environment
• Operating Temperature:

  - 30°C to + 60°C

• Operating RH:

  < 95% RH

• Storage Temperature:

  - 30°C to + 60°C

• Protection Grade:

  IP67

• Vandal Resistance:

  IK10

• Construction
• Casing:

  Metal+Plastic

• Dimensions:

  273.2 mm x 95 mm x 95 mm

• Net Weight:

  1.11 kg

• Gross Weight:

  1.51 kg
