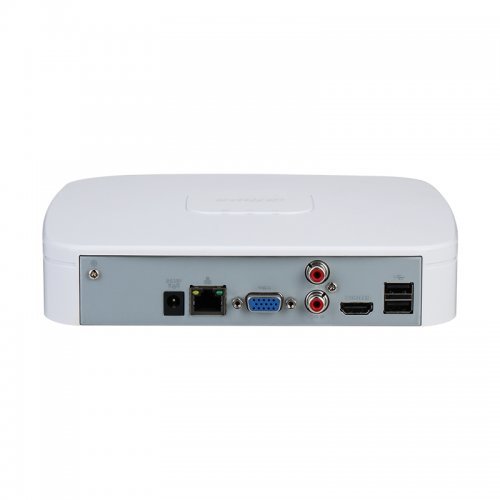

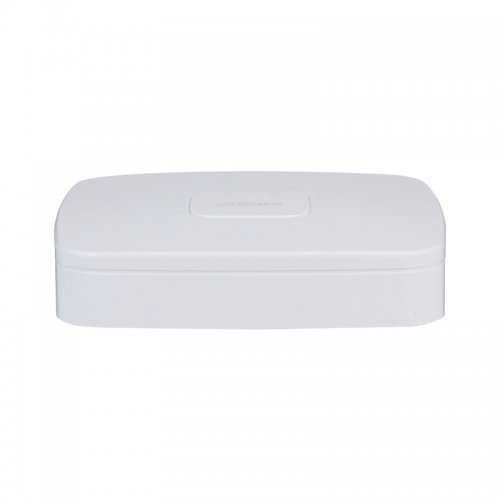

Мрежов видео рекордер Dahua NVR2104-I2 4-канално NVR записващо устройство

Technical information

• General
• Series:

  WizSense

• Main Processor:

  Embedded Processor

• Operating System:

  Embedded LINUX

• IP Camera Input:

  4 Channel

• Resolution:

  12MP; 8MP; 5MP; 4MP; 3MP; 2MP; 720p; D1

• Storage:

  1 SATA Port, up to 10TB capacity

• Video
• Video Compression:

  Smart H.265+/H.265/Smart H.264+/H.264/MJPEG

• Bandwidth:

  80 Mbps for access, 80 Mbps for storage and 60 Mbps for forwarding

• Record Mode:

  Manual record; alarm recordings; motion detection recordings; scheduled recordings

• Decoding Capacity:

  AI disabled: 1-channel 12MP@30 fps; 1-channel 8MP@30 fps; 2-channel 5MP@30 fps; 3-channel 4MP@30 fps; 6-channel 1080p@30 fps AI enabled: 1-channel 8MP@30 fps; 1-channel 5MP@30 fps; 2-channel 4MP@30 fps; 4-channel 1080p@30 fps

• Playback:

  Up to 4 channels

• Playback Function:

  Play, Pause; Stop; Fast forward; Fast backward; Rewind; Play by frame; Full screen; Backup (cut/file); Partially enlarge; Audio on/off

• Backup Mode:

  USB device

• Perimeter Protection
• AI Functions:

  Perimeter protection , Face detection , Face recognition , SMD Plus (detection of vehicle/human) , Tripwire , Intrusion

• Perimeter protection by camera:

  4 channels

• Perimeter protection by recorder:

  1

• SMD Plus by camera:

  4 channels

• Face recognition by camera:

  4 channels

• Face recognition by recorder:

  1

• Face Recognition
• Face Recognition:

  Yes

• Database Management:

  Up to 10 face databases and 5,000 images

• Artificial Intelligence
• Face Recogntion:

  Yes

• Smart Motion Detection Technology:

  Yes

• Trigger Events:

  Motion detection; privacy masking; video loss; PIR alarm; IPC alarm

• Certification
• Certifications:

  CE-EMC:EN 55032:2015,Class A;EN IEC 61000-3-2:2019;EN 61000-3-3:2013+A1:2019; EN55024:2010+A1:2015;EN 55035:2017;EN 50130-4:2011+A1:2014; CE-LVD:EN 62368-1:2014+A11:2017

• Third-party Support:

  Onvif

• Port
• Audio Input:

  1-channel (RCA port)

• Audio Output:

  1-channel (RCA port)

• Video Port:

  1 х HDMI, 1 x VGA

• USB:

  2 rear USB 2.0 ports

• Multi-screen Display:

  1/4

• Audio Compression:

  PCM; G.711A; G.711U; G.726

• Network
• Ethernet:

  1 RJ-45 Ports (10/100 Mbps)

• Mobile App:

  Android, iOS

• Network Function:

  HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; DDNS; Alarm Server; IP Search (Supports Dahua IP camera, DVR, NVS, etc.); P2P;Auto Registration

• Interoperability:

  ONVIF (profile T/S/G); CGI; SDK

• Web Viewer:

  Chrome; IE9 or later; Firefox

• Power
• Power Supply:

  DC 12V/1.5A

• Power Consumption:

  < 10W (Without HDD)

• Environment
• Operating Temperature:

  - 10°C to + 55°C

• Operating RH:

  10%–93%

• Storage Temperature:

  0°C to +40°C

• Construction
• Dimensions:

  204.6 mm × 206.4 mm × 48.1 mm

• Net Weight:

  0.45 kg

• Gross Weight:

  1.07 kg

• Shipping package - DAHUA NVR2104-I2
• Packages quantity:

  1 pc.

• Package dimensions (HxWxD cm):

  9.6 x 26.1 x 36.4; Weight: 1.07 kg.;
