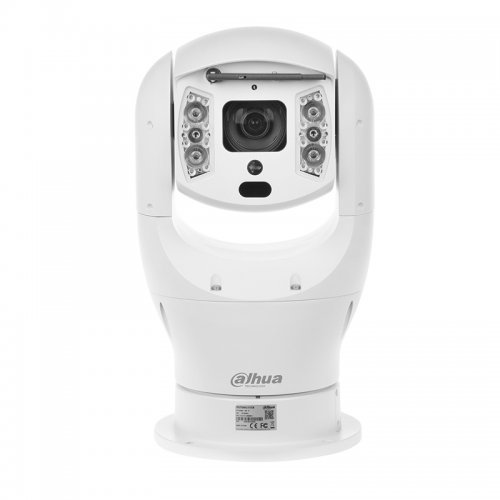

IP камера Dahua PTZ19240V-IRB-N

Technical information

• General
• Image Sensor:

  1/2.8” 2 Megapixel Progressive STARVIS™ CMOS

• Resolution:

  1080p (1920 × 1080)

• Резолюция_видеонаблюдение:

  2 Mp

• Scanning System:

  Progressive

• Electronic Shutter Speed:

  1/1 s–1/30,000 s

• Minimum Illumination:

  Color: 0.005Lux@F1.2; B/W: 0.0005Lux@F1.2; 0Lux@F1.2 (IR on)

• Day/Night:

  Auto (ICR)/Color/B/W

• IR backlight to:

  300 meters

• IR On/Off Control:

  Auto / Manual

• IR LEDs:

  8

• Smart Wiper:

  Yes

• Storage:

  NAS; Local PC for instant recording; Mirco SD card 256GB

• Camera
• S/N Ratio:

  > 55dB

• Pan/Tilt/Rotation:

  Pan: 0° ~ 360° endless; Tilt: 0° ~ 360° endless, effective tilt angle: -55° ~ 223°

• Manual Control Speed:

  0.1° ~120° /s (pan); 0.1° ~60° /s (tilt)

• Preset Speed:

  120° /s (pan); 60° /s (tilt)

• Presets:

  300

• PTZ:

  Yes

• PTZ mode:

  5 Pattern, 8 Tour, Auto Pan ,Auto Scan

• Speed Setup:

  Human-oriented focal Length/ speed adaptation

• Power up Action:

  Auto restore to previous PTZ and lens status after power failure

• Idle Motion:

  Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period

• Protocol:

  DH-SD, Pelco-P/D (Auto recognition)

• Lens
• Lens type:

  Varifocal

• Focal Length:

  4.5 mm to 180 mm

• Zoom:

  40 x optical; 16x digital

• Max Aperture:

  F1.2 ~ F3.5

• Angle of View:

  67.5° - 1.7°(H)

• Focus Control:

  Auto / Manual

• Close Focus Distance:

  0.1 m – 1.0 m

• Video
• Frame Rate:

  Main stream: 1080P/1.3M/720P(1~50/60fps), Sub stream1: D1/CIF(1 ~ 25/30fps), Sub stream2: 1080P/1.3M/720P(1 ~ 25/30fps)

• Video Compression:

  H.265+/H.265/H.264+/H.264

• Streaming Capability:

  3 streams

• Bit Rate:

  H.265/H.264: 256K ~ 8192Kbps

• Bit Rate Control:

  CBR/VBR

• BLC:

  BLC / HLC / WDR

• WDR:

  140dB

• White Balance:

  Auto, ATW, Indoor, Outdoor, Manual

• Gain Control:

  Auto / Manual

• Noise Reduction:

  Ultra DNR (2D/3D)

• Flip:

  180°

• Privacy Masking:

  Up to 24 areas

• Region of Interest:

  Yes

• Electronic Image Stabilization (EIS):

  Yes

• Optical Defog:

  Yes

• Lowlight performance technology:

  Starlight

• Perimeter Protection
• AI Функции:

  Defog (Електронно премахнване на мъгла) , EIS (Electronic image stabilization) , Privacy masking , ROI (Region of interest) , Автоматично проследяване на обекти , Изоставен/липсващ обект , Навлизане в зона , Пресичане на линия , Детекция на лица , Топлинна карта (Heat map)

• Artificial Intelligence
• Motion Detection:

  Yes

• Auto Tracking:

  Yes

• IVS / Intelligent Video Surveillance :

  Tripwire; Intrusion; Abandoned/Missing objects

• Advanced Intelligent Functions:

  Face Detection, Heat Map

• Trigger Events:

  Motion detection, Video tampering, Scene changing, Network disconnection, Ip address conflict, Illegal access, Storage anomaly

• Certification
• Certifications:

  CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB,ANSI C63.4- 2014

• Port
• Audio Input:

  1

• Audio Output:

  1

• Video Port:

  1 port (BNC, 1.0V[p-p], 75Ω)

• RS485:

  1

• Audio Compression:

  G.711a/G.711mu/PCM/G.726/AAC/G722.1/G.729/ MPEG2-Layer2

• SD card:

  Micro SD up to 256 GB

• Alarm I/O:

  7/2

• Network
• Ethernet:

  RJ-45 (10Base-T/100Base-TX)

• Mobile App:

  Android, iOS

• Network Function:

  IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP,DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x

• Interoperability:

  ONVIF Profile S&G, API

• Max. User Access:

  20

• Streaming Method:

  Unicast / Multicast

• Web Viewer:

  IE, Chrome, Firefox, Safari

• Management Software:

  Smart PSS, DSS, DMSS

• Съвместими аксесоари:

  PFB731W, PFA120A

• Power
• Power Supply:

  AC24V/5A(±25%), Hi-PoE

• Power Consumption:

  AC 24V: 80W, Hi-PoE: 40W

• Environment
• Operating RH:

  < 95% RH

• Protection:

  IP68

• Construction
• Casing:

  Metal

• Dimensions:

  Φ234 mm x 205 mm x 405.5 mm

• Net Weight:

  9.8 kg

• Gross Weight:

  15.5 kg
