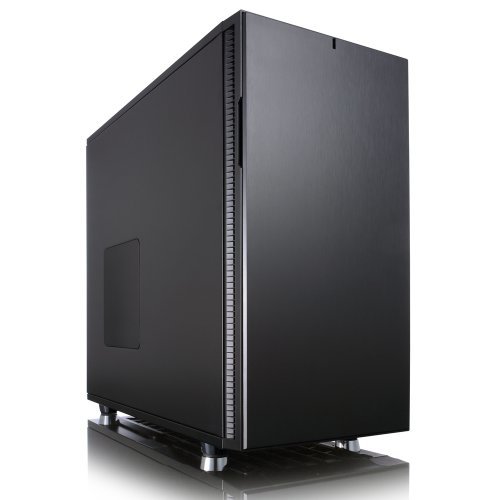

Fractal Design Define R5 Black
• Specifications
ATX, Micro ATX, Mini ITX motherboard compatibility
7 expansion slots
2 - 5.25" bays (removable)
8 - 3.5" HDD positions (can also accommodate 2.5" units); 2 - 2.5" dedicated SSD unit positions
4 - ModuVent™ plates - three in the top and one in the side
9 - fan positions (2 Fractal Design Dynamic GP14 140mm fans included)
Filtered fan slots in the front and bottom
CPU coolers up to 180mm in height
ATX PSUs up to 190/170 mm with a bottom 120/140mm fan installed; when not using any bottom fan location longer PSUs up to 300mm can be used
Graphics cards up to 310 mm in length with the top HDD cage installed; with the top cage removed, graphics cards up to 440 mm in length may be installed
20 - 35 mm of space for cable routing behind the motherboard plate
Velcro straps included for easy cable management
Front door can switch opening direction via dual mounting system
Left side panel features Quick Release System for easy access and provides a secure closure of side panel
Right side panel features smart captive thumbscrews so no thumbscrews are lost
Colours available: Black, Titanium (black case, titanium front panel), White
Case dimensions (WxHxD): 232 x 451 x 521mm
Case dimensions - with feet/screws/protrusions: 232 x 462 x 531mm
Net weight: 11.2 kg
Package dimensions (WxHxD): 327 x 615 x 540mm
Package weight: 12.8 kg
• Cooling system
Front: 2 – 120/140 mm fans (included is 1 Fractal Design Dynamic GP14 fan, 1000 RPM speed)
Rear: 1 – 120/140 mm fan (included is 1 Fractal Design Dynamic GP14 fan, 1000 RPM speed)
Top: 3 - 120/140 mm fan (not included)
Bottom: 2 – 120/140 mm fan (not included)
Side: 1 – 120/140 mm fan (not included)
Fan controller: 3 step fan controller for up to 3 fans
Dust filters: Bottom and front intakes
• Water cooling compatibility
Front – 360, 280, 240, 140 and 120 mm radiators of all thicknesses (requires removal of drive bays)
Top – 420, 360, 280, 240, 140 and 120 mm radiators. (A thickness limitation of 55mm for both radiator + fan applies on 420, 280 and 140 mm radiators) (420 and 360 mm radiators require removal of the ODD bay)
Bottom – 120 or 240 mm radiator (Use of radiators in the bottom position limits the PSU length to 165 mm)
Rear – 120 or 140 mm radiator
• Front interface
2 USB 3.0 + 2 USB 2.0
Audio in/out
Power button with LED (blue)
HDD activity LED (blue)
Reset button
• Package contents
Define R5 computer case
User manual
Accessory box
• Additional information
EAN/GTIN-13: 7350041082583
UPC: 817301012584
Product code: FD-CA-DEF-R5-BK
Available for System Integrators

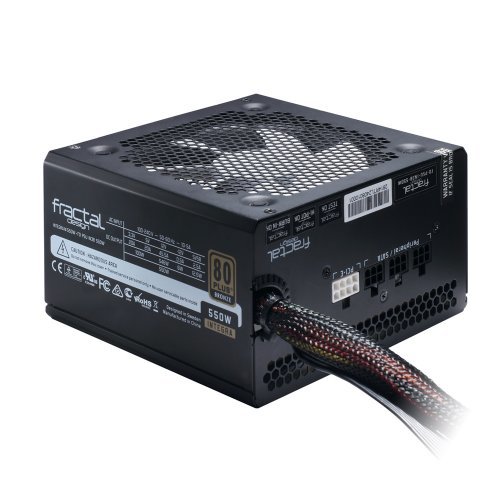

Fractal Design Integra M Series power supply units feature excellent electrical performance, including 80PLUS® Bronze certified efficiency.
The modular flat cable system allows for a clean installation, and enhances airflow patterns inside the case. The short 140mm length makes for easy installation in small computer cases, and the extra-long ATX12V cable accommodates modern, bottom-PSU cases.
Fractal Design Integra M units are equipped with a large temperature-controlled 120mm fan for reduced noise levels and optimum cooling.
The Integra M is a great choice for medium-performance gaming computers and workstations.
Key features
80 PLUS® Bronze certified efficiency
Integra M PSUs meet the 80 PLUS® Bronze specification for providing power with an efficiency that is typical of PSUs with much higher price points. Additionally, because Integra M PSUs generate less heat, they provide power at lower fan speeds, which results in reduced noise levels.
Excellent Electrical Performance
Fractal Design Integra M Series PSUs feature excellent DC voltage regulation and ripple suppression: they can deliver their full-rated wattage continuously even with an intake temperature as high as 40°C full load or 50°C at 80% load.
Compliant with the latest standards
Integra M PSUs are compliant with the latest PC PSU standard: ATX 2.4 / EPS 2.92
Extremely short 140 mm case
Integra M PSUs are only 140mm long, which accommodates the smallest ATX-compatible computer cases on the market.
Silent, temperature-controlled 120mm fan
Generally, larger fans move more air with less noise than smaller fans: Integra M Series PSUs are equipped with a 120mm fan Sleeve Bearing, which keeps noise level down.
Extra-long ATX12V cable
Integra M PSUs are equipped with an extra long 12V ("P4") connector cable, which accommodates bottom-mounted-PSU computer cases.
Computer protection
Integra M PSUs feature an impressive suit of computer protection, including: Over Power Protection, Over Voltage Protection, Under Voltage Protection and Short Circuit Protection.
80PLUS® Certification |
|
Modular cables |
|
Modular cable type |
|
Fan type |
|
Maximum operating temperature at full load |
|
Fully Intel Haswell C6/C7 compliant |
|
Warranty |
|
Capacitors |
|
Protections |
|
Life expectancy (MTBF) |
|
PSU specification compliance |
|
Standby efficiency |
|
Colors Available |
|
Unit Measurements |
|
Unit weights, with modular cables |
|
Package dimensions - W x H x D (mm) |
|
Package weight – (Kg) |
|
Fixed Cables (length in mm, + designates a second connector on the same cable)
Model |
450W |
550W |
650W |
750W |
ATX 20+4 pin |
510 |
510 |
510 |
510 |
ATX12V 4+4 pin |
700 |
700 |
700 |
700 |
PCI-E 6+2 pin |
- |
- |
500+100 |
500+100 |
Modular cables (length in mm, + designates a second connector on the same cable)
Model |
450W |
550W |
650W |
750W |
PCI-E 6+2 pin |
520 |
520+100 |
520+100 |
520+100 |
Peripheral |
400+120 |
400+120 |
400+120 |
400+120 |
SATA |
400+120+120 650+120 |
400+120+120 650+120 |
400+120+120 650+120+120 |
400+120+120+120 650+120+120 |
DC Output
Model |
450W |
550W |
650W |
750W |
3.3V |
20A |
20A |
20A |
20A |
5V |
15A |
20A |
20A |
20A |
3.3V and 5.V combined |
80W |
100W |
100W |
100W |
12V1 |
37A |
54A |
||
-12V |
||||
5V Standby (+5Vsb) |
||||
Total Power |
450W |
550W |
650W |
750W |
