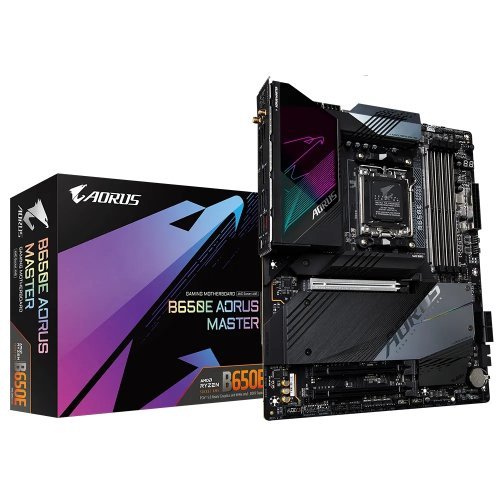

Gigabyte B650E AORUS MASTER 1.0
Характеристики
Graphics:
Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 7680x4320@60 Hz;
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
CPU's supported: AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors
Chipset: AMD B650
Expansion Slots:
CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0* and running at x16 (PCIEX16);
* Actual support may vary by CPU.;
* The M2B_CPU and M2C_CPU slots share bandwidth with the PCIEX16 slot. When the M2B_CPU or M2C_CPU slot is populated, the PCIEX16 slot operates at up to x8 mode.;
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.;
Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4);
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x2 (PCIEX2);
Support for AMD CrossFire™ technology (PCIEX16 and PCIEX4)
Storage:
CPU: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU);
* Actual support may vary by CPU.;
3 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 5.0* x4/x2 SSD support) (M2D_CPU, M2C_CPU, M2B_CPU);
* Actual support may vary by CPU.;
Chipset: 4 x SATA 6Gb/s connectors;
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices;
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Memory type:
Support for DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules;
4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory;
Dual channel memory architecture;
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

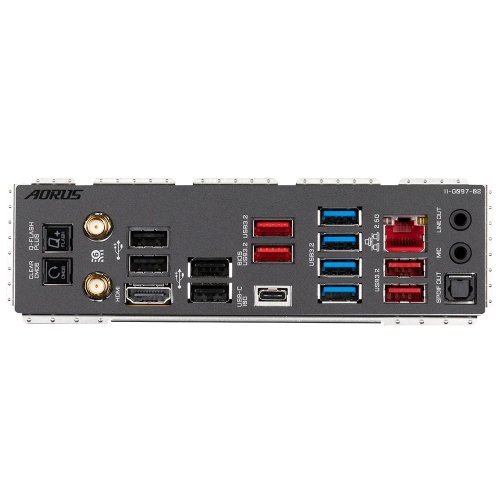

I/O:
1 x Q-Flash Plus button;
1 x Clear CMOS button;
1 x HDMI 2.1 port;
2 x SMA antenna connectors (2T2R);
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support;
4 x USB 3.2 Gen 2 Type-A ports (red);
4 x USB 3.2 Gen 1 ports;
4 x USB 2.0/1.1 ports;
1 x RJ-45 port;
1 x optical S/PDIF Out connector;
2 x audio jacks
Connectors:
1 x 24-pin ATX main power connector;
2 x 8-pin ATX 12V power connectors;
1 x CPU fan header;
1 x water cooling CPU fan header;
4 x system fan headers;
4 x system fan/water cooling pump headers;
2 x addressable LED strip headers;
2 x RGB LED strip headers;
1 x CPU cooler LED strip/RGB LED strip header;
4 x M.2 Socket 3 connectors;
4 x SATA 6Gb/s connectors;
1 x front panel header;
1 x front panel audio header;
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support;
1 x USB 3.2 Gen 1 header;
2 x USB 2.0/1.1 headers;
1 x noise detection header;
1 x THB_U4 add-in card connector;
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI;
2.0 module only);
1 x power button;
1 x reset button;
2 x temperature sensor headers;
1 x reset jumper;
1 x Clear CMOS jumper
Audio:
Realtek® ALC1220-VB CODEC;
* The front panel line out jack supports DSD audio.;
ESS ES9118 DAC chip;
Support for DTS:X® Ultra;
High Definition Audio;
2/4/5.1-channel;
* You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
LAN: Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
BIOS:
1 x 256 Mbit flash;
Use of licensed AMI UEFI BIOS;
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor:
ATX Form Factor;
30.5cm x 24.4cm
OS:
Support for Windows 11 64-bit;
Support for Windows 10 64-bit
Other:
AMD Wi-Fi 6E RZ616 (MT7922A22M);
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands;
BLUETOOTH 5.2;
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
