Дънна платка Gigabyte B760M GAMING X AX, LGA 1700, Intel B760, 4x DDR4, mATX Wi-Fi Bluetooth

Дънна платка Gigabyte B760M GAMING X AX, LGA 1700, Intel B760, 4x DDR4, mATX Wi-Fi Bluetooth

Name: Дънна платка Gigabyte B760M GAMING X AX, LGA 1700, Intel B760, 4x DDR4, mATX Wi-Fi Bluetooth
Brand: Gigabyte
SKU: B760M GAMING X AX
Availability: OutOfStock

Продуктов код: 85443

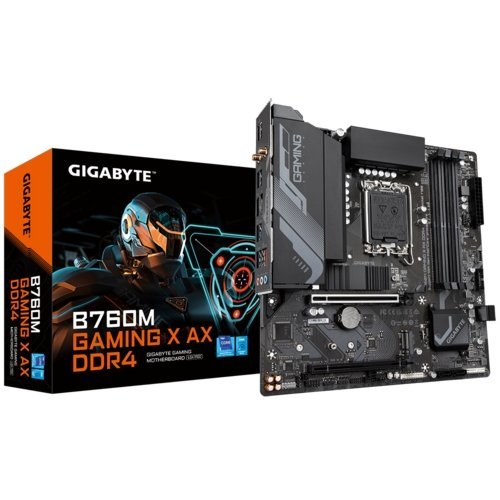

Дънна платка Gigabyte B760M GAMING X AX (снимка 1)

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос

Производител:

Gigabyte

Модел:

B760M GAMING X AX

Партиден номер:

B760M GAMING X AX

M.2 порт:

Да

Предназначение:

Десктоп, За игри

Чипсет:

Intel B760

Брой слотове за памет:

RAM - поколение:

DDR4

Socket:

Intel LGA1700

Form Factor:

mATX

Видео изходи:

DisplayPort, HDMI

Wi-Fi свързаност:

Да

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

Gigabyte B760M GAMING X AX

CPUs supported: LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processor;
L3 cache varies with CPU;

Memory type: Support for DDR4 5333O.C. 5133O.C. 5000O.C. 4933O.C. 4800O.C. 4700O.C. 4600O.C. 4500O.C. 4400O.C. 4300O.C. 4266O.C. 4133O.C. 4000O.C. 3866O.C. 3800O.C. 3733O.C. 3666O.C. 3600O.C. 3466O.C. 3400O.C. 3333O.C. 3300O.C. 3200 3000 2933 2666 2400 2133 MTs memory module;
4 x DDR DIMM sockets supporting up to 128 GB 32 GB single DIMM capacity of system memory;
Dual channel memory architecture;
Support for ECC Un-buffered DIMM 1Rx82Rx8 memory modules operate in non-ECC mode;
Support for non-ECC Un-buffered DIMM 1Rx82Rx81Rx16 memory module;
Support for Extreme Memory Profile XMP memory module;

Chipset: Intel B760 Express Chipset

Graphics: Integrated Graphics Processor-Intel HD Graphics support: 1 x DisplayPort, supporting a maximum resolution of 4096x230460 Hz;
Support for DisplayPort 1.2 version and HDCP 2.3;
1 x HDMI port, supporting a maximum resolution of 4096x216060 Hz;
Support for HDMI 2.1 version and HDCP 2.3.;
Support native HDMI 2.1 TMDS compatible ports.;

Expansion Slots: CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 PCIEX16;
For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.;
Chipset: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 PCIEX4;

Storage: CPU: 1 x M.2 connector Socket 3, M key, type 2280 PCIe 4.0 x4x2 SSD support M2A_CPU;
Chipset: 1 x M.2 connector Socket 3, M key, type 221102280 PCIe 4.0 x4x2 SSD support M2P_SB;
4 x SATA 6Gbs connector;
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage device;

IO: 3 x USB 3.2 Gen 1 port;
5 x USB 2.01.1 port;
2 x SMA antenna connectors 2T2R;
1 x HDMI 2.0 port;
1 x DisplayPort;
1 x RJ-45 port;
3 x audio jack;

Connectors: 1 x 24-pin ATX main power connector;
1 x 8-pin ATX 12V power connector;
1 x CPU fan header;
3 x system fan header;
2 x addressable LED strip header;
2 x RGB LED strip header;
2 x M.2 Socket 3 connector;
4 x SATA 6Gbs connector;
1 x front panel header;
1 x front panel audio header;
1 x SPDIF Out header;
1 x USB Type-C header, with USB 3.2 Gen 2 support;
1 x USB 3.2 Gen 1 header;
2 x USB 2.01.1 header;
2 x Thunderbolt add-in card connector;
1 x Trusted Platform Module header For the GC-TPM2.0 SPIGC-TPM2.0 SPI 2.0 module only;
1 x serial port header;
1 x reset button;
1 x Q-Flash Plus button;
1 x reset jumper;
1 x Clear CMOS jumper;

Audio: Realtek Audio CODEC;
High Definition Audio;
245.17.1-channel;
You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for SPDIF Out;

LAN: Realtek 2.5GbE LAN chip 2.5 Gbps1 Gbps100 Mbps

BIOS: 1 x 256 Mbit flash;
Use of licensed AMI UEFI BIOS;
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0;

Form Factor: Micro ATX Form Factor;
24.4cm x 24.4cm;

OS: Support for Windows 11 64-bit;
Support for Windows 10 64-bit;

Other: Intel Wi-Fi 6E AX211;
WIFI a, b, g, n, ac, ax, supporting 2.456 GHz carrier frequency band;
BLUETOOTH 5.3;
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate;
