Дънна платка Gigabyte GA-H110-D3A (rev. 1.0)

Дънна платка Gigabyte GA-H110-D3A (rev. 1.0)

Name: Дънна платка Gigabyte GA-H110-D3A (rev. 1.0)
Brand: Gigabyte
SKU: GA-H110-D3A (rev. 1.0)
Availability: OutOfStock

Продуктов код: 23788

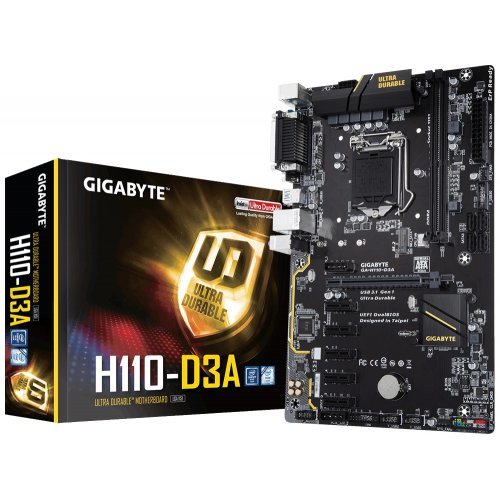

Дънна платка Gigabyte GA-H110-D3A (rev. 1.0) (снимка 1)

Дънна платка Gigabyte GA-H110-D3A (rev. 1.0)

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос

Производител:

Gigabyte

Модел:

GA-H110-D3A (rev. 1.0)

Партиден номер:

Гаранция:

36 месеца

M.2 порт:

Да

Предназначение:

Десктоп

Чипсет:

Intel H110

Брой слотове за памет:

RAM - поколение:

DDR4

Socket:

Intel LGA1151

Form Factor:

ATX

Видео изходи:

D-Sub(VGA)

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

Gigabyte GA-H110-D3A (rev. 1.0)

CPU
1. Support for 7^th/6^th Generation Intel^® Core™ i7 processors/Intel^® Core™ i5 processors/Intel^® Core™ i3 processors/Intel^® Pentium^®processors/Intel^® Celeron^® processors in the LGA1151 package
2. L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
1. Intel^® H110 Express Chipset
Memory
1. 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
  * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
2. Dual channel memory architecture
3. Support for DDR4 2133 MHz memory modules
4. Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules
  * To support 2400 MHz or XMP memory, you must install a 7^th generation processor.
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor - Intel^® HD Graphics support:
1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
Maximum shared memory of 1 GB
Audio
1. Realtek^® ALC887 codec
2. High Definition Audio
3. 2/4/5.1/7.1-channel
  * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
4. Support for S/PDIF Out
LAN
1. Realtek^® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots
1. 1 x PCI Express x16 slot, running at x16
  (The PCI Express x16 slot conforms to PCI Express 3.0 standard.)
2. 5 x PCI Express x1 slots
  (All of the PCI Express x1 slots conform to PCI Express 2.0 standard.)
Storage Interface
Chipset:
1. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA SSD support)
2. 4 x SATA 6Gb/s connectors
  * Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
USB
Chipset:
1. 4 x USB 3.1 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
2. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 2 x PCIe power connectors
4. 1 x CPU fan header
5. 3 x system fan headers
6. 4 x SATA 6Gb/s connectors
7. 1 x M.2 Socket 3 connector
8. 1 x front panel header
9. 1 x front panel audio header
10. 1 x S/PDIF Out header
11. 1 x USB 3.1 Gen 1 header
12. 2 x USB 2.0/1.1 headers
13. 1 x Trusted Platform Module (TPM) header
14. 1 x Clear CMOS jumper
Back Panel Connectors
1. 1 x PS/2 mouse port
2. 1 x PS/2 Keyboard port
3. 1 x parallel port
4. 1 x serial port
5. 1 x D-Sub port
6. 2 x USB 3.1 Gen 1 ports
7. 2 x USB 2.0/1.1 ports
8. 1 x RJ-45 port
9. 3 x audio jacks (Line In, Line Out, Mic In)
I/O Controller
1. iTE^® I/O Controller Chip
H/W Monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Overheating warning
5. Fan fail warning
6. Fan speed control
  * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1. 2 x 64 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. Support for DualBIOS™
4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for APP Center
  * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
  3D OSD
  @BIOS
  Ambient LED
  AutoGreen
  Cloud Station
  EasyTune
  Fast Boot
  ON/OFF Charge
  Smart TimeLock
  Smart Keyboard
  Smart Backup
  System Information Viewer
  USB Blocker
2. Support for Q-Flash
3. Support for Xpress Install
Bundle Software
1. Norton^® Internet Security (OEM version)
2. cFosSpeed
Operating System
1. Windows^® 10 64-bit (for 7^th Generation Intel^® Processors)
2. Windows^® 10 64-bit / Windows^® 8.1 64-bit / Windows^® 7 32-bit / 64-bits (for 6^th Generation Intel^® Processors)
  * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
Form Factor
1. ATX Form Factor; 30.5cm x 19.0cm
Remark
1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
