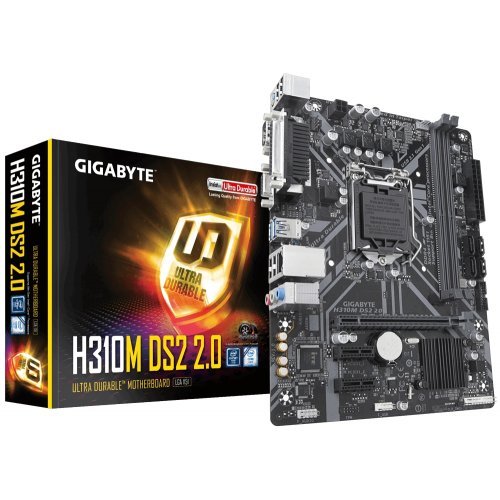

Дънна платка Gigabyte H310M DS2 r2.0

Продуктов код: 31334
Дънна платка Gigabyte
Дънна платка Gigabyte
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
Gigabyte
Модел:
H310M DS2 r2.0
Партиден номер:
-
Гаранция:
36 месеца
Предназначение:
Десктоп
Чипсет:
Intel H310
Брой слотове за памет:
2
RAM - поколение:
DDR4
Socket:
Intel LGA1151
Form Factor:
mATX
Видео изходи:
D-Sub(VGA)

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

  • Описание
  • Ревюта
  • Въпроси и отговори

Gigabyte H310M DS2 r2.0

Socket: LGA1151



Graphics: Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz; Maximum shared memory of 1 GB



Chipset: Intel® H310 Express Chipset



Expansion Slots: 1 x PCI Express x16 slot, running at x16; (The PCIEX16 slot conforms to PCI Express 3.0 standard.); 2 x PCI Express x1 slots; (The PCI Express x1 slots conform to PCI Express 2.0 standard.)



Storage: Chipset:4 x SATA 6Gb/s connectors



Memory type: 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory; Dual channel memory architecture; Support for DDR4 2666/2400/2133 MHz memory modules; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules; * To support 2666 MHz or XMP memory, you must install an 8th Generation Intel® Core™ i7/i5 processor



I/O: 1 x PS/2 keyboard/mouse port; 1 x parallel port; 1 x serial port; 1 x D-Sub port; 2 x USB 3.1 Gen 1 ports; 4 x USB 2.0/1.1 ports; 1 x RJ-45 port; 3 x audio jacks



Connectors: 1 x 24-pin ATX main power connector; 1 x 4-pin ATX 12V power connector; 4 x SATA 6Gb/s connectors; 1 x CPU fan header; 1 x system fan header; 1 x front panel header; 1 x front panel audio header; 1 x USB 3.1 Gen 1 header; 1 x USB 2.0/1.1 header; 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only); 1 x Clear CMOS jumper



Audio: Realtek® ALC887 codec; High Definition Audio; 2/4/5.1/7.1-channel; Support for S/PDIF Out



LAN: Realtek® GbE LAN chip (10/100/1000 Mbit)



BIOS: 1 x 128 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0



Form Factor: Micro-ATX



OS: Support for Windows 10 64-bit



Warranty: 36 Months



https://www.gigabyte.com/Motherboard/H310M-DS2-20-rev-10#sp
GB H310M DS2 2.0
