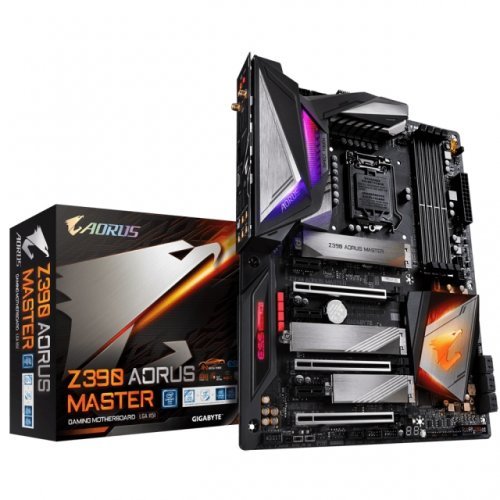

Дънна платка Gigabyte Z390 AORUS MASTER, Socket 1151 (300 Series), RGB Fusion, Wi-Fi
- Supports 9th and 8th Gen Intel® Core™ Processors
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Intel® Optane™ Memory Ready
- 12 Phases IR Digital VRM Solution with PowIRstage
- Advanced Thermal Design with Fins-Array Heatsink and Direct Touch Heatpipe
- Onboard Intel® CNVi 802.11ac 2x2 Wave 2 Wi-Fi
- 125dB SNR AMP-UP Audio with ALC1220 & High-End ESS SABRE 9118 DAC with WIMA audio capacitors
- USB TurboCharger for Mobile Device Fast Charge Support
- Intel® Gigabit LAN with cFosSpeed
- RGB FUSION with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips
- Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
- Front USB 3.1 Gen 2 Type-C™ Header
- Triple Ultra-Fast NVMe PCIe Gen3 x4 M.2 with Triple Thermal Guard
- USB DAC-UP 2 with Adjustable Voltage
- CEC 2019 Ready, Save Power With a Simple Click
Технически детайли
| Производител | GIGABYTE |
| Модел | Z390 AORUS MASTER |
| Баркод | 4719331804305 |
| Гаранция | 36 месеца |
| CPU Socket | 1151 |
| Чипсет | Intel Z390 |
| Поддържани процесори | Intel Socket 1151 for 8th Generation Core, Intel Socket 1151 for 9th Generation Core |
| Форм фактор | ATX |
| Поддържана памет | DDR4 |
| Максимален капацитет RAM памет | 64 GB |
| Слотове памет | 4 |
| Честота памет | 4133(O.C.), 4000(O.C.), 3866(O.C.), 3800(O.C.), 3733(O.C.), 3666(O.C.), 3600(O.C.), 3466(O.C.), 3400(O.C.), 3333(O.C.), 3300(O.C.), 3200(O.C.), 3000(O.C.), 2800(O.C.), 2666, 2400, 2133 |
| Поддръжка на Dualchannel | Да |
| Графична карта | Intel HD Graphics |
| Вградено аудио | Realtek® ALC1220-VB |
| Вграден LAN | Intel GbE LAN chips (10/100/1000 Mbit) |
| Вграден Wi-Fi | Intel® CNVi 802.11ac Wave2 2T2R WIFI |
| Вграден Bluetooth | Bluetooth V5.0 |
| Слотoве PCI-E x16 | 3 x PCIe 3.0/2.0 x16 |
| Слотoве PCI-E x1 | 3 |
| Интерфейс Serial ATA | 6 x SATA3 6.0 Gb/s |
| М2 слот | Intel® Optane™ Memory Ready, 2 x M.2 connectors (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support), 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) |
| Поддръжка на RAID | 0, 1, 5, 10 |
| Конектор захранване | 1 x 24-pin, 2 x 8-pin |
| Видео слот | PCI Express |
| Мулти GPU технология | NVIDIA Quad-GPU SLI Technology, NVIDIA 2-Way SLI Technology, AMD Quad-GPU CrossFireX Technology, AMD 3-Way CrossFireX Technology |
| Свързаност | 1 x HDMI, 1 x USB Type-C port, with USB 3.1 support, 3 x USB 3.1 Gen2 Type-A, 2 x USB 3.1 Gen1, 4 x USB 2.0/1.1, 1 x RJ45, 1 x Optical S/PDIF Out, 5 x Audio jack's |
| USB Typce-C | 1 |
| USB 3.1 | 5 |
| USB 2.0 | 4 |
| Поддържани технологии | Gigabyte RGB Fusion |
| Други | BIOS:2 x 128 Mbit flash, Use of licensed AMI UEFI BIOS:, Support for DualBIOS™, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
