About the same size as a credit card, the MS105 can be placed anywhere in your home without taking up too much space. Its fanless design allows it to remain unobtrusive, regardless of how long it has been running.
With five 10/100Mbps Ethernet ports, you can quickly expand your wired network. The MS105 is flexible and is fully compatible
with computers, printers, IP cameras, smart TVs, game consoles, and more. This makes it perfect for
home, small office, and even dormitory environments.
Forget about complicated installation. Just connect the switch to your TV or computer via an Ethernet cable to immediately expand your wired network. Absolutely no configuration is required.
With Half/Full Duplex and MAC Address Learning Technology, the MS105 provides up to 1Gbps of stable switching bandwidth. Every unit undergoes extensive testing prior to shipment, ensuring that the MS105 will provide reliable, uninterrupted connections for years to come.
|Dimensions (W X D X H)||
82 x 49 x 21 mm
|Interfaces||5 10/100Mbps ports, auto-negotiation, auto-MDI/MDIX|
|External Power Supply||
External power adapter(Output: 5.0VDC/0.6A)
|Standards and Protocols||
IEEE 802.3, IEEE 802.3u, IEEE 802.3xCSMA/CD
10/100Mbps at half duplex20/200Mbps at full duplex
|LED||Ethernet (1, 2, 3, 4, 5), Power|
|Transfer Method||Store and forward|

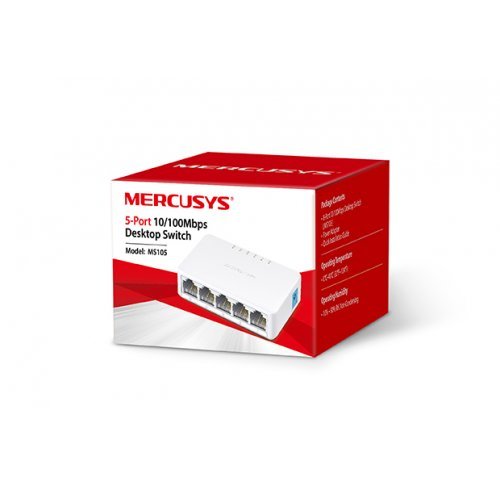

5-Port 10/100Mbps Desktop Switch
Quick installation guide
Operating temperature: 0°C~40°C (32°F~104°F)
Storage temperature: -40°C~70°C (-40°F~158°F)
Operating humidity: 10% ~ 90% non-condensingStorage humidity: 5%~90% non-condensing
