Name: Суич MikroTik CRS326-24G-2S+RM, Dual Boot Cloud Router Switch
Brand: MikroTik
SKU: -
Price: 418.6 BGN
Availability: OnlineOnly

MikroTik CRS326-24G-2S+RM

Brochure

CRS326-24G-2S+RM

SwOS/RouterOS powered 24 port Gigabit Ethernet switch with two SFP+ ports, wire speed connectivity with several new switching features!

It has “Dual boot” feature that allows you to choose which operating system you prefer to use, RouterOS or SwOS. If you prefer to have a simplified switch only OS with more switch specific features, use SwOS. If you are used to Winbox and would like the ability to use routing and other Layer 3 features on some ports in your CRS, boot and use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings.

It gives you all the basic functionality for a managed switch, plus more: allows to manage port-to-port forwarding, apply MAC filter, configure VLANs, mirror traffic, apply bandwidth limitation and even adjust some MAC and IP header fields. SFP cage supports both 1.25 Gb SFP and 10 Gb SFP+ modules.

SwOS Features
• Non-blocking Layer 2 switching capacity
• 16K host table
• IEEE 802.1Q
• Supports up to 4K simultaneous VLANs
• Port isolation
• Port security
• Broadcast storm control
• Port mirroring of ingress/egress traffic
• Rapid Spanning Tree Protocol
• Access Control List
• MikroTik neighbor discovery
• SNMPv1
• Web-based GUI

Product specifications

Details
Product code	CRS326-24G-2S+RM
10/100/1000 Ethernet ports	24
CPU	98DX3236A1-BTD4C000
CPU core count	1
CPU nominal frequency	800 MHz
Dimensions	440 x 144 x 44 mm
License level	5
Max Power consumption	24W
Operating System	RouterOS / SwitchOS
PoE in	Passive PoE
Power Jack	1
SFP+ ports	2
Serial port	RJ45
Size of RAM	512 MB
Storage size	16 MB
Storage type	FLASH
Supported input voltage	10 V - 30 V
Tested ambient temperature	-40°C .. +60°C
Suggested price	$199

Included parts

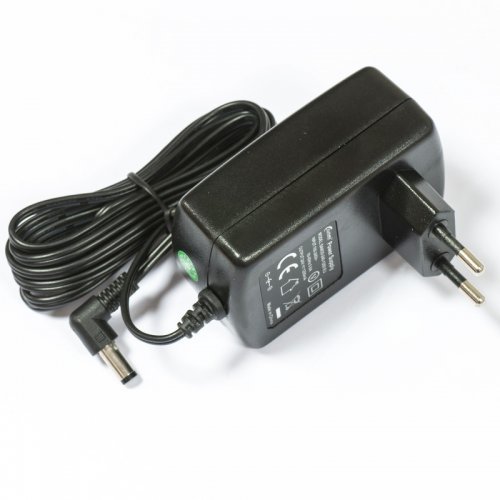

24V 1.2A power adapter

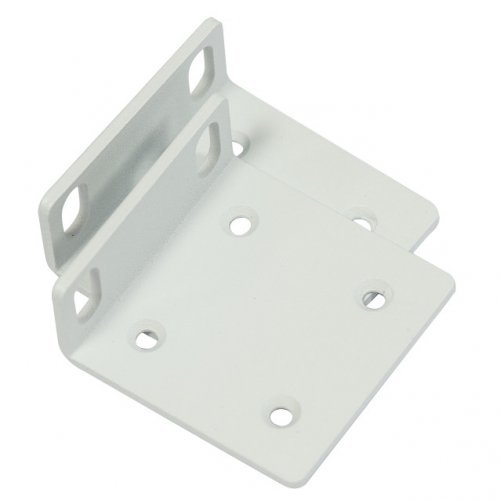

Rack ears

Switching results

CRS326-24G-2S+RM
Mode	Configuration	64 byte		512 byte		1518 byte
Mode	Configuration	kpps	Mbps	kpps	Mbps	kpps	Mbps
Switching	Non blocking Layer 2 throughput	65,476.2	33,523.8	10,338.3	42,345.9	3,576.1	43,427.8
Switching	Non blocking Layer 2 capacity	65,476.2	67,047.6	10,338.3	84,691.7	3,576.1	86,855.7
Switching	Non blocking Layer 1 throughput	65,476.2	44,000.0	10,338.3	44,000.0	3,576.1	44,000.0
Switching	Non blocking Layer 1 capacity	65,476.2	88,000.0	10,338.3	88,000.0	3,576.1	88,000.0
