MSI A320M-A PRO, s. AM4, AMD A320

Продуктов код: 43427
Дънна платка MSI
Дънна платка MSI A320M-A PRO, s. AM4, AMD A320 (умалена снимка 1) Дънна платка MSI A320M-A PRO, s. AM4, AMD A320 (умалена снимка 2) Дънна платка MSI A320M-A PRO, s. AM4, AMD A320 (умалена снимка 3) Дънна платка MSI A320M-A PRO, s. AM4, AMD A320 (умалена снимка 4) Дънна платка MSI A320M-A PRO, s. AM4, AMD A320 (умалена снимка 5)
Дънна платка MSI
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
MSI
Модел:
A320M-A PRO
Партиден номер:
911-7C51-001
Чипсет:
AMD A320
Socket:
AMD AM4
Предназначение:
Десктоп
Слотове за памет:
2
RAM- поколение:
DDR4
Видео изходи:
DVI-D, HDMI v1.4
Form Factor:
mATX
Интерфейс:
1x PCIe 2 x1, 1x PCIe 3 x16, 2x PS/2, 2x USB 2.0, 3x audio jack-3.5mm, 4x SATA3, 4x USB 3.2 Gen 1, RJ-45
Екстри:
RAID 0/1/10
Цена с включен ДДС:
95.00 лв.

Безплатна доставка за поръчки над 99.99лв. с ДДС

До всяко населено място в страната в рамките на 1-3 работни дни

ДОБАВИ В КОЛИЧКАТА

Можете да поръчате и по телефона:
(+359 2) 965 89 89

  • Информация за MSI A320M-A PRO

  • Ревюта
  • Въпроси и отговори

AMD AM4 motherboard inspired from architectural design, with Core Boost, DDR4 Boost

  • Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4
  • Supports DDR4 Memory, up to 3200 (OC) MHz
  • Audio Boost: Reward your ears with studio grade sound quality.
  • DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability
  • Core Boost: With premium layout and fully digital power design to support more cores and provide better performance.



Спецификации:

Processor

Supports 1st, 2nd and 3rd Gen AMD Ryzen™ / Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics / Athlon™ with Radeon™ Vega Graphics and A-series / Athlon X4 Desktop Processors for Socket AM4

See supported processors

Chipset

AMD® 320 Chipset

Memory

  • 2 x DDR4 memory slots, support up to 32GB1
  • Support 1866/ 2133/ 2400/ 2667(OC)/ 2933(OC)/ 3200(OC)+ MHz
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory (non-ECC mode)
  1. Please refer www.msi.com for more information on compatible memory.

Slots

  • 1 x PCIe 3.0 x16 slot
    • Supports x16 speed with 1st, 2nd and 3rd Gen AMD Ryzen™ processorss
    • Supports x8 speed with Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics processors
    • Supports x4 speed with AMD® Athlon™ with Radeon™ Vega Graphics Processors
  • 1 x PCIe 2.0 x1 slots

Onboard Graphics

  • 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1,2
  • 1 x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@30Hz1,2
  1. Only support when using AMD® Ryzen™ with Radeon™ Vega Graphics and 2nd Gen AMD Ryzen™ with Radeon™ Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
  2. Maximum shared memory of 2048 MB

Storage

AMD® A320 Chipset

  • 4 x SATA 6Gb/s ports
  • Supports RAID 0, RAID 1 and RAID 10

USB

AMD® A320 Chipset

  • 6 x USB 3.2 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal connectors)
  • 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal connectors)

Audio

Realtek® ALC892 Codec

  • 7.1-Channel High Definition Audio

LAN

  • 1 x Realtek® 8111H Gigabit LAN controller

Internal connectors

  • 1 x 24-pin ATX main power connector
  • 1 x 4-pin ATX 12V power connector
  • 4 x SATA 6Gb/s connectors
  • 1 x USB 3.2 Gen1 connector (supports additional 2 USB 3.2 Gen1 ports)
  • 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1 x 4-pin CPU fan connector
  • 1 x 4-pin system fan connector
  • 1 x Front panel audio connector
  • 1 x Serial port connector
  • 2 x Front panel connectors
  • 1 x TPM module connector
  • 1 x Chassis Intrusion connector
  • 1 x Clear CMOS jumper

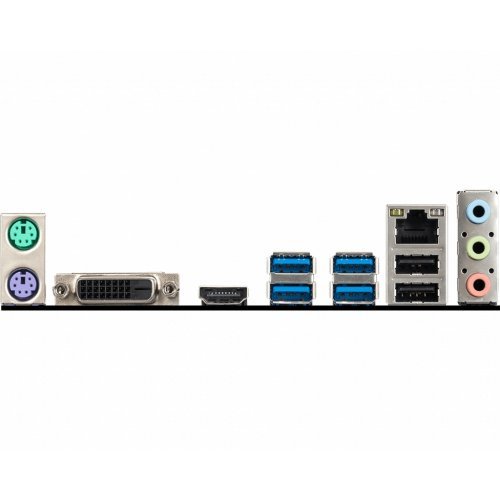

Back panel ports

  1. Mouse
  2. DVI-D Port
  3. USB 3.2 Gen1
  4. LAN Port
  5. Keyboard
  6. HDMI Port
  7. USB 2.0 Ports
  8. HD Audio Connectors
MSI A32M-A PRO back panel ports

Dimensions

  • 8.9 in. x 7.4 in. (22.6 cm x 18.7 cm)
  • m-ATX Form Factor

Mounting

6 mounting holes

Operating System

Support for Windows® 10 64-bit
Support for Windows® 7 64-bit
* To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.

Box content

MSI A320M-A PRO box content
  1. MSI® does not guarantee the risks or damages caused by changing the cover.
  2. These pictures are for reference only and may vary without notice.



  1. All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Please consult the product specifications page for full details.Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with your local supplier for exact offers.



https://www.msi.com/Motherboard/A320M-A-PRO
