• Socket: AM4
• Graphics: 1 x VGA port, supports a maximum resolution of 2048x1280@60Hz, 1920x1200@60Hz1,2<; 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz1,2<; 1 x HDMI™ 1.4 port, supports a maximum resolution of 4096x2160 @30Hz, 2560x1600 @60Hz1,2<
• CPU`s supported: Supports AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors for Socket AM4
• Chipset: AMD® B450 Chipset
• Expansion Slots: 1 x PCIe 3.0 x16 slot; Supports x16 speed with AMD® Ryzen™ 1st and 2nd Generation processors; Supports x8 speed with AMD® Ryzen™ with Radeon Vega Graphics processors; Supports x4 speed with AMD® Athlon™ with Radeon™ Vega Graphics Processors; 2 x PCIe 2.0 x1 slots
• Storage: AMD® B450 Chipset; 4 x SATA 6Gb/s ports; Supports RAID 0, RAID1 and RAID 10; 1 x M.2 slot (Key M); Supports PCIe 3.0 x4 (AMD® Ryzen 1st and 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics) or PCIe 3.0 x2 (AMD® Athlon™ with Radeon™ Vega Graphics) and SATA 6Gb/s; Supports 2242/ 2260 /2280 storage devices
• Memory type: 4 x DDR4 memory slots, support up to 64GB1; Supports 1866/ 2133/ 2400/ 2667Mhz (by JEDEC); Supports 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466 MHz (by A-XMP OC MODE); Supports Dual Channel mode; Support non-ECC UDIMM memory

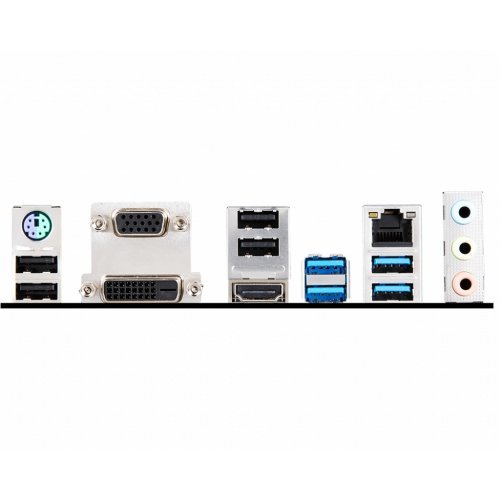

• I/O: PS/2 Port; VGA Port; USB 2.0 Ports; USB 3.1 Gen1 Ports; LAN Port; HD Audio Connectors; DVI-D Port; HDMI Port
• Connectors: 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 4 x SATA 6Gb/s connectors; 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports); 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports); 1 x 4-pin CPU fan connector; 2 x 4-pin system fan connectors; 1 x Front panel audio connector; 2 x Front panel connectors; 1 x TPM module connector; 1 x Chassis Intrusion connector; 1 x Serial port connector; 1 x Parallel port connector; 1 x RGB LED strip connector; 1 x Clear CMOS jumper
• Audio: Realtek® ALC892 Codec; 7.1-Channel High Definition Audio
• LAN: 1 x Realtek® 8111H Gigabit LAN controller
• Form Factor: 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm); m-ATX Form Factor
• OS: Support for Windows® 10 64-bit
• Warranty: 36 Months
https://www.msi.com/Motherboard/B450M-PRO-VDH-PLUS/Specification

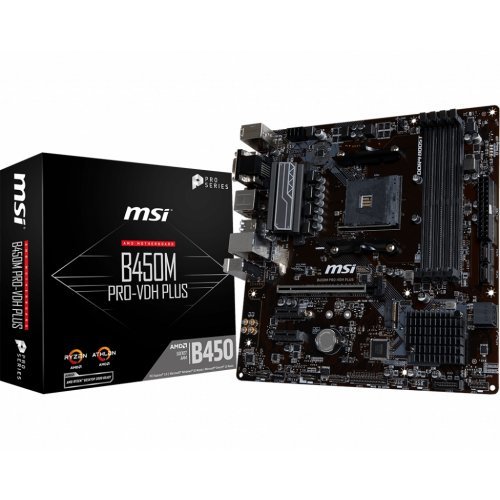

MSI B450M PRO-VDH PLUS
