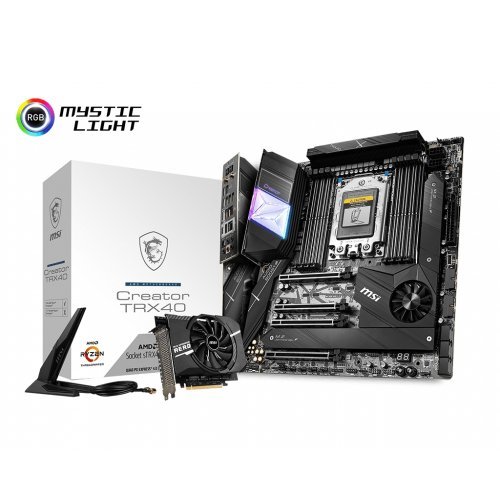

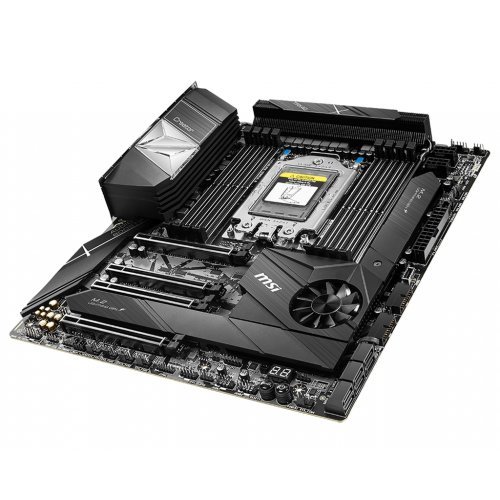

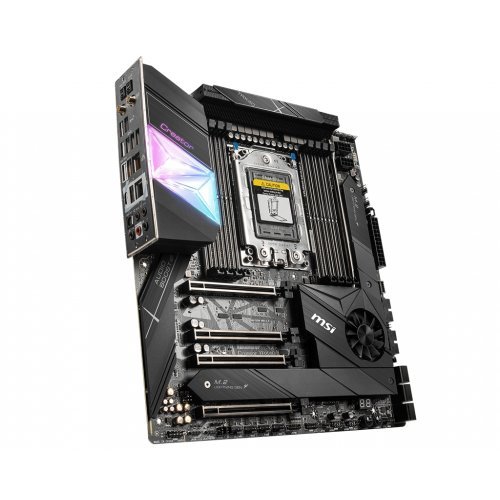

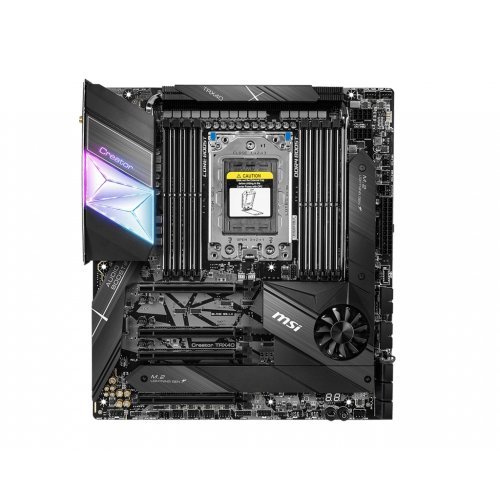

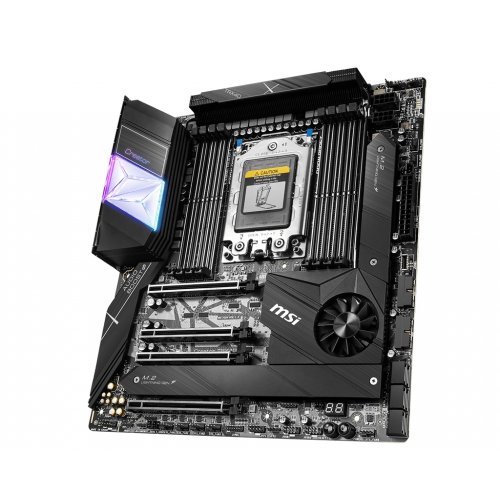

Дънна платка MSI CREATOR TRX40 911-7C56-003

Продуктов код: 43791
Дънна платка MSI
Дънна платка MSI CREATOR TRX40 911-7C56-003 Дънна платка MSI CREATOR TRX40 911-7C56-003 Дънна платка MSI CREATOR TRX40 911-7C56-003 Дънна платка MSI CREATOR TRX40 911-7C56-003 Дънна платка MSI CREATOR TRX40 911-7C56-003 Дънна платка MSI CREATOR TRX40 911-7C56-003 Дънна платка MSI CREATOR TRX40 911-7C56-003 Дънна платка MSI CREATOR TRX40 911-7C56-003
Дънна платка MSI
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
MSI
Модел:
CREATOR TRX40
Партиден номер:
911-7C56-003
M.2 порт:
Да
Предназначение:
Server/Workstation
Чипсет:
AMD TRX40
Брой слотове за памет:
8
RAM - поколение:
DDR4
Socket:
AMD TRX4
Form Factor:
E-ATX
Видео изходи:
не поддържа самостоятелно вградено видео
Wi-Fi свързаност:
Да

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

  • Описание
  • Ревюта
  • Въпроси и отговори

MSI CREATOR TRX40

Unique look and feel inspired by the craft of crystal for all Creators. Features the latest PCIe gen4 slots and M.2 connectors, USB3.2 Gen2x2, 10G LAN and Wi-Fi 6, Frozr Heatsink Design, Triple Lightning Gen4 M.2 with double-sided M.2 Shield Frozr, Core Boost, Audio Boost 4 with Nahimic, M.2 Xpander-Aero Gen4 card, Mystic Light.

  • Supports 3rd Gen AMD® RyzenTM ThreadripperTM Desktop Processors for Socket sTRX4
  • Supports DDR4 Memory, 8 DIMMs, Quad Channel Max Frequency DDR4-4666(OC)
  • More Powerful than Enough: dedicate 16 phases 70A digital power to CPU, with All Aluminum Design
  • More Efficency for Data Transfer: 10G LAN + Intel® Gigabit LAN with Intel® WIFI 6 and bandwidth management
  • More Compatibility for Storage: 7 x Lightning Gen4 M.2 with M.2 XPANDER-AERO GEN4
  • More Flexibility for Temperature Control: Full fan control with 9 PWM fan headers and 3 dedicated thermal sensor
  • Lightning Fast experience: Lightning USB 20G, PCIe 4.0, Lightning Gen4 x4 M.2 with double-sided M.2 Shield Frozr, StoreMI, AMD Turbo USB 3.2 GEN2
  • Set Core Power Free: Extended Heatsink and Heat-pipe Design, stacked fin array, Core Boost, Digital PWM IC, dual 8 pin CPU power connectors, DDR4 Boost
  • Frozr Heatsink Design:  Designed with the patented fan and double ball bearings to provide the best performance for creators and prosumers.
  • Mystic Light: 16.8 million colors / 29 effects controlled in one click. Mystic Light Extension supports RGB, Rainbow and Corsair LED strip
  • Audio Boost 4 with Nahimic: Reward your ears with studio grade sound quality
  • Multi-GPU: With Steel Armor PCI-E slots. Supports up to 3-Way NVIDIA SLI™ & 3-Way AMD Crossfire™



Спецификации:

Processor

3rd Gen AMD Ryzen™ Threadripper™ Desktop Processors

See supported processors

Chipset

AMD® TRX40 Chipset

Memory

  • 8x DDR4 memory slots, support up to 256G 1
  • Supports JEDEC 1R 2133/ 2400/ 2666/ 3200 MHz
    • 1DPC 1R max speed 4666 MHz
    • 1DPC 2R max speed 4000 MHz
    • 2DPC 1R max speed 4000 MHz
    • 2DPC 2R max speed 3600 MHz
  • Quad channel memory architecture 2
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory
  • Supports un-buffered memory
  1. Please refer www.msi.com for more information on compatible memory.
  2. Please refer the DIMM Slots section for more details.

See supported memory

Slots

  • 4x PCIe 4.0 x16 slots (support x16/x8/x16/x8 mode)

Multi-GPU

  • Supports 3-Way NVIDIA® SLI™ Technology
  • Supports 3-Way AMDA® CrossFire™ Technology

Storage

AMD® TRX40 Chipset

  • 6x SATA 6Gb/s ports
  • 1x M.2 slot (M2_3, Key M)
    • Supports PCIe 4.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices
  • 3rd Gen AMD Ryzen™ Threadripper™ Desktop Processor
  • 2x M.2 slots (M2_1 & M2_2, Key M)
    • M2_1 supports PCIe 4.0 x4 and SATA 6Gb/s 2242/ 2260 /2280 storage devices
    • M2_2 supports PCIe 4.0 x4 and SATA 6Gb/s 2242/ 2260 /2280/ 22110 storage devices

RAID

AMD® TRX40 Chipset

  • Supports RAID 0, RAID 1 and RAID 10

USB

AMD® TRX40 Chipset

  • 2x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port on the back panel and 1 Type-C port through the internal USB connector)
  • 8x USB 3.2 Gen1 (SuperSpeed USB) ports (4 Type-A ports on the back panel, 4 ports available through the internal USB 3.2 Gen1 connectors)
  • 4x USB 2.0 (High-speed USB) ports available through the internal USB 2.0 connectors

3rd Gen AMD Ryzen™ Threadripper™ Desktop Processor

  • 4x USB 3.2 Gen2 (SuperSpeed USB 10Gbps) Type-A ports on the back panel

ASMedia® ASM3242 Chipset

  • 1x USB 3.2 Gen2x2 (SuperSpeed USB 20Gbps) Type-C port on the back panel

Audio

  • 1x Realtek® ALC1220 Codec
    • 7.1-Channel High Definition Audio
  • 1x Realtek® ALC4050H Codec
    • Supports front & rear panel Mic-in
    • Supports S/PDIF output

LAN

  • 1x Intel® I211AT Gigabit LAN controller
  • 1x Aquantia® AQC107 10-Gigabit LAN controller

Wireless

Intel® Wi-Fi 6 AX200

  • The Wireless module is pre-install in the M2_4 (Key-E) slot
  • Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz- 5GHz (160MHz) up to 2.4Gbps
  • Supports Bluetooth® 5
  1. Only support windows 10 64-bit

Internal connectors

  • 1x 24-pin ATX main power connector
  • 2x 8-pin ATX 12V power connectors
  • 6x SATA 6Gb/s connectors
  • 3x M.2 slots (M-Key)
  • 1x USB 3.2 Gen2 Type-C port
  • 2x USB 3.2 Gen1 connectors (supports additional 4 USB 3.2 Gen1 ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin pump fan connector (supports up to 2A)
  • 4x 4-pin system fan connectors
  • 3x 4-pin extend fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x TPM module connector
  • 3x 2-pin Thermal Sensors connectors
  • 1x 4-pin 5050 RGB LED connector
  • 2x 3-pin ARGB LED connectors
  • 1x 3-pin CORSAIR LED connector
  • 1x LED demo connector
  • 1x JBLK_U pin header
  • 1x JBLK_D pin header
  • 1x OC retry pin header
  • 1x OC force enter pin header
  • 1x Slow mode booting jumper
  1. Provides additional power to PCIe x16 slots

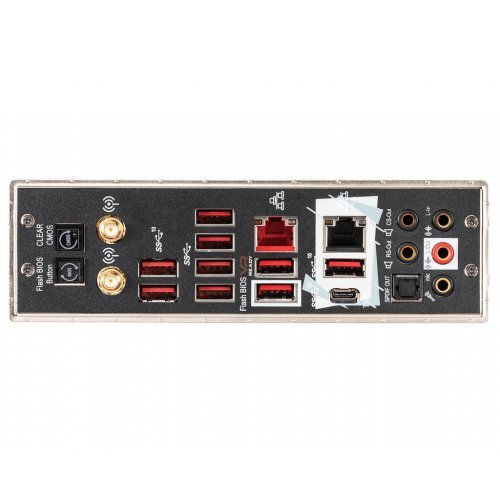

Back panel ports

  1. Clear CMOS Button
  2. Wireless / Bluetooth
  3. Gigabit LAN
  4. 10G LAN
  5. Audio Connectors
  6. Flash BIOS Button
  7. USB 3.2 Gen2 Type-A
  8. USB 3.2 Gen1 Type-A
  9. USB 3.2 Gen2 Type-A
  10. USB 3.2 Gen2x2 20G Type-C
  11. USB 3.2 Gen1 Type-A
MSI creator trx40 back panel ports

Form Factor

  • E-ATX Form Factor
  • 12 in. x 10.9 in. (30.4 cm x 27.7 cm)

Box content

MSI TRX40 box content
  1. MSI® does not guarantee the risks or damages caused by changing the cover.
  2. These pictures are for reference only and may vary without notice.



https://www.msi.com/Motherboard/Creator-TRX40
