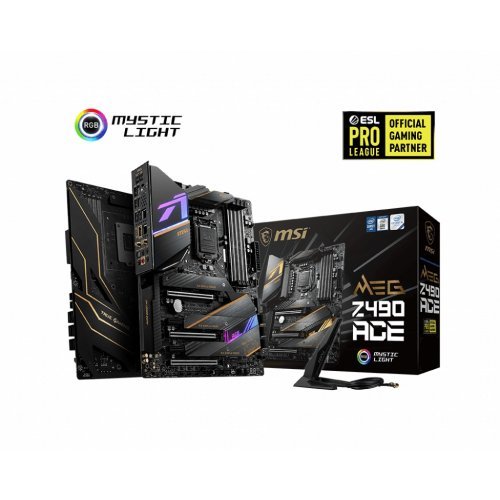

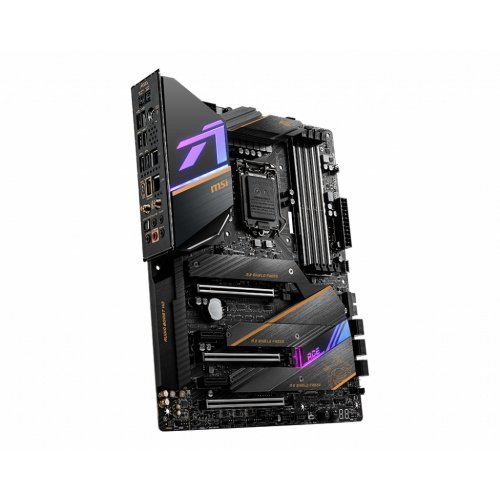

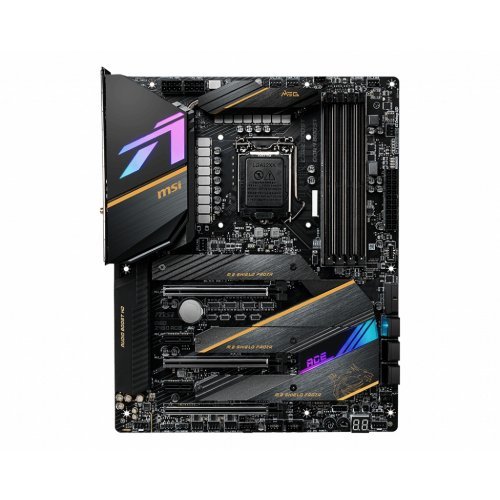

Дънна платка MSI MEG Z490 ACE 911-7C71-004

Manufacturer : MSI

Subcategory

PartNo1 MEG Z490 ACE

PartNo2 911-7C71-004

Search String

MSI MEG Z490 ACE
Product ID: 63096
Mnfr. Part#: MEG Z490 ACE

• CPU`s supported: Supports 10th Gen Intel® Core™ and Pentium® Gold /Celeron® processors for LGA 1200 socket1

• Chipset: Intel® Z490 Chipset

• Expansion Slots: 3x PCIe 3.0 16 slots (2 from CPU, 1 from PCH, support 16/0/4, 8/8/4); 2x PCIe x1 slots (from PCH)

• Storage: Intel® Z490 Chipset; 6x SATA 6Gb/s ports1; 3x M.2 slots (Key M); M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices1; M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage ; M2_3 supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices; Intel® Optane™ Memory Ready3; Supports Intel® Smart Response Technology for Intel Core™ processors

• Memory type: 4x DDR4 memory slots, support up to 128GB1; Supports 1R 2133/2666/2933 MHz; 1DPC 1R Max speed up to 4800+ MHz; 1DPC 2R Max speed up to 4266+ MHz; 2DPC 1R Max speed up to 4400+ MHz; 2DPC 2R Max speed up to 4000+ MHz; Supports Dual-Channel mode; Supports non-ECC mode, un-buffered memory; Supports Intel® Extreme Memory Profile (XMP)

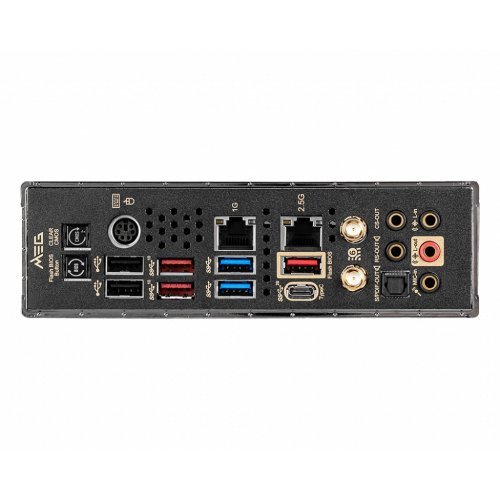

• I/O: Clear CMOS Button; PS/2 Keyboard / Mouse Port; 1G LAN; 2.5G LAN; Wi-Fi /Bluetooth Antenna Connectors; HD Audio Connectors; Flash BIOS Button; USB 2.0 Ports; USB 3.2 Gen 2 10Gbps (Type-A); USB 3.2 Gen 1 5Gbps (Type-A); USB 3.2 Gen 2x2 20Gbps (Type-C); Optical S/PDIF-Out

• Connectors: 1x 24-pin ATX main power connector; 2x 8-pin ATX 12V power connectors; 6x SATA 6Gb/s connectors; 3x M.2 slots (M-Key); 1x USB 3.2 Gen 2 10Gbps Type-C port; 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports); 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports); 1x 4-pin CPU fan connector; 1x 4-pin water-pump connector; 6x 4-pin system fan connectors; 1x front panel audio connector; 2x system panel connectors; 1x Chassis Intrusion connector; 1x slow mode jumper; 1x power button; 1x reset button; 1x 4-pin RGB LED connector; 2x 3-pin RAINBOW LED connectors; 1x 3-pin CORSAIR LED connector

• Audio: Realtek® ALC1220 Codec + ESS SABRE9018Q2C combo DAC; 7.1-Channel High Definition Audio; Supports Optical S/PDIF output

• LAN: 1x Realtek® 8125B 2.5G LAN controller; 1x Intel® I219V 1G LAN controller

• Form Factor: 12 in. x 9.6 in. (30.5 cm x 24.4 cm); ATX Form Factor

• OS: Support for Windows® 10 64-bit

• Other: Intel® AX201; Supports 802.11 a/b/g/n/ac/ax, MU-MINO Rx, 2.4GHz-5GHz (160MHz) up to 2.4Gbps; WiFi 6 Pre-Certified; Supports Bluetooth® 5.1 , FIPS, FISMA; The Wireless module is pre-install in the M2 (Key-E) slot
