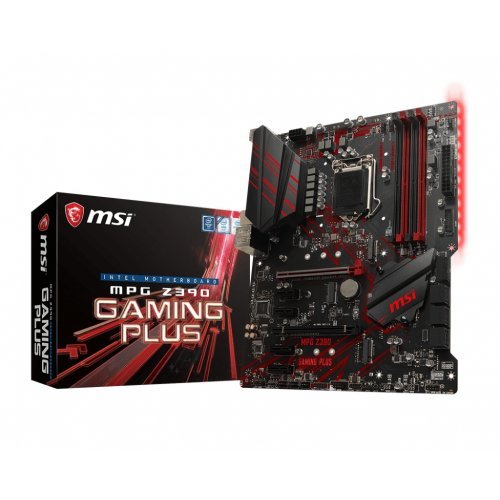

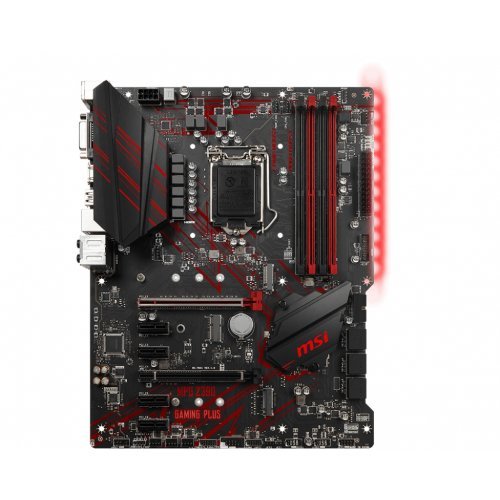

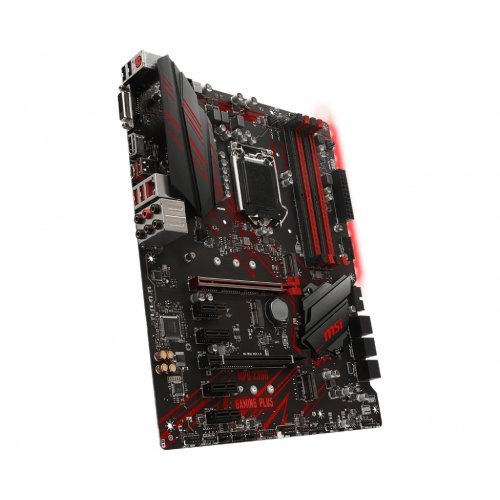

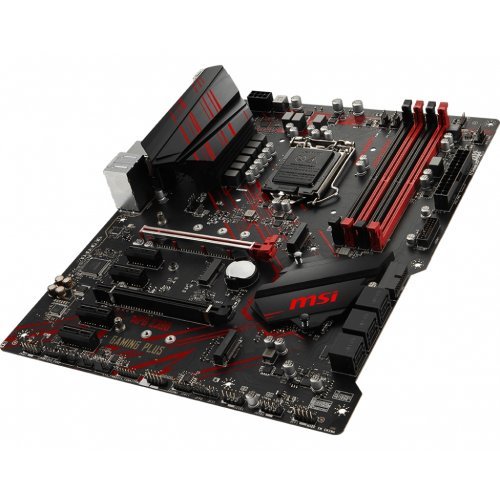

Дънна платка MSI MPG Z390 Gaming Plus MPG_Z390_GAMING_PLUS

Продуктов код: 29926
Дънна платка MSI
Дънна платка MSI MPG Z390 Gaming Plus MPG_Z390_GAMING_PLUS Дънна платка MSI MPG Z390 Gaming Plus MPG_Z390_GAMING_PLUS Дънна платка MSI MPG Z390 Gaming Plus MPG_Z390_GAMING_PLUS Дънна платка MSI MPG Z390 Gaming Plus MPG_Z390_GAMING_PLUS Дънна платка MSI MPG Z390 Gaming Plus MPG_Z390_GAMING_PLUS
Дънна платка MSI
Все още няма оценка за продукта.
Напиши ревю | Задай въпрос
Производител:
MSI
Модел:
MPG Z390 Gaming Plus
Партиден номер:
MPG_Z390_GAMING_PLUS
Гаранция:
36 месеца
M.2 порт:
Да
Предназначение:
Десктоп
Чипсет:
Intel Z390
Брой слотове за памет:
4
RAM - поколение:
DDR4
Socket:
Intel LGA1151
Form Factor:
ATX
Видео изходи:
DVI, HDMI
Wi-Fi свързаност:
Да

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

  • Описание
  • Ревюта
  • Въпроси и отговори

MSI MPG Z390 Gaming Plus

Satisfying gamers with what they really need, MPG GAMING PLUS is equipped with Extended Heatsink Design, Core boost, Twin Turbo M.2, Game Boost, Turbo USB and Intel CNVi connector and MSI latest Dragon Center APP

  • Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
  • Supports DDR4 Memory, up to 4400(OC) MHz
  • Lightning Fast Game experience: 2x TURBO M.2, Intel Optane Memory Ready. Turbo USB 3.1 GEN2
  • Set Core Power Free: Extended Heatsink Design, Core Boost, Game Boost, DDR4 Boost
  • Intel CNVi Ready: Supports Intel CNVi Wi-Fi module, IEEE802.11 AC wave2, providing a high speed wireless network connection
  • Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
  • Dragon Center: A brand new software which integrates all MSI tools like GAME MODE, VOICE BOOST, LIVE UPDATE  with user friendly user interface.



PROCESSOR

Supports Intel® Core™ 9000 Series family/ 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket

See supported processors

CHIPSET

Intel® Z390 Chipset

MEMORY

  • 4 x DDR4 memory slots, support up to 64GB
    • Supports DDR4 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz
  • Supports Dual-Channel mode
  • Supports non-ECC, un-buffered memory
  • Supports Intel® Extreme Memory Profile (XMP)

SLOTS

  • 2 x PCIe 3.0 x16 slots
  • 4 x PCIe 3.0 x1 slots
  • 1 x M.2 slot with E key for Integrated Intel® Wireless-AC(CNVi) module only

ONBOARD GRAPHICS

  • 1 x HDMI™ port, supports a maximum resolution of 4096x2160@24Hz
  • 1 x DVI-D port, supports a maximum resolution of 1920x1200@60Hz

MULTI-GPU

  • Supports 2-Way AMD CrossFire™ Technology

STORAGE

Intel® Z390 Chipset

  • 6 x SATA 6Gb/s ports1
  • 2 x M.2 slot (Key M)1
    • M2_1 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280/ 22110 storage devices
    • M2_2 supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices
    • Intel® Optane™ Memory Ready2
  1. M.2 slots and SATA ports share the bandwidth. Please refer user manual for details.
  2. Before using Intel® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.

RAID

Intel® Z390 Chipset

  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1 for M.2 PCIe storage devices

USB

Intel® Z390 Chipset

  • 2 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1x Type-A port and 1x Type-C port) on the back panel
  • 6 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 3.1 connectors)
  • 6 x USB 2.0 (High-speed USB) ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors)1
  1. The CNVI_1 and JUSB2 share the same bandwidth. Please refer user manual for details.

AUDIO

Realtek® ALC892 Codec

  • 7.1-Channel High Definition Audio

LAN

  • 1 x Intel® I219-V Gigabit LAN controller

INTERNAL CONNECTORS

  • 1 x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 3x M.2 slots (2 M-Key slots,1 E-Key slot)
  • 2x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin Water Pump connector
  • 5x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 1x TPM module connector
  • 2x 4-pin RGB LED connectors
  • 1x Serial Port connector
  • 1x Clear CMOS jumper

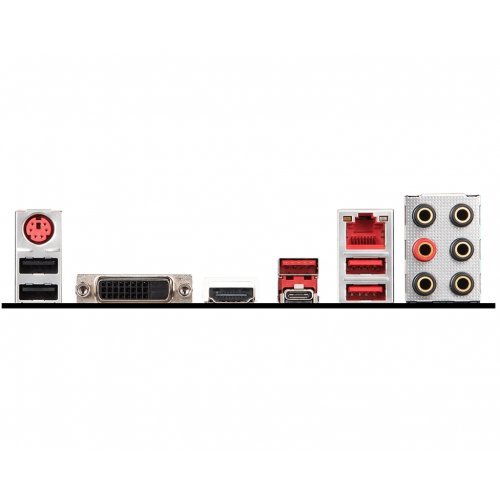

BACK PANEL PORTS

  1. PS/2 Combo Port
  2. LAN
  3. HD Audio Connectors
  4. USB 2.0
  5. DVI-D
  6. HDMI
  7. USB 3.1 Gen2 Type-A + C
  8. USB 3.1 Gen1
MSI MPG Z390 GAMING PLUS back panel ports

DIMENSIONS

  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
  • ATX Form Factor

MOUNTING

9 mounting holes

OPERATING SYSTEM

Support for Windows® 10 64-bit

BOX CONTENT

MSI MPG Z390 GAMING PLUS box content



1. Specifications may differ depending on your location, and we reserve the right to change without notice. Please check with your local dealers for detailed specifications.
2. Due to photography and/or monitor settings, coloration of product images may vary from actual product.
