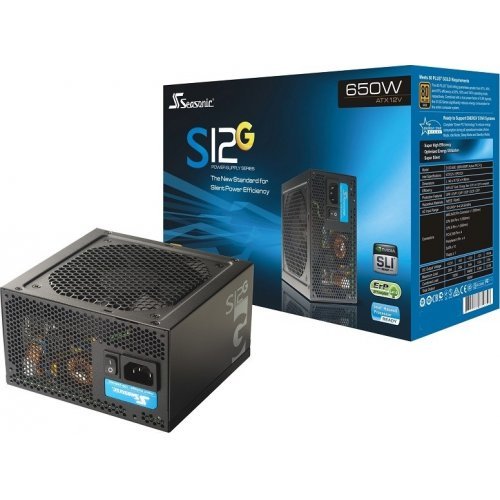

Seasonic S12G-650
S12G-650
The S12G-650 is well-appointed with standard all-in-one cabling design and quality components that provide solid performance. The S12G-650 is designed to support Intel’s Haswell processors, features 10 SATA cables and is an affordable solution for a wide range of applications. For silent operation, the S12G Series implements Sea Sonic’s S2FC (Smart and Silent Fan Control) design and a 120 mm ball bearing fan that features a low wind drag structure. With its DC to DC converter design, this series is geared up for superior dynamic response supporting a foundation for system stability. The 5-year worldwide manufacturer’s warranty demonstrates Sea Sonic’s commitment for long-term reliability.
80 PLUS®Gold
Seasonic was the forerunner of creating the very first 80 PLUS® Gold certified power supply on the market and since that time it has built a very popular Gold series lineup that covers a full power range of power supplies with impeccable performance and efficiency. The highly efficient 80 PLUS® Gold certification guarantees greater than 87 %, 90 % and 87 % efficiency at 20 %, 50 % and 100 % operating loads, respectively. The clear advantage of buying a power supply with 80 PLUS® Gold rating is the fact that the less energy gets wasted during power conversion, the lower the operating costs will be for the user.
| S12G-650 | |||||||
|---|---|---|---|---|---|---|---|
| AC Input | Voltage: 100 V - 240 V | ||||||
| Current: 8.5 - 4 A | |||||||
| Frequency: 50 Hz - 60 Hz | |||||||
| DC Output | Rail | +3.3 V | +5 V | +12 V1 | +12 V2 | -12 V | +5 VSB |
| Maximum Power | 25 A | 25 A | 30 A | 30 A | 0.5 A | 3 A | |
| 125 W | 648 W | 6 W | 15 W | ||||
| Total continuous power | 650 W | ||||||
| S12G-650 Technical Specifications | ||
|---|---|---|
| 80PLUS® | Gold | |
| Form Factor | Intel ATX 12 V | |
| Dimensions | 150 mm (W) x 140 mm (L) x 86 mm (H) | |
| Fan Information | Fan Size | 120 mm |
| Fan Control | Seasonic S2FC | |
| Fan Bearing | Fluid Dynamic Bearing | |
| Life Expectancy | 50,000 at 40 °C, 15 % - 65 % R.H. | |
| Cable Information | Modularity | Fully Wired |
| Cable type | Flat black cables | |
| Electrical Features | Operating Temperature | 40 °C |
| MTBF @ 25 °C, excl. fan | 150,000 hours | |
| AC Input | Full Range | |
| Protection | OPP, OVP, UVP, OCP, OTP, SCP | |
| Safety and Environmental | Safety and EMC | cTUVus, TUV, EAC, UkrTEST, Semko, CB , BSMI, CCC, CE, FCC, C-tick |
| Environmental Compliance | Energy Star, RoHS, WEEE, ErP Lot 6, REACH | |
| Warranty | 5 Years | |
Specifications are subject to change without prior notice.
| Packaging information | |
|---|---|
| Units per carton | 5 |
| Individual carton size | 310 (L) x 115 (W) x 180 (H) mm |
| Shipping carton size | 596 (L) x 198 (W) x 335 (H) mm |
| Connector | Connector Count | Lengths |
|---|---|---|
 |
1 | 550 mm - attached |
 |
2 | 4/8 Pin - 550 mm - attached 8 Pin - 550 mm - attached |
 |
4 | 500 + 100 mm - attached 500 + 100 mm - attached |
 |
10 | 400 + 100 + 100 + 100 mm - attached 500 + 100 + 100 + 100 mm - attached 500 + 100 mm - attached |
 |
5 | 400 + 100 + 100 + 100 mm - attached |
 |
1 | 100 mm - attached |
