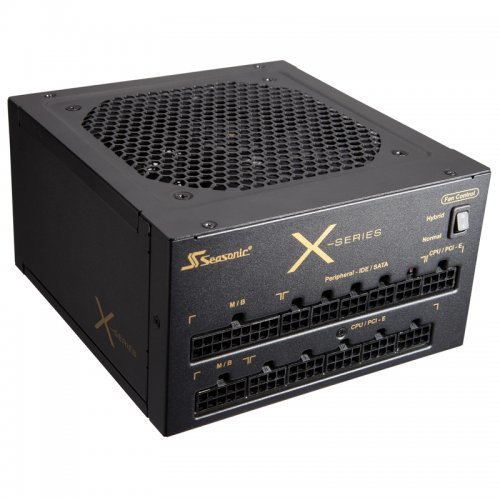

Seasonic X-650 SS-650KM, 650W, 80 Plus Gold

Seasonic X-650 SS-650KM, 650W, 80 Plus Gold

Name: Seasonic X-650 SS-650KM, 650W, 80 Plus Gold
Brand: Seasonic
SKU: X-650
Availability: OutOfStock

Продуктов код: 14797

Захранващи блокове > Seasonic X-650 SS-650KM (снимка 1)

Захранващи блокове > Seasonic X-650 SS-650KM

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос

Производител:

Seasonic

Модел:

X-650

Партиден номер:

SS-650KM

Гаранция:

84 месеца

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

Seasonic X-650

X-Series Datasheet

X-650

This fully modular power supply is an ideal solution for average desktop systems where low energy usage and reduced noise levels are the basic requirements. The highly reliable components built into this power supply assure that this unit is not only an energy saver but will also last a long time. In this manner users can save money by deferring their purchases by not having to buy a new unit for a longer period of time. Ease of installation, cost efficiency and reliability are the key features of this remarkable Seasonic product.

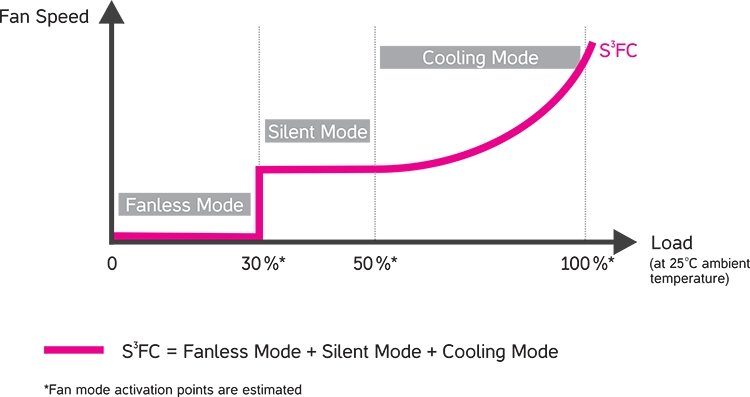

Hybrid Silent fan Control

The industry’s first, Seasonic patented, advanced three-phased thermal control achieves optimal between silence and cooling. This Hybrid Silent Fan Control functions in three operational stages: Fanless Mode, Silent Mode, and Cooling Mode.

Benefits of this design

Reduced noise without increase in temperature;
Extended fan life due to the reduced number of fan rotations;
Optimized heat dissipation at all times;
Unsurpassed silent performance in Fanless Mode.

Additionally, there is a switch at the back of the power supply which allows users to customize their cooling needs by selecting between the Seasonic S2FC (fan control without Fanless Mode) and the S³FC (fan control including Fanless Mode).

Sanyo Denki Fan

The world-renowned Sanyo Denki ball bearing fans are made of the highest quality components to ensure ultra-low noise performance. The fan’s perfect balance and even rotations are achieved via the use of spoon-shaped, high-density plastic fan blades that are finished off with smoothed leading edges. Sanyo Denki fans are known for their strict tolerance ball bearings and precision copper axels. Instead of the industry standard of two balancing points they use three points to strengthen the mount and further stabilize the blade.

105 °C Japanese Capacitor

Premium quality Japanese capacitors with 105 °C rating increase overall reliability and extend product life.

DC to DC Converter Design

The step down DC to DC converter design allows the power supply to be able to serve system components with various voltage needs. Not only is it a flexible, clean voltage conversion solution but it also maximizes the 12 V DC rail output, delivers superior dynamic response and , ultimately, provides for greater system stability.

Tight Voltage Regulation (3 %)

Seasonic’s advanced design is to improve load regulation which reduces voltage variations to provide smooth and stable operations.

X-650
AC Input	Voltage: 100 V - 240 V
	Current: 8.5 - 4 A
	Frequency: 50 Hz - 60 Hz
DC Output	Rail	+3.3 V	+5 V	+12 V	-12 V	+5 VSB
	Maximum Power	25 A	25 A	54 A	0.5 A	3 A
	Maximum Power	125 W		648 W	6 W	15 W
	Total continuous power	650 W

X-650 Technical Specifications
80PLUS^®		Gold
Form Factor		Intel ATX 12 V
Dimensions		150 mm (W) x 160 mm (L) x 86 mm (H)
Fan Information	Fan Size	120 mm
	Fan Control	Seasonic S³FC
	Fan Bearing	Double Ball Bearing
	Life Expectancy	70,000 at 40 °C, 15 % - 65 % R.H.
Cable Information	Modularity	Fully Modular
Cable Information	Cable type	Flat black cables
Electrical Features	Operating Temperature	40 °C
	MTBF @ 25 °C, excl. fan	150,000 hours
	AC Input	Full Range
	Protection	OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental	Safety and EMC	cTUVus, TUV, Gost-R, CB , BSMI, CCC, CE, FCC, C-tick
Safety and Environmental	Environmental Compliance	Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty		7 Years

Packaging information
Units per carton	4
Individual carton size	330 (L) x 130 (W) x 195 (H) mm
Shipping carton size	545 (L) x 215 (W) x 405 (H) mm

Connector	Connector Count	Lengths
	1	610 mm - modular
	2	4/8 Pin - 650 mm- modular 8 Pin - 650 mm- modular
	4	550 + 100 mm - modular 550 + 100 mm - modular
	10	400 + 120 + 120 + 120 mm - modular 400 + 120 + 120 + 120 mm - modular 300 + 120 mm - modular
	5	400 + 120 + 120 mm - modular 300 + 120 mm - modular
	1	101 mm - modular
