Описание
|
Standards and Protocols
|
IEEE802.3, 802.3u, 802.3ab, 802.3x
CSMA/CD, TCP/IP
|
|
Basic Function
|
Wire-speed Performance
|
|
MAC Address Auto-Learning and Auto-aging
|
|
|
IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
|
|
|
Backbound Bandwidth
|
16Gbps
|
|
MAC Address Table
|
4k
|
|
Forwarding Rate
|
10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port
1000BASE-T: 1488000pps/port
|
|
Transmission Method
|
Store-and-Forward
|
|

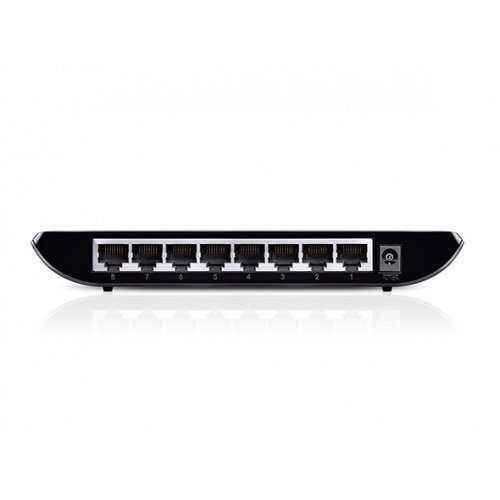

Ports
|
8 10/100/1000Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)
|
|
Network Media
|
10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ù STP (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ù STP (maximum 100m)
1000Base-T: UTP category 5, 5e cable (maximum 100m)
|
|

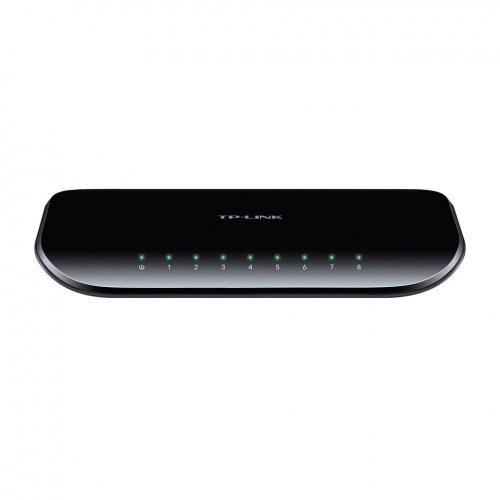

LED Indicators
|
Power, 10/100M, 1000M
|
|
Safety & Emission
|
FCC, CE
|
|
Dimensions (W*D*H)
|
7.9*5.5*1.1 in. (200*140*28 mm)
|
|
Environment
|
Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
|
Power
|
External Power Adapter
|
