Описание

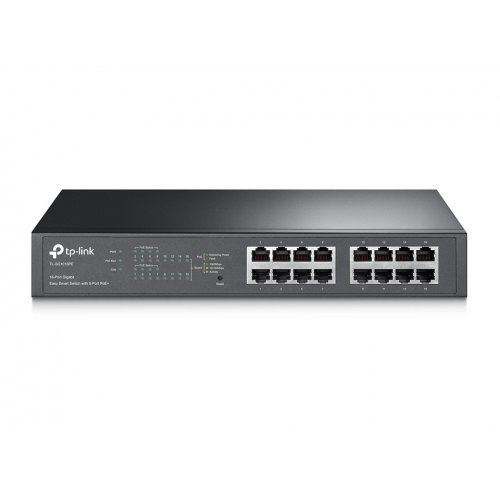

16-Port Gigabit Easy Smart PoE Switch with 8-Port PoE+TL-SG1016PE
- 16 10/100/1000Mbps RJ45 ports
- Equipped with 8 PoE+ supported ports to transfer data and power over a single cable
- Works with IEEE 802.3af/at compliant devices, expanding home and office networks
- Innovative energy-efficient technology reduces power output by up to 75%*
- Plug and play design, no configuration required
*Actual data may vary in different usage environment.
Learn more about TP-LINK PoE technology >
What This Product Does
How This Product Works
8 ports of TL-SG1016PE support Power over Ethernet Plus (PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). In this situation, the electrical power is transmitted along with data in a single cable, allowing you to expand your network where there are electrical cables or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones.
Overload Arrangement
TL-SG1016PE has a priority function which helps protect the system when its power is overloaded. If all PoE+ devices’ power consumption is greater than or equal to 110W, a priority will be arranged among the 16 PoE+ ports, at which point the system will cut off the power of the lowest-priority port.
Port Priority Function
*Priority (port 1>port 2>port 3>port 4> port 5>port 6>port 7>port 8): This function will help protect the system if the system power becomes overloaded. For example, Port 1, 2, 3, 4, and 5 are using 30w (maximum power per port is 30W), the system power is 110w in total (PoE max LED will be green if all PoE PDs power consumption is >= 110W). If there is an additional PD inserted to Port 4 with 20w then the system will cut off Port 5 to protect the system, this means Port 1, 2 ,3, will use 90w, and Port 4 will use 20w, and no power will be supplied to Port 5.
| ХАРДУЕРНИ ХАРАКТЕРИСТИКИ | |
| Стандарти и протоколи | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
| Интерфейс | 16 10/100/1000Mbps RJ45 Ports |
| AUTO Negotiation/AUTO MDI/MDIX | |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) |
| EIA/TIA-568 100Ω STP (maximum 100m) | |
| 100BASE-TX: UTP category 5, 5e cable (maximum 100m) | |
| EIA/TIA-568 100Ω STP (maximum 100m) | |
| 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) | |
| EIA/TIA-568 100Ω STP (maximum 100m) | |
| Fan Quantity | 1 |
| Захранване | 100-240VAC, 50/60Hz |
| Консумирана енергия | Maximum (PoE on): 124.4W (220V/50Hz) |
| Maximum (PoE off): 14.4W (220V/50Hz) | |
| PoE+ Ports(RJ45) | 8 Ports |
| PoE Ports (RJ45) | Standard: 802.3 at compliant |
| PoE Ports: Port 1- Port 8 | |
| PoE Power Budget: 110W | |
| Backbound Bandwidth | 32 Gbps |
| Mac Address Table | 8K |
| Buffer Size | 1.5 Mbits |
| Размери (Ш x Д x В ) | 11.6*7.1*1.7 in. (294*180*44 mm) |
| PERFORMANCE | |
| Switching Capacity | 32Gbps |
| Packet Forwarding Rate | 23.8Mbps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1Mbit |
| Jumbo Frame | 9KB |
| СОФТУЕРНИ ХАРАКТЕРИСТИКИ | |
| Качество на услугата | Support Port-Based/802.1p/DSCP priority |
| Support 4 priority queues | |
| Rate Limit | |
| Storm Control | |
| L2 Features | IGMP Snooping V1/V2/V3 |
| Link Aggregation | |
| Port Mirroring | |
| Cable Diagnostics | |
| Loop Prevention | |
| VLAN | Supports up to 128 VLANs simultaneously (out of 4K VLAN IDs) |
| MTU/Port/Tag VLAN | |
| Управление | Web-based GUI |
| Easy Smart Configuration Utility | |
| Transfer Method | Store-And-Forward |
| Transmission Method | Store-And-Forward |
| Разширени функции | Compatible With IEEE 802.3af/at Compliant PDs |
| Priority Function | |
| Mac Address Auto-Learning And Auto-Aging | |
| IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure For Half-Duplex Mode | |
| ДРУГИ | |
| Сертификати | FCC, CE, RoHS |
| Съдържание на пакета | TL-SG1016PE |
| Power Cord | |
| Installation Guide | |
| Rackmount Kit | |
| Rubber Feet | |
| Системни изисквания | Microsoft® Windows® for running Utility |
| Consumption | 9.5 watts (max. no PD connected) |
| 140.1 watts (max. with 126w PD connected) | |
| Околна среда | Operating Temperature: 0℃~40℃ (32℉~104℉) |
| Storage Temperature: -40℃~70℃ (-40℉~158℉) | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
