Дънна платка Asus ROG STRIX B760-F GAM WIFI

Name: Дънна платка Asus ROG STRIX B760-F GAM WIFI
Brand: Asus
SKU: ROG STRIX B760-F GAM WIFI
Availability: OutOfStock

Продуктов код: 85476

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос

Производител:

Asus

Модел:

ROG STRIX B760-F GAM WIFI

Партиден номер:

ROG STRIX B760-F GAM WIFI

M.2 порт:

Да

Предназначение:

Десктоп, За игри

Чипсет:

Intel B760

Брой слотове за памет:

RAM - поколение:

DDR5

Socket:

Intel LGA1700

Form Factor:

ATX

Видео изходи:

DisplayPort, HDMI

Wi-Fi свързаност:

Да

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

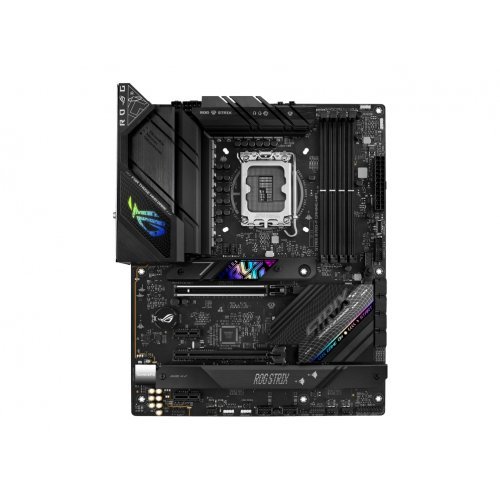

Asus ROG STRIX B760-F GAM WIFI

CPUs supported: Intel Socket LGA1700 for 13th Gen Intel Core Processors 12th Gen Intel Core, Pentium Gold and Celeron Processor;
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0;

Memory type: 4 x DIMM, Max. 192GB, DDR5 7800OC7000OC6800OC6600OC6400OC6200OC6000OC5800OC56005400520050004800 MHz Non-ECC, Un-buffered Memory;
Dual Channel Memory Architecture;
Supports Intel Extreme Memory Profile XMP;
OptiMem II;

Expansion Slots: Intel 13th 12th Gen Processors;
1 x PCIe 5.0x16 slot supports x16 mode;
Intel B760 Chipset;
1 x PCIe 3.0 x16 slot supports x4 mode;
2 x PCIe 3.0 x1 slot;

Storage: Total supports 3 x M.2 slots and 4 x SATA 6Gbs ports;
Intel 13th 12th Gen Processor;
M.2_1 slot Key M, type 224222602280 supports PCIe 4.0 x4 mode;
Intel B760 Chipset ;
M.2_2 slot Key M, type 22422260228022110 supports PCIe 4.0 x4 ;
M.2_3 slot Key M, type 224222602280 supports PCIe 4.0 x4 ;
4 x SATA 6Gbs port;

IO: 1 x USB 3.2 Gen 2x2 port 1 x USB Type-C;
1 x USB 3.2 Gen 2 port 1 x Type-A;
6 x USB 3.2 Gen 1 ports 6 x Type-A;
1 x DisplayPort;
1 x HDMI port;
1 x Wi-Fi Module;
1 x Intel 2.5Gb Ethernet port;
5 x Audio jacks ;
1 x Optical SPDIF out port;
1 x BIOS FlashBack button ;
1 x Clear CMOS button;

Connectors: 1 x 4-pin CPU Fan header;
1 x 4-pin CPU OPT Fan header;
1 x 4-pin AIO Pump header;
4 x 4-pin Chassis Fan header;
1 x 24-pin Main Power connector;
1 x 8-pin +12V Power connector;
1 x 4-pin +12V Power connector;
3 x M.2 slots Key M ;
4 x SATA 6Gbs port;
1 x USB 3.2 Gen 2 connector supports USB Type-C ;
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 port;
2 x USB 2.0 headers support 4 additional USB 2.0 port;
3 x Addressable Gen 2 header;
1 x Aura RGB header;
1 x Front Panel Audio header AAFP;
1 x 20-3 pin System Panel header with Chassis intrude function;
1 x Thermal Sensor header;
1 xThunderbolt USB4 header;

Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080;
- Impedance sense for front and rear headphone output;
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking;
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input;
- Supports up to 32-Bit384 kHz playback;
Audio Features ;
- SupremeFX Shielding Technology;
- Savitech SV3H712 AMP ;
- Rear optical SPDIF out port ;
- Premium audio capacitor;
- Audio cover;
