Захранващ блок Be Quiet! TFX Power 2 300W BN228, 80 Plus Bronze
Продуктов код: 25742
Все още няма оценка за продукта.Напиши ревю | Задай въпрос
Производител:
Be Quiet!
Модел:
TFX Power 2
Партиден номер:
BN228
Гаранция:
24 месеца
Продуктът не се предлага в момента
Попитайте за дата на доставка:
(+359 2) 965 89 89
Цени за доставка:
- Безплатна доставка при поръчки над 99.99 лв.
- 8.40 лв. за доставка при поръчки до 99.99 лв.
- Всички поръчки могат да бъдат взети от офиса на JMT в гр. София, ж.к. Дианабад.
Условия и срокове за доставка:
- Поръчките се обработват и изпращат само в официални работни дни.
- Изпращането на пратка с куриер става по възможност в деня на получаването на поръчката или в най-близкия работен ден.
- Стандартният срок за доставка е до 3 работни дни в зависимост от графика на обслужване на съответната куриерска компания.

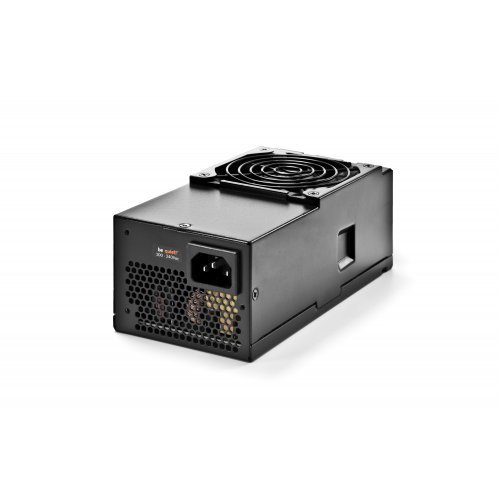

Be Quiet! TFX Power 2
- Strong dual 12V-rail design supports high stability and a PCIe connector for peripherals that need more power, like a PCIe graphics card
- 300 watts of continuous power provide strong reserves to ensure steady operation even when your PC meets an unexpectedly heavy load
- 80PLUS Bronze certification and up to 87% power conversion efficiency let you use the provided energy more efficiently and reduces your power bills
- Product conception, design and quality control in Germany
Energy Efficiency
- 80PLUS Bronze certification independently verifies the high operating efficiency (up to 87%) of this design
- High efficiency means cost savings, because your PC draws less power from the mains. It also means less wasted heat, less cooling required and an overall quieter operation
- Standby drain of less than 0.25 watts
- Meets Energy Star 6.0 guidelines
- Fulfills ErP 2014 guidelines
- Zero Load design and support of Intel’s Deep Power Down C6/C7 mode
Engineering
- Use of the latest technology ensures premium performance and reliability
- Supports the latest Intel® and AMD™ CPUs
- Dual independent 12V-rails improve power signal stability
- Full suite of top safety protections defends against over-currents, over- and under-voltages, short circuits, and overloads, thus safeguarding your valuable components
Low-Noise Operation

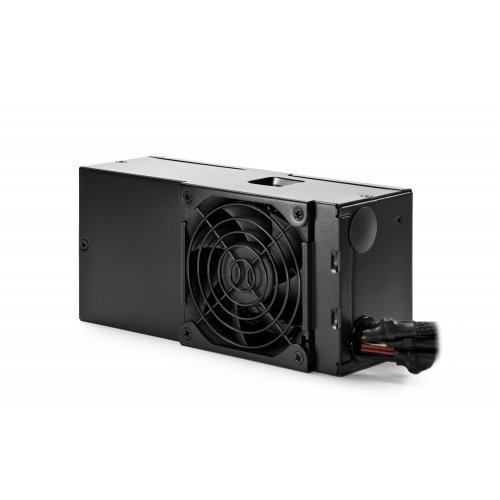

- An automatically temperature-regulated 80mm high-quality fan
- Assured balance between cooling performance and quiet operation
Highly Compatible and Convenient

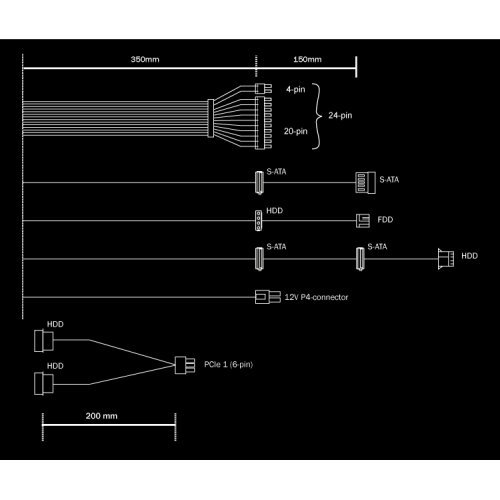

- Sleeved cable lengths up to 65cm offer improved cooling and are perfect for mini PC cases
- Features 10 connectors for flexible system builds
- Connectors are compatible with older components as well as those still on the drawing board
- PCIe connector supports discrete graphics card
- Clearly labeled plugs enable simple installation
Product Conception, Design and Quality Control in Germany
- 2-year warranty
- Quick support is available via our international hotline,
Mondays to Fridays from 9:00 am to 5:30 pm German local time: +49 (0) 40-736 76 86 - 98
| Model | TFX Power 2 300W Bronze |
| Continuous power (W) | 300 |
| Peak power (W) | 330 |
| Form factor ATX 12V | TFX 12V Version 2.4 |
| Form factor EPS 12V | - |
| Modular cable management | - |
| Topology | - |
| Voltage (Vac) | 100 - 240 |
| Frequency (Hz) | 50 - 60 |
| Input current (A) | 4 / 2 |
| PFC | active |
| Power factor at 100% load | >0.97 |
| Compliant to Intel C6/C7 | ✓ |
| Power consumption in standby (W) | <0.15 |
| Average life time (h / 25°C) | 100.000 |
| Operating temperature up to (°C) | 40 |
Output
| 12V rails (multi-rail operation) | 2 |
| 12V single rail operation | - |
| Overclocking key | - |
| +3.3V (A) | 21 |
| +5V (A) | 15 |
| +12V1 (A) | 13 |
| +12V2 (A) | 13 |
| +12V3 (A) | - |
| +12V4 (A) | - |
| +12V5 (A) | - |
| +12V6 (A) | - |
| -12V (A) | 0.3 |
| +5Vsb (A) | 2 |
| Max. combined power 12V (W) | 264 |
| Max. combined power 3.3V + 5V (W) | 103 |
| Hold-up time (ms @ 100%) | >16 |
Fan / Cooling technology
| Fan type | high-quality fan |
| +SilentWings | - |
| Motor technology | 4-pole fan motor |
| Bearing technology | Sleeve |
| Fan size (mm) | 80 |
| Max. fan speed (rpm), temperature-dependent | 2,003 |
| Temperature control for case fans | ✓ |
| dB(A) at 20% load | 11.7 |
| dB(A) at 50% load | 14.6 |
| dB(A) at 100% load | 31.4 |
Protection
| OCP (over current protection) | ✓ |
| OVP (over voltage protection) | ✓ |
| UVP (under voltage protection) | ✓ |
| SCP (short circuit protection) | ✓ |
| OTP (over temperature protection) | - |
| OPP (over power protection) | ✓ |
Safety certification
| CE | ✓ |
| CB | ✓ |
| TÜV | ✓ |
