Суич CISCO C8300-2N2S-6T Platform Selection for DNA

Name: Суич CISCO C8300-2N2S-6T Platform Selection for DNA
Brand: Cisco
SKU: C8300-2N2S-6T
Availability: OutOfStock

Продуктов код: 65041

Все още няма оценка за продукта.
Напиши ревю | Задай въпрос

Производител:

Cisco

Модел:

C8300-2N2S-6T

Партиден номер:

C8300-2N2S-6T

Гаранция:

12 месеца

Брой портове:

Максимална скорост по LAN:

1 Gbps

Продуктът не се предлага в момента

Попитайте за дата на доставка:
(+359 2) 965 89 89

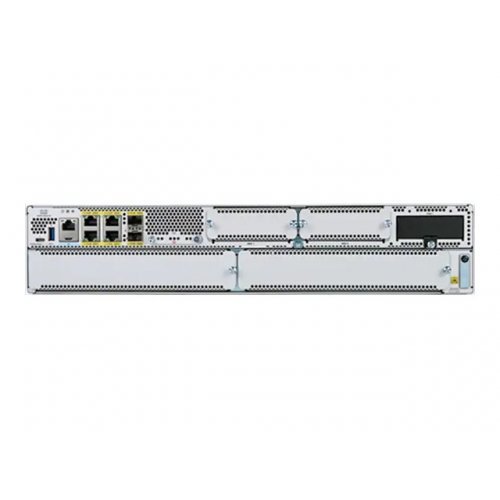

Cisco C8300-2N2S-6T

Производител :	CISCO
Продуктов номер на производителя :	C8300-2N2S-6T
Продуктов номер:	4375716

Описание
Cisco Catalyst 8300 series Edge Platforms (Catalyst 8300) with Cisco IOS XE SD-WAN Software deliver Cisco's secure, cloud-scale SD-WAN solution for the branch. The Catalyst 8300 series is purpose-built for high performance and integrated SD-WAN Services along with flexibility to deliver security and networking services together from the cloud or on premises. It provides higher WAN port density and a redundant power supply capability. Catalyst 8300 series Edge Platforms also come with Trustworthy Solutions 2.0 infrastructure that secures the platforms against threats and vulnerabilities with integrity verification and remediation of threats. The Catalyst 8300 series Edge Platforms are well suited for medium-sized and large enterprise branch offices for high WAN IPSec performance with integrated SD-WAN services.
ключови търговски точки/предимства
Intel x86 CPU with 8-GB memory default High-performance multicore processors support high-speed WAN connections Dynamic core allocation architecture that can leverage data plane cores for I/O and service plane as per-user configuration Increases scalability for IPSec throughput needs for medium- and large-sized branches SSL and crypto hardware acceleration Hardware-anchored Secure Boot and Secure Unique Device Identification (SUDI) support for Plug-and-Play to verify the identity of the hardware and software
продукт:
Име на продукта:	CISCO C8300-2N2S-6T Platform Selection for DNA
Описание :	Cisco Catalyst 8300-2N2S-6T - Router - GigE - rack-mountable
EAN:

General
Device Type:	Router
Enclosure Type:	Rack-mountable - 2U
Connectivity Technology:	Wired
Data Link Protocol:	Gigabit Ethernet
Performance:	SD-WAN IPsec throughput (1400Bytes, clear text): up to 1.9 Gbps SD-WAN IPsec throughput (IMIX, clear text): 1.75 Gbps IPv4 forwarding throughput (1400-byte packet size): 19.7 Gbps IPsec throughput (1400Bytes, clear text): up to 1.9 Gbps
Capacity:	SD-WAN overlay tunnels scale: 6000 IPsec SVTI tunnels: 4000 ACL: 4000 Access Control Entries (ACEs) per system (IPv4): 72000 IPv4 routes: 1600000 IPv6 routes: 1500000 Queues: 16000 NAT sessions: 1200000 Firewall sessions: 512000 Virtual Routing and Forwarding (VRF) entries: 4000
Network / Transport Protocol:	RSVP, NTP, IPSec, PPPoE, DHCP, DNS, L2TPv3, RTP, RTCP, IPv4, IPv6
Routing Protocol:	OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, OSPFv3, PIM-SSM, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), RSVP, LISP
Remote Management Protocol:	SNMP, SSH, CLI, SCP, NETCONF, NTP, DHCP, RADIUS, OMP
Encryption Algorithm:	DES, Triple DES, SHA, MD5, IKE, SSL, TLS, SHA-1, PKI, 128-bit AES, 256-bit AES, SHA-2, DTLS, 1024-bit RSA, 2048-bit RSA, 256-bit SHA, 256-bit AES-GCM, 256-bit AES-CBC, 512-bit SHA, ESP, 748-bit RSA, 384-bit SHA, ECDSA 256-bit, ECDSA 384-bit, HMAC
Authentication Method:	Secure Shell (SSH), RADIUS
Features:	Firewall protection, NAT support, PAT support, Syslog support, Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Access Control List (ACL) support, Quality of Service (QoS), DHCP server, NTP server, DHCP client, Forward Error Correction (FEC), IPFIX, Call Admission Control (CAC), Flexible NetFlow (FNF), Application Visibility and Control (AVC), Authentication, Authorization and Accounting (AAA), DNS client, Encapsulated Remote SPAN (ERSPAN), Embedded Event Manager (EEM), Ethernet Virtual Connections (EVC), Cisco IOS IP Service-Level Agreements (IPSLA), Network-Based Application Recognition (NBAR), Point-to-Point Protocol (PPP), High-Level Data Link Control (HDLC), Multilink Point-to-Point Protocol (MLPPP), Multilink Frame Relay (MLFR), Performance Routing (PfR), SD-WAN support, Cisco Unified Access Data Plane (UADP), Application Aware Routing (AAR), Interactive Voice Response (IVR), Service Advertisement Framework (SAF), Secure Unique Device Identification (SUDI)
Compliant Standards:	IEEE 802.1Q, IEEE 802.3ah, IEEE 802.1ag, EN 61000-3-2, IEC 61000-3-2, IEC 61000-3-3, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, FDA, FCC CFR47 Part 15 B Class A, CNS 13438 Class A, EN 300 386, KN35, IEC/EN 61000-4-3, IEC/EN 61000-4-4, IEC/EN 61000-4-5, IEC/EN 61000-4-6, IEC/EN 61000-4-8, AS/NZS CISPR 32 Class A, KN32 Class A, IEC/EN 61000-4-11, IEC/EN 61000-4-2, EN 55032 Class A, EN 55032, CISPR 32 Class A, EN 55035, IEC/EN 60825, CAN/CSA C22.2 No. 60950-1
Processor:	Intel
RAM:	8 GB (installed) / 32 GB (max)
Flash Memory:	8 GB
Hard Drive:	16 GB
IP Telephony
VoIP Protocols:	SIP, SRTP
Expansion / Connectivity
Interfaces:	WAN / LAN: 6 x 1000Base-T USB: 1 x
Expansion Slots:	2 (total) / 2 (free) x service module (SM) 2 (total) / 2 (free) x NIM 1 (total) / 1 (free) x Pluggable Interface Module (PIM)
Installed Modules Qty (Max):	0 (installed) / 5 (max)
Power
Power Device:	Internal power supply
Miscellaneous
MTBF:	710,300 hours
Software / System Requirements
OS Required:	Cisco IOS XE 17.3.2
Dimensions & Weight
Width:	43.8 cm
Depth:	47 cm
Height:	8.89 cm
Weight:	18.1 kg
Environmental Parameters
Min Operating Temperature:	0 °C
Max Operating Temperature:	40 °C
Humidity Range Operating:	5 - 85% (non-condensing)
